Tarot Stirling engine model ST001
| Part No.: | ST001 |
| Manufacturer: | TAROT |
Send to a friend
Features
Engine body with large capacity boiler design, with the alcohol lamp, a continuous dosing for 30 minutes working time. Steam passage and a bottom one-piece design, safe and sustainable. Flywheel, cylinder power, the power piston brass H59 material; boiler, floor, even as the lever 6061 aluminum alloy material, the surface after oxidation treatment, long-term does not change color; other parts made of stainless steel SUS304; axle joints miniature bearings.
Product Details
Instructions for use:
1. The engine model in a horizontal position;
2. Gently turn the flywheel to check the flywheel rotate smoothly;
3. into the kerosene lamp, add a little alcohol, do not install too full, confirmed under the premise of safety, ignited alcohol;
4. The alcohol lamp slowly moved to the bottom of the heated end of the engine model;
5. After heating for 30 seconds, the hand began to gently struck the flywheel until the flywheel can automatically rotate so far;
6. The whole process of heating, hand must not touch the heated end and boiler (hot dangerous!)
Product parameters:

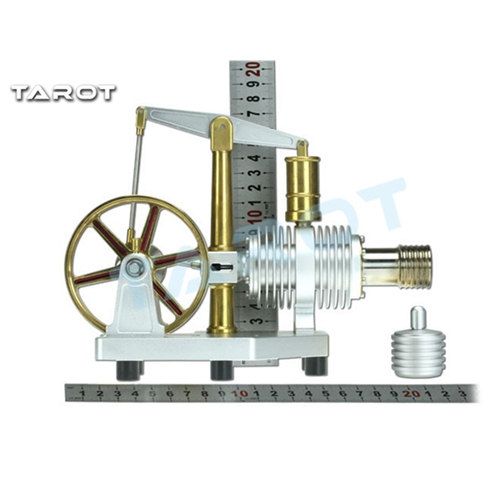

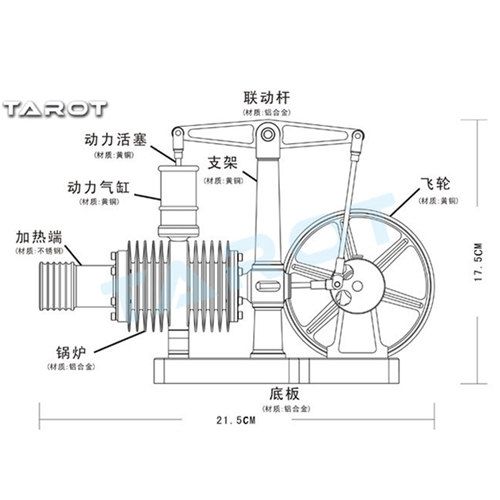

Machine: L * W * H 21.5CM * 11.5CM * 17.5CM
Flywheel: Diameter 90MM
Boilers: diameter 55MM, long 71MM

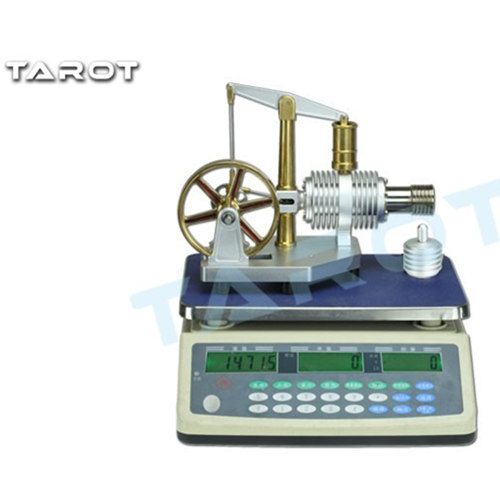

Weight: 1471.5G
1. The engine model in a horizontal position;
2. Gently turn the flywheel to check the flywheel rotate smoothly;
3. into the kerosene lamp, add a little alcohol, do not install too full, confirmed under the premise of safety, ignited alcohol;
4. The alcohol lamp slowly moved to the bottom of the heated end of the engine model;
5. After heating for 30 seconds, the hand began to gently struck the flywheel until the flywheel can automatically rotate so far;
6. The whole process of heating, hand must not touch the heated end and boiler (hot dangerous!)
Product parameters:
Machine: L * W * H 21.5CM * 11.5CM * 17.5CM
Flywheel: Diameter 90MM
Boilers: diameter 55MM, long 71MM
Weight: 1471.5G
Item Packing
Engine 21.5CM * 11.5CM * 17.5CM × 1

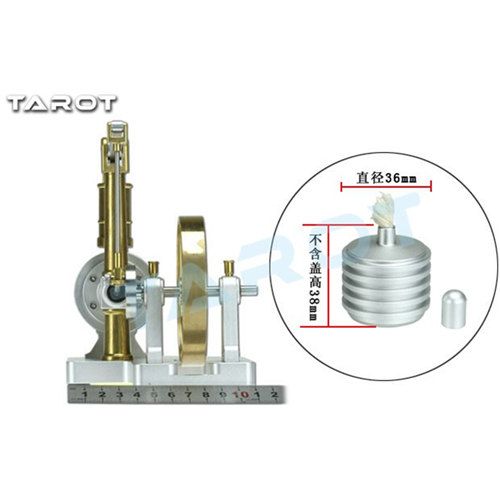

Alcohol lamp 36MM * 38MM × 1
Alcohol lamp 36MM * 38MM × 1
Detailed Images
