NEW HOBBYWING Tunalyzer Multifunctional Motor Tester 2-4S Lipo For Measure motor Current Kv value Rpm
| Part No.: | HW-TESTER |
| Manufacturer: | Hobbywing |
Send to a friend
Features
NEW HOBBYWING Tunalyzer Multifunctional Motor Tester 2-4S Lipo For Measure motor Current Kv value Rpm
Product Details
Input Voltage：6-16.8V(2-4S Lipo)
Maximum test current：18A
Motor Type：Sensored&Sensorless Brushless Motor
Size：122.8 x 64.6 x 39mm(with knob height)
Weight：144g
Display：LCD color touch screen
Function
1) Measure motor Current / Kv value/Rpm, End-bell timing / Deviation, Rotor asymmetry,
Hall signal deviation and motor temperature.
2) Set and upgrade the esc (which can support the OTA Bluetooth module)
Maximum test current：18A
Motor Type：Sensored&Sensorless Brushless Motor
Size：122.8 x 64.6 x 39mm(with knob height)
Weight：144g
Display：LCD color touch screen
Function
1) Measure motor Current / Kv value/Rpm, End-bell timing / Deviation, Rotor asymmetry,
Hall signal deviation and motor temperature.
2) Set and upgrade the esc (which can support the OTA Bluetooth module)
Item Packing
Tunalyzer x 1

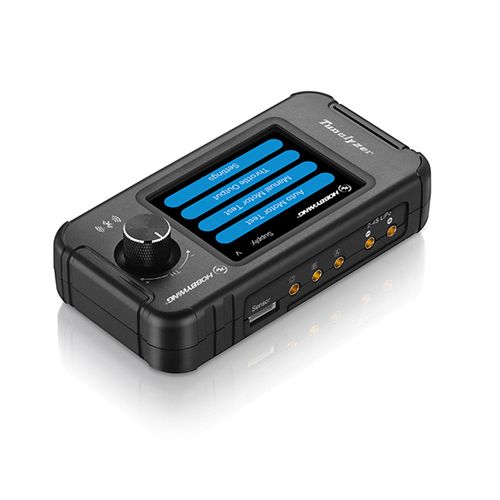

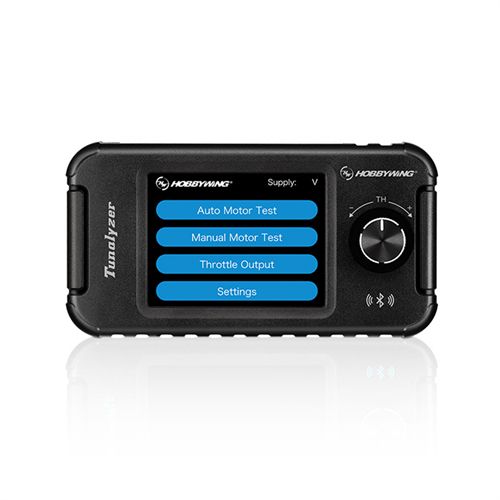

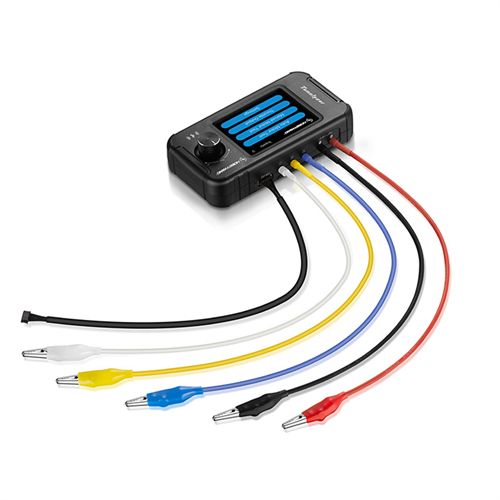

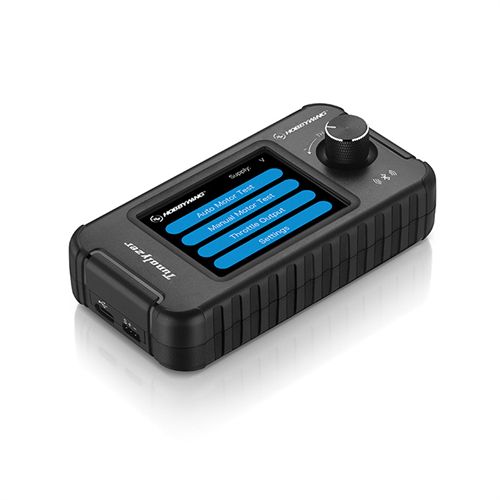

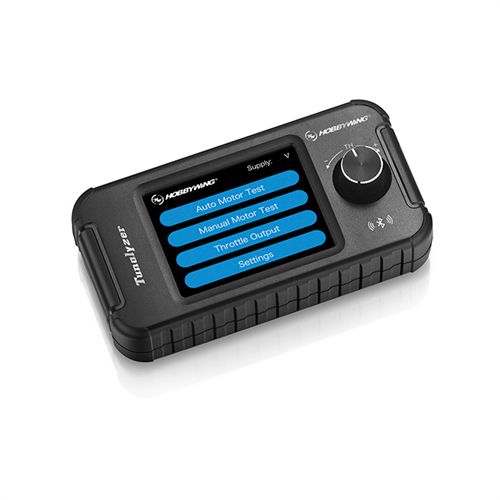

Detailed Images
