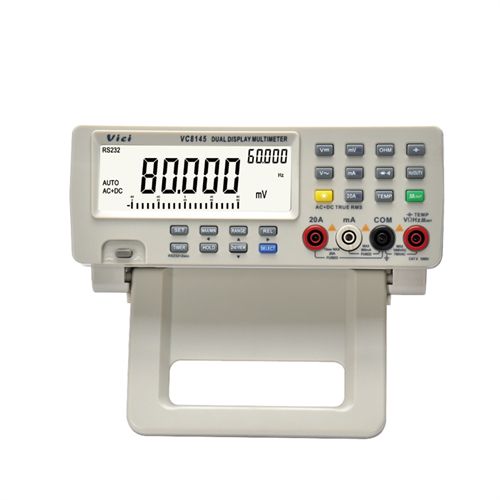

Professional VICHY VC8145 DMM Digital Bench Multimeter Temperature Meter Teste

Part No.:	VC-8145
Manufacturer:	Feixiang

Send to a friend

Features

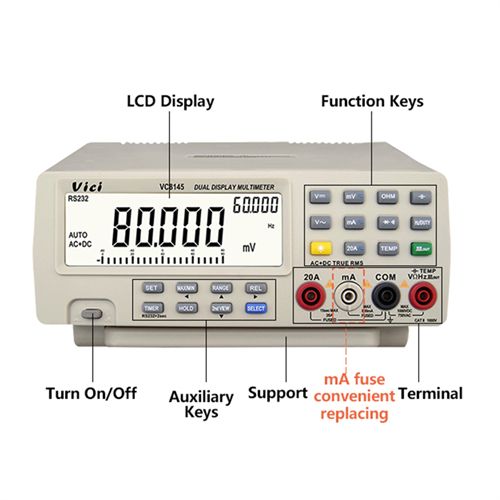

1,Large LCD,High contrast,Wide visual angle LCD display,white backlight;
2,Dual-display:Main display 80000,Vice-display 80000,analog bar 21 sect.,unit,function symbol complete;
3,50 kinds of measuring function,With basicly DCV,ACV,DCA,ACA,Ω,CAP,Hz,TEMP,diode and Continuity measuring function etc;
4,Frequency measuring can rearch 80MHz;
5,Standard function generator:18 kinds of frequency,1%-99% Duty cycle,1800 pcs wave output;
6,Single analyzed:(AC+DC) measuring synchronous,(AC+Hz) measuring synchronous,(DC+dBm) measuring synchronous,(dBm+Hz) measuring synchronous,(Hz+Duty) measuring synchronous,(°C+°F) displaying synchronous;
7,Resistance measuring: 0.01Ω-80MΩ;
8,Capacitance measuring: 10nF-100μF;
9,Temperature measuring: -50°C-1372°C,-58°F-2502°F;
10,dBm measuring: 20pcs load Resistance choice;
11,Auto data refurbish hold;
12,positive,negative peak data auto hold;
13,36 hours dynamic record: MAX,MIN,AVG,MAX-MIN;
14,Relative measuring: REL Relative percent: REL%;
15,0.1%-99.9%pulse duty cycle measuring;
16,Set upper limit,lower limit area measuring;
17,photoelectricity insulation RS-232 computer interface;
18,Timing measuring function;
19,AC measuring adopt High accuracy RMS,Widely measuring and AC+DC function,can measuring the accuracy virtual value of AC by any wave.

Product Details

Technical:

Basic function	Range	Accuracy
DCV	80mV/800mV/8V/80V/800V/1000V	±(0.05%+5)
ACV	80mV/800mV/8V/80V/750V	±(0.5%+30)
DCA	80mA/800mA/8A/20A	±(0.1%+5)
ACA	80mA/800mA/8A/20A	±(0.5%+30)
Resistance	800Ω/8kΩ/80kΩ/800kΩ/8MΩ/80MΩ	±(0.05%+3)
Frequency	80Hz/800Hz/8kHz/80kHz/800kHz/8MHz/80MHz	±(0.05%+2)
Capacitance	10nF/100nF/1uF/10uF/100uF	±(3.5%+20)
Temperature	-50°C~1372°C / -58°F~2502°F	±(1.5%+1°)
Quadrate Wave	3V / 0.5Hz~5kHz / 1%~99%	±0.05%

Feature	VC8145
Diode	√
AC+DC measuring	√
Continuity test	√
Overloading protection	√
Input Impedance	10MΩ
Sampling frequency	4times/sec. Analog bar40 times/sec.
AC frequency response	40Hz-50kHz
Operation way	Auto range
Max display	80000

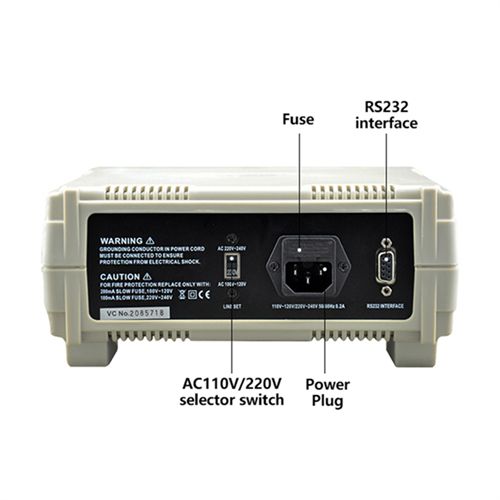

Computer interface	photoelectricity insulation RS-232
Power	AC220V/110V 50Hz/60Hz

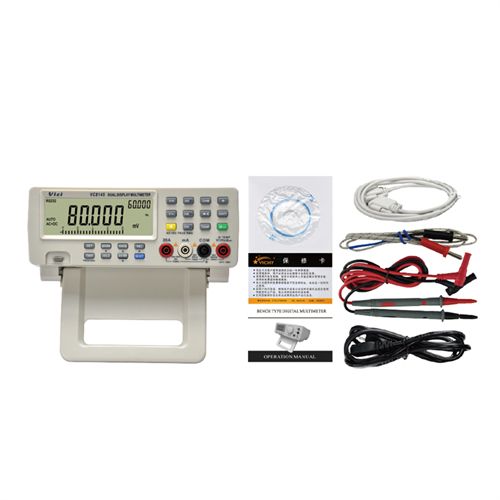

Item Packing

1 x VC8145 Digital Bench Top Multimeter
1 x Pair Test Leads
1 x Type K Thermocouple
1 x Software CD
1 x RS-232 Cable
1 x AC Power Cord
1 x Instruction Manual
