Digital LCD Display DC 0-60V 0-100A power watt meter battery checker
| Part No.: | BT-041 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Digital meter / digital power meter / digital panel meter
1) Multi function [check min. voltage (V), amps (A), power (W), energy (Wh) & charge (Ah)]
2) Professional battery tester
3) High quality, competitive price
1) Multi function [check min. voltage (V), amps (A), power (W), energy (Wh) & charge (Ah)]
2) Professional battery tester
3) High quality, competitive price
Product Details
Input Power: Max. 60.0V (Both on watt-meter and battery checker)
Max. Current: 100A
Min. Operating voltage: 7.2V
Current consumption: 20mA at battery checker program
|
Parameter |
Range |
Resolution |
Notes |
|
Voltage |
0* - 60 V |
0.01 V |
*0 V min. w/ auxiliary power. E.g. Separately battery. Else 7.0V. |
|
Current |
0 -100 A peak |
0.01 A |
50 A continuous |
|
Power |
0 - 6554 W |
0.1 W |
|
|
Charge |
0 - 65 Ah |
0.001 Ah |
|
|
Energy |
0 - 6554 Wh |
0.1 Wh |
Table 2 Miscellaneous Specifications
|
Parameter |
Value |
Notes |
|
Measurement Update Period |
400 mS |
|
|
Signal Sampling Rate |
samples/s |
|
|
Data Queue Sequence time |
2 seconds |
|
|
In Circuit Resistance |
0.001 Ohms |
|
|
Operation Current |
7 mA |
|
|
Auxiliary Power Voltage |
7.0 V - 60 V |
e.g. from a separately battery |
|
Dimensions |
85mm(L) x 50mm(W) x 20mm(D) |
|
|
Weight |
2.3 oz. |
1.7 oz. without case |
|
Display Screen |
16 character x 2 row STN LCD |
|
|
Nominal Operating Conditions |
0°- 50 ambient temperature, non condensing humidity |
Maximum temperature must be reduced at maximum current rating |
Item Packing
1 x multi function watt meter
1 x power cord (for separately battery)
1 x manual

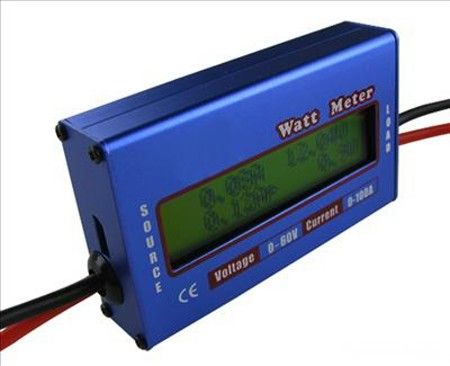

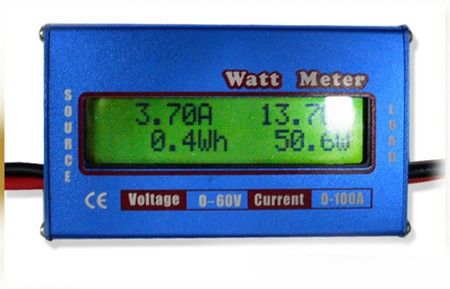

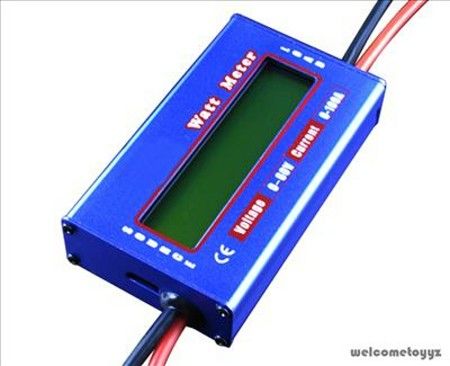

Detailed Images
