AOKoda AOK-041 1S Lithium Battery Tester Checker For JST MOLEX mCPX MCX Plug Battery
| Part No.: | AOK-041 |
| Manufacturer: | Feixiang |
Send to a friend
Features
- Support four standard micro UAV battery interface, plug and play
- Supporting ports JST(2.54mm), MOLEX(2.0mm), mCPX(2.0mm), MCX(1.25mm)
- Support lithium battery LiFe(3.3/3.65V),LiPo (3.7/4.20V),Li-Hv(3.8/4.35V)
- Four battery interfaces support battery polarity reverse connection protection,
- Four battery interfaces are supported LiFe,LiPo,LiHv
- 0.36 inches red digital tube display, display battery voltage, battery voltage detection accuracy is accurate to 10mV
- Supporting ports JST(2.54mm), MOLEX(2.0mm), mCPX(2.0mm), MCX(1.25mm)
- Support lithium battery LiFe(3.3/3.65V),LiPo (3.7/4.20V),Li-Hv(3.8/4.35V)
- Four battery interfaces support battery polarity reverse connection protection,
- Four battery interfaces are supported LiFe,LiPo,LiHv
- 0.36 inches red digital tube display, display battery voltage, battery voltage detection accuracy is accurate to 10mV
Product Details
1.Support battery section: 1Cell
2.Voltage detector power: 0.05 W
3.Support battery type: LiFe 3.3V/LiPo 3.7V / Li-Hv 3.8V
4.Battery voltage input range: 2.50~4.35V @1Cell LiFe, LiPo, Li-Hv
5.Detection accuracy of voltage: 3.65V±0.01V, 4.20V±0.01V, 4.35V±0.01V
6.Voltage display: 0.36 inches red digital tube display, static display, unit V
7.Battery interface: JST(2.54mm), MOLEX(2.0mm), mCPX(2.0mm), MCX(1.25mm)
8.Product dimensions: 43x23x15mm
9.Product weight: 10g
2.Voltage detector power: 0.05 W
3.Support battery type: LiFe 3.3V/LiPo 3.7V / Li-Hv 3.8V
4.Battery voltage input range: 2.50~4.35V @1Cell LiFe, LiPo, Li-Hv
5.Detection accuracy of voltage: 3.65V±0.01V, 4.20V±0.01V, 4.35V±0.01V
6.Voltage display: 0.36 inches red digital tube display, static display, unit V
7.Battery interface: JST(2.54mm), MOLEX(2.0mm), mCPX(2.0mm), MCX(1.25mm)
8.Product dimensions: 43x23x15mm
9.Product weight: 10g
Item Packing
1x AOKoda AOK-041 Battery Tester

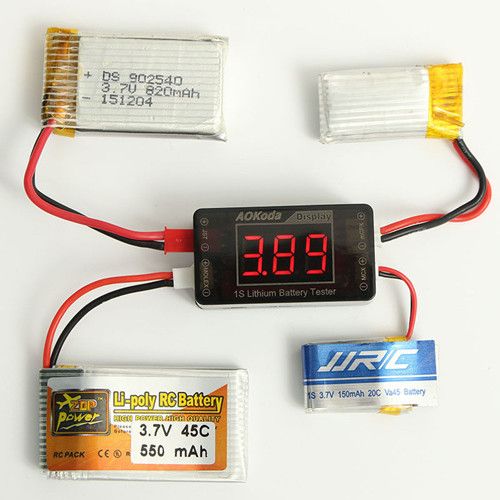

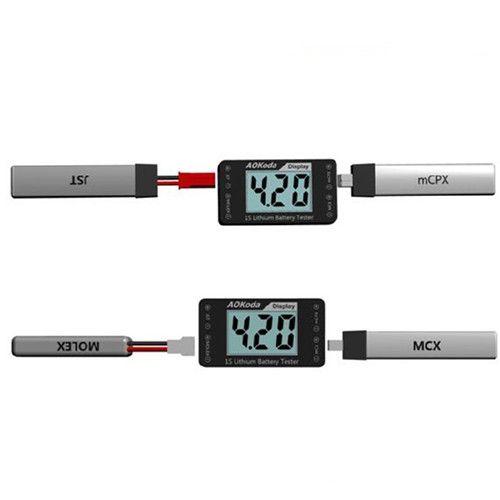

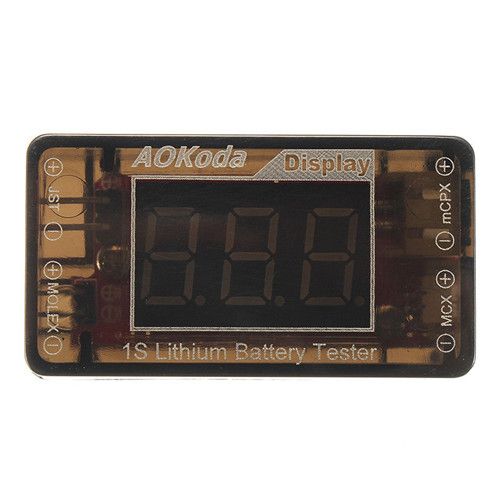

Detailed Images
