Mini Power DP Pro 9 Channels Mini Servo Section Board Power Box with BEC for Gas Plane 4106#
| Part No.: | DP-BEC |
| Manufacturer: | Feixiang |
Send to a friend
Features
Dual power inputs effectively improve supply reliability.
Built-in electronic switch, compared with the conventional mechanical switch has higher security and stability.

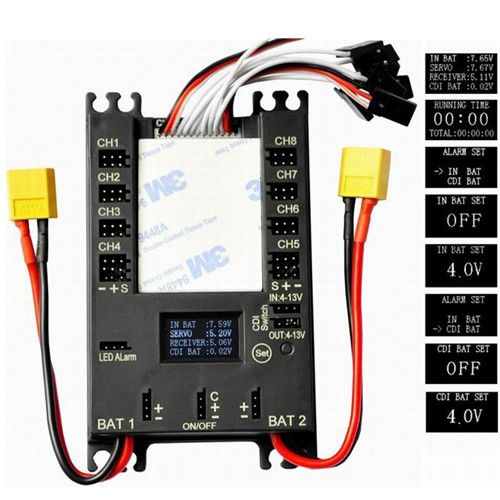

HD OLED display real-time display battery voltage input, the receiver operating voltage, operating voltage servos, CDI supply battery voltage, a single flight time, total flight time and other information.
You can freely set the alarm input battery voltage, CDI-powered battery alarm voltage value (alarm value range :4-12V, use the tips alarm buzzer and LED)
9-channel inputs, 16 servo output (1 of 2), Article 9 channel control CDI flameout switch.
Built-CDI remote flameout switch, making flying safer.
Built-20ABec (Max: 30A), providing ample work for the servo currents.
4.8-9.7V output voltage, to adapt to a variety of high and low voltage actuator.
Independent 5V linear regulator which provide a separate pure working power supply to the receiver.
Dedicated receiver placement, to avoid accidental bombing has resulted in damage to the receiver.
Built-in electronic switch, compared with the conventional mechanical switch has higher security and stability.
HD OLED display real-time display battery voltage input, the receiver operating voltage, operating voltage servos, CDI supply battery voltage, a single flight time, total flight time and other information.
You can freely set the alarm input battery voltage, CDI-powered battery alarm voltage value (alarm value range :4-12V, use the tips alarm buzzer and LED)
9-channel inputs, 16 servo output (1 of 2), Article 9 channel control CDI flameout switch.
Built-CDI remote flameout switch, making flying safer.
Built-20ABec (Max: 30A), providing ample work for the servo currents.
4.8-9.7V output voltage, to adapt to a variety of high and low voltage actuator.
Independent 5V linear regulator which provide a separate pure working power supply to the receiver.
Dedicated receiver placement, to avoid accidental bombing has resulted in damage to the receiver.
Product Details
Input Voltage: 6-13V
Output voltage : 4.8-9 .7 V (factory voltage is 5.2V)
Output Current : 0-20A (Max: 30A)
Weight: 80g
Size: 122mm*72mm*18mm
Working temperature: -20℃ to 85℃
Output voltage : 4.8-9 .7 V (factory voltage is 5.2V)
Output Current : 0-20A (Max: 30A)
Weight: 80g
Size: 122mm*72mm*18mm
Working temperature: -20℃ to 85℃
Item Packing
Mini Power DP BEC Pro x 1

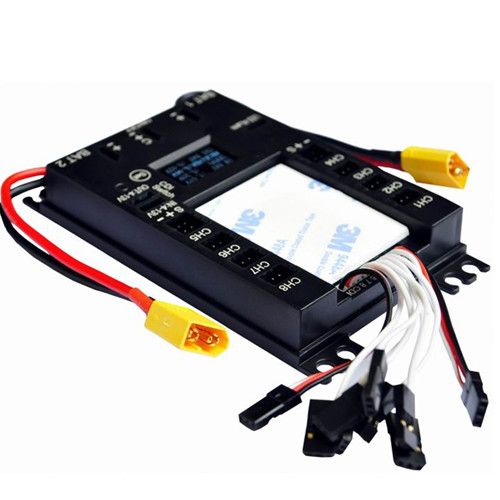

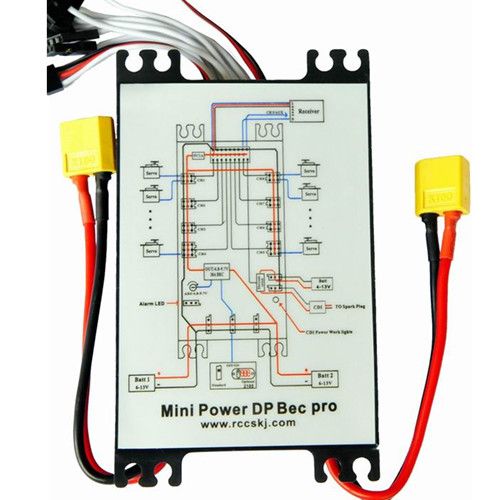

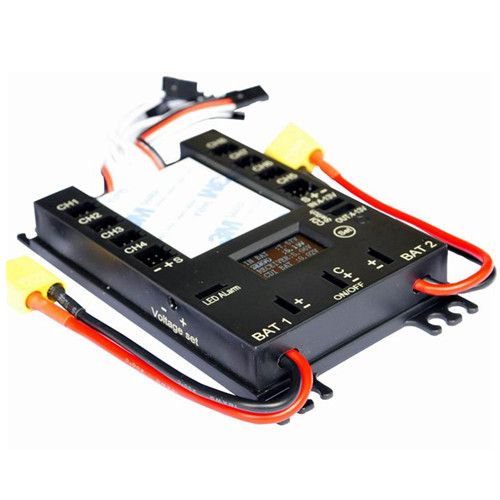

Detailed Images
