ToolkitRC MC8 Mini Battery Checker 32 Bit Multi-Checker PWM Output PPM SBUS Readout With USB-C Fast Charging
| Part No.: | LC-MC8 |
| Manufacturer: | ToolkitRC |
Send to a friend
Features
ToolkitRC MC8 Mini Battery Checker 32 Bit Multi-Checker PWM Output PPM SBUS Readout With USB-C Fast Charging
Product Details
Checker
- Main Input port：XT60 7.0-35.0V
- Balance input：0.5V-5.0V Lixx 2-8S
- Signal port input：<6.0V
- Balance current：MAX 60mA @2-8S
- Balance accuracy：<0.005V @ 4.2V
- USB-A output：5.0V@1.0A firmware upgrade
- USB-C output：5.0V-12.0V @MAX 20W
- USB-C protocol：PD3.0 QC3.0 AFC SCP FCP
Measurer
- PWM：880-2200us @20-400Hz
- PPM：880-2200us*8CH @20-50Hz
- SBUS：880-2200us*16CH @20-100Hz
Output
- PWM：1000-2000us @20-1000Hz
- PPM：880-2200us*8CH @20-50Hz
- SBUS：880-2200us*16CH @20-100Hz
General
- Product size：68*50*15 mm
- Product weight：50g
- Pack size：76*60*30 mm
- Pack weight：100g
- LCD：IPS 2.0inch LCD 320*240 Pixel
- Main Input port：XT60 7.0-35.0V
- Balance input：0.5V-5.0V Lixx 2-8S
- Signal port input：<6.0V
- Balance current：MAX 60mA @2-8S
- Balance accuracy：<0.005V @ 4.2V
- USB-A output：5.0V@1.0A firmware upgrade
- USB-C output：5.0V-12.0V @MAX 20W
- USB-C protocol：PD3.0 QC3.0 AFC SCP FCP
Measurer
- PWM：880-2200us @20-400Hz
- PPM：880-2200us*8CH @20-50Hz
- SBUS：880-2200us*16CH @20-100Hz
Output
- PWM：1000-2000us @20-1000Hz
- PPM：880-2200us*8CH @20-50Hz
- SBUS：880-2200us*16CH @20-100Hz
General
- Product size：68*50*15 mm
- Product weight：50g
- Pack size：76*60*30 mm
- Pack weight：100g
- LCD：IPS 2.0inch LCD 320*240 Pixel
Item Packing
MC8 Charger x 1

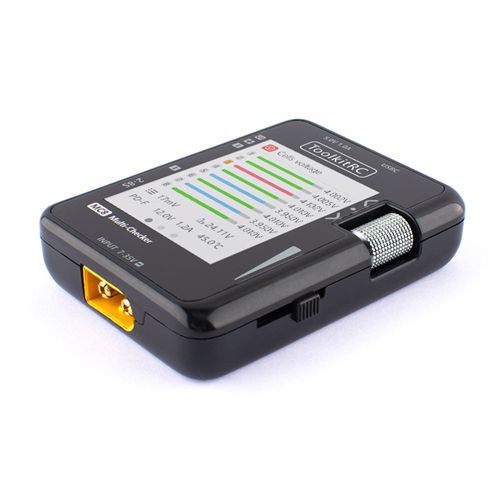

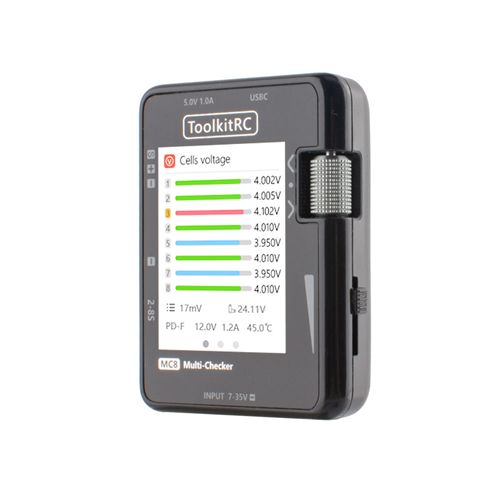

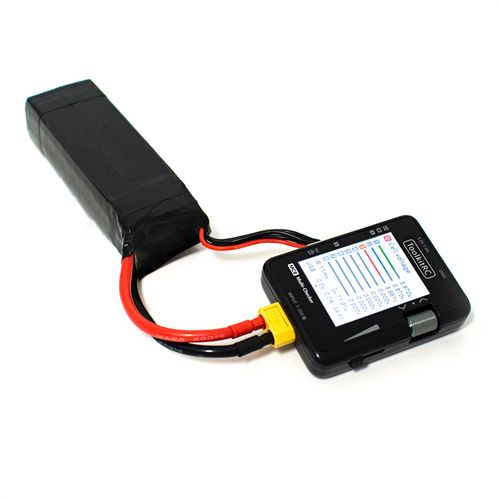

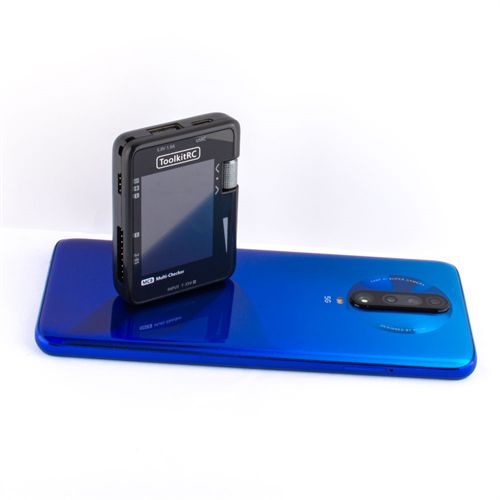

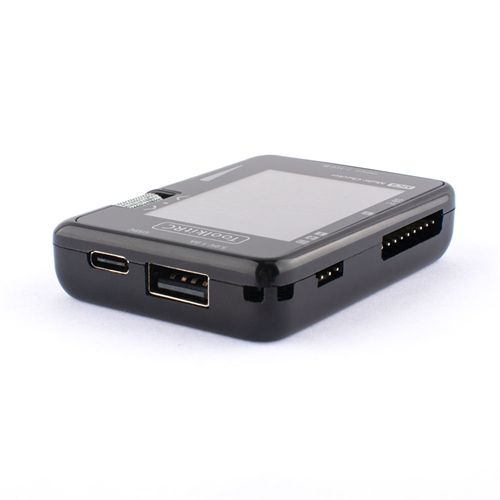

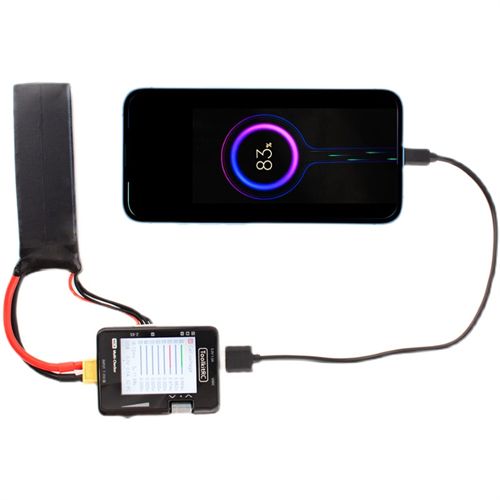

Detailed Images
