Golden Plated Connector > Product details
Amass XT90PW Male 4.5mm Gold-Plated Banana Plug Connector
| Part No.: | XT90PW-GHI |
| Manufacturer: | Feixiang |
Send to a friend
Features
Amass XT90PW 4.5mm Gold-Plated Banana Plug Connector Male
Product Details
Brand Name: Amass
Item Name: XT90PW connector
Banana Plug: 4.5mm
Body Material: Brass and gold-plated
Insulation Material: PA
Internal Resistance: 0.30mΩ
Rated Current: 45A
Instantaneous Current: 90A
Rated Voltage: DC 500V
FR Level: UL94 V0
Weight: 4.92g
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Item Name: XT90PW connector
Banana Plug: 4.5mm
Body Material: Brass and gold-plated
Insulation Material: PA
Internal Resistance: 0.30mΩ
Rated Current: 45A
Instantaneous Current: 90A
Rated Voltage: DC 500V
FR Level: UL94 V0
Weight: 4.92g
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Item Packing
Amass XT90PW male connector x 1

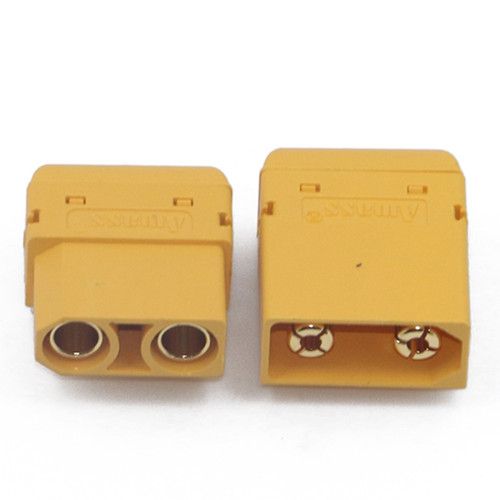

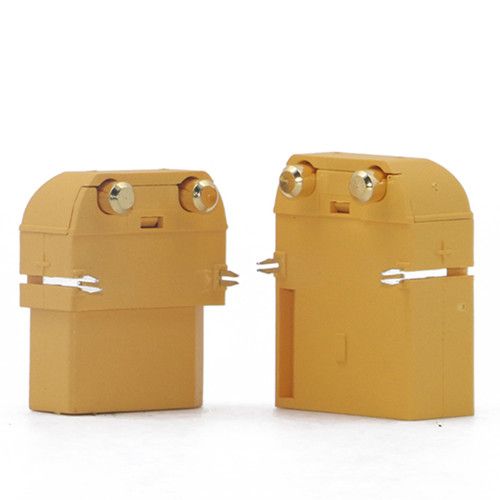

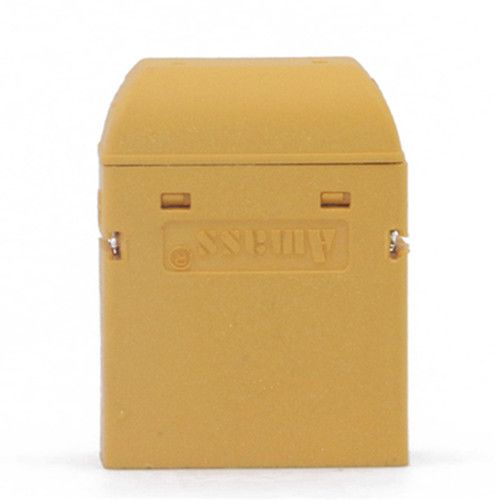

Detailed Images
