Foxeer Micro Lollipop 15cm 5.8G Omni Angle SMA RHCP Antenna for Goggles 2pcs
| Part No.: | FO-PA1457 |
| Manufacturer: | Foxeer |
Send to a friend
Features
Foxeer Micro Lollipop 15cm 5.8G Omni Angle SMA RHCP Antenna for Goggles 1pcs
Product Details
Center Frequency : 5.7GHz
Gain: 2.5dBi
Axial Ratio: Close to 1
Band Width: 5.5G~6GHz
Radiation Efficiency: 98%
SWR： 1.06 at Center Frequency
Connector： Angle SMA
Dimension： 11*150mm
Cable Length：133mm
Polarization：RHCP
Case Material： PC+ABS
Cable：SFX086
Weight：9g
Gain: 2.5dBi
Axial Ratio: Close to 1
Band Width: 5.5G~6GHz
Radiation Efficiency: 98%
SWR： 1.06 at Center Frequency
Connector： Angle SMA
Dimension： 11*150mm
Cable Length：133mm
Polarization：RHCP
Case Material： PC+ABS
Cable：SFX086
Weight：9g
Item Packing
Micro Lollipop 15cm 5.8G Antenna x 1

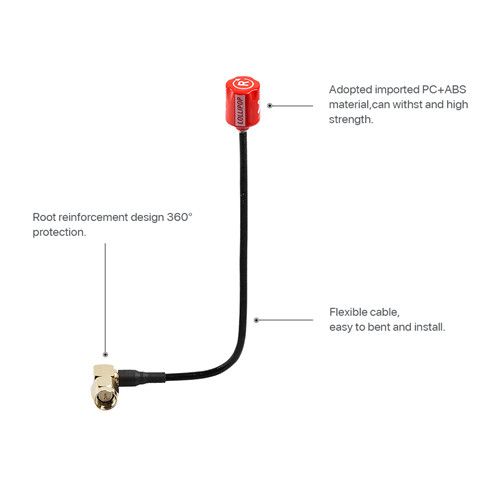

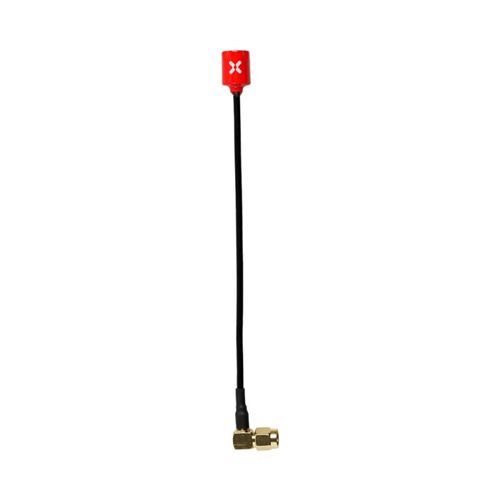

Detailed Images
