FEELWORLD S55 5.5 inch DSLR Camera Monitor 4K HDMI LCD IPS HD 1280x720 Display Field Monitor for Nikon Sony Canon

Part No.:	XP-S55
Manufacturer:	Feixiang

Send to a friend

Features

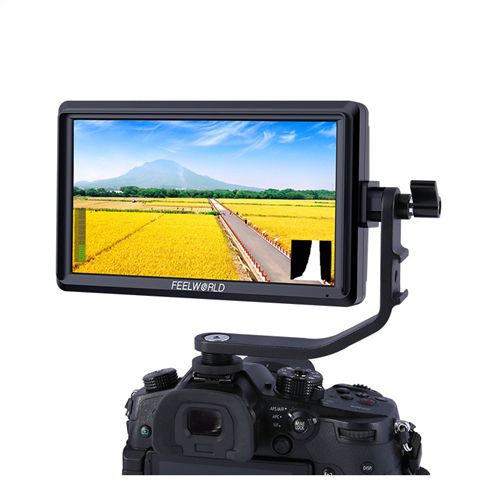

FEELWORLD S55 monitor is a lightweight 5.5" monitor at a 16:9 aspect ratio. The high resolution 5.5" LCD display shows bright, clear images - making it an ideal monitor for the discerning DSLR user. The S55 features a panel with native 1280 x 720 resolution, 500cd/m2 brightness, 1000:1 contrast ratio, which facilitates the onscreen image to be a more vibrant, more accurate rendition of what the camera sensor sees.
S55 is a mini but mighty 5.5" monitor packed full of features that are the perfect complement to a DSLR rig. To assist you during your productions, S55 has a lot of standard software features:
* Brightness Histogram
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All
* U/D Zoom
* L/R Zoom

Product Details

Model: S55
Screen size: 5.5 "IPS
Resolution: 1280 x 720 pixels
Point distance: 0.0945 (H) x 0.0315 (W) mm
Screen scale: 16:9
Brightness: 500CD / m2
Contrast: 1000:1
Backlight: LED
Viewing angle: 80 ° / 80 ° (L / R) 80 ° / 80 ° (U / D)

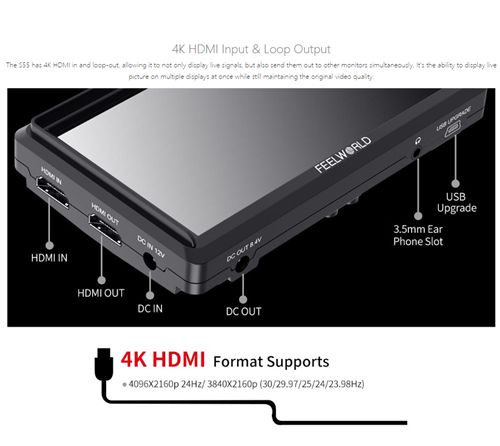

Input: HDMI
output
1 X HDMI：HDMI
1 x DC output: DC out 8.4v (outer diameter 5.5mm, inner diameter 2.1mm; can supply power to SLR or micro single camera)
Audio: headphone hole
HDMI input / output format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98), 4096×2160p (24Hz)
Input voltage: dc7 ～ 24 V
Power consumption: ≤ 9W
Working temperature: - 20 ° C ~ 55 ° C
Storage temperature: - 30 ° C ~ 65 ° C

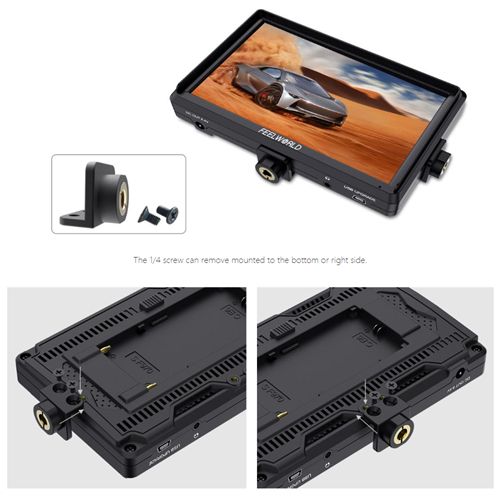

Installation method: 1 / 4-20 standard quick mounting screw hole

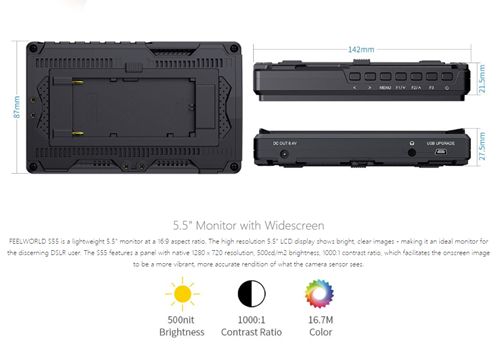

Single machine size: 142lx87.2hx27.5d (mm)
Unit weight: 175g
