Lumenier Double AXII 2 5.8G 4.7dBiC RHCP 130MM Long Range FPV Antenna For RC FPV Racing Freestyle Fatshark Goggles

Lumenier Double AXII 2 5.8G 4.7dBiC RHCP 130MM Long Range FPV Antenna For RC FPV Racing Freestyle Fatshark Goggles
Part No.: AXII2-130MM
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Improved Features Over Standard AXII V1
Significantly Improved Range with a Higher Gain (4.7dBiC Gain)
Wider Bandwidth (5.3-6.2GHz)
Cleaner Signal And Better Rejection to Interference
More Durable - Improved Injection Molded Housing
Virtually Perfect Axial Ratio
Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the Double AXII 2 has an amazing max gain of 4.7dBiC, a true upgrade over the original AXII.

Super Tough
Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing. The 120mm long semi-rigid RG402 cable allows for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support.

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

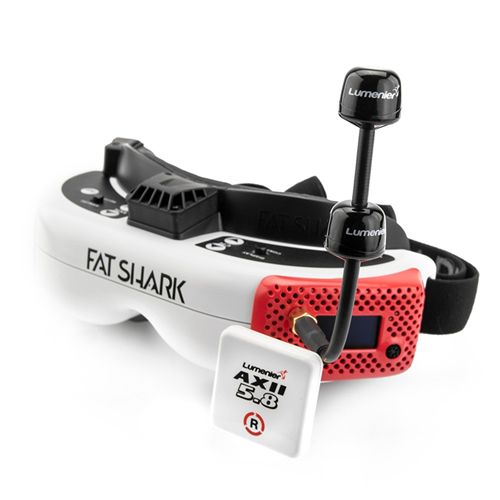

Also works great on the DJI digital FPV goggles! Just make sure to purchase RP-SMA to SMA adapters so they can properly mount to the RP-SMA connection the goggles.

DJI Digital HD FPV Goggles
RF RP-SMA Male to SMA Female Adapter

Product Details

Gain: 4.7dBiC
Axial ratio: 1.0 (near perfect)
Bandwidth: 5.3GHz-6.2GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 12g

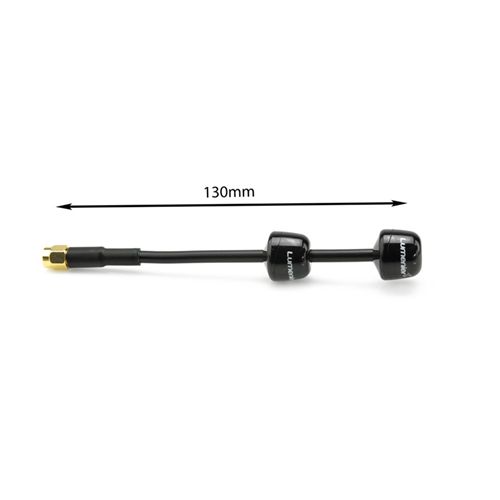

Size: 130mm x 17.5mm
Cable: Semi-rigid RG402
Connector: Straight SMA
Polarization
Right Hand Circular (RHCP)

Item Packing

1x Lumenier Double AXII 2 SMA 5.8GHz Antenna (RHCP)

Detailed Images
