1.2G 8W Wireless Digital Transmitter & Receiver Audio Video Transmission System Transceiver
| Part No.: | QA-1.2G8W |
| Manufacturer: | Feixiang |
Send to a friend
Features
1.2G 8W Wireless Digital Transmitter & Receiver Audio Video Transmission System Transceiver
Product Details
Transmitter Parameter:
Emission frequency: HC1:1080 HC2:1120 HC3:1160 HC4:1200HC5:1240HC6:1280HC(MHz)
Transmit power: 8W
Frequency control: Digital frequency PLL controls and locks each lock point.
Transmit signal: Video, audio
Linear transmission distance: 500～3000M(there are obstacles, depending on the situation)
Voltage：DC+12V
Electric current: 600MA

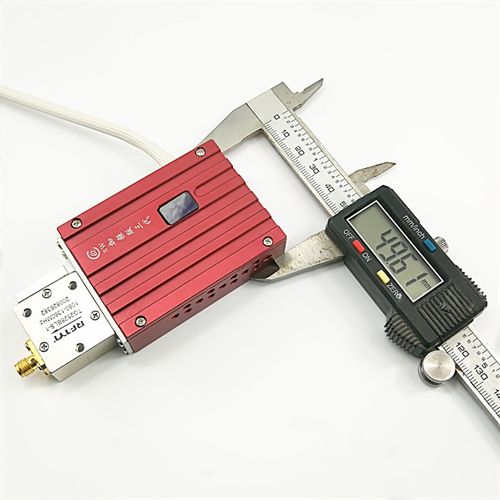

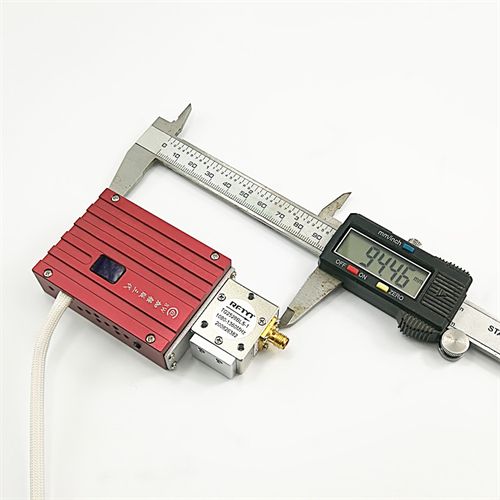

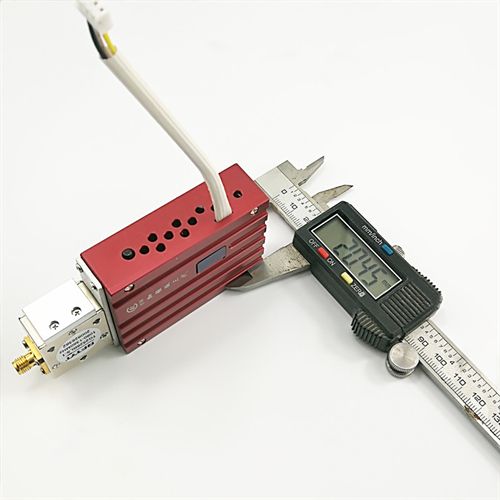

Size: 95×50×20（mm）

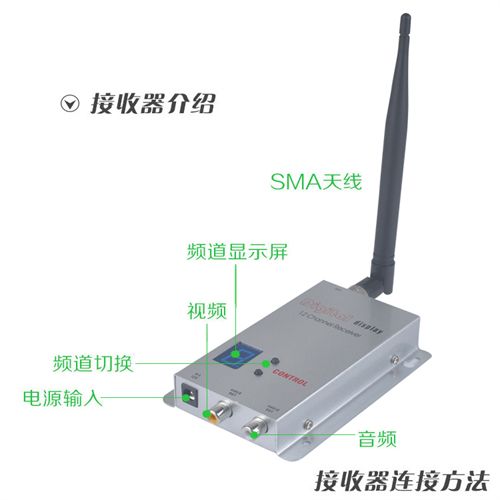

Receiver Parameter:
Type: FM
Receiving frequency: 0.9~1.2GHz
Transmit signal: Video, audio
Voltage: DC12V
Output current: 300mA
Weight: 160g
Size: 115×60×20（mm）
Item Packing
Transmitter x 1
Receiver x 1
12V 2A Power Supply Adapter x 2
Tx cable x 1
AV cable x 1
Antenna x 2
Receiver x 1
12V 2A Power Supply Adapter x 2
Tx cable x 1
AV cable x 1
Antenna x 2

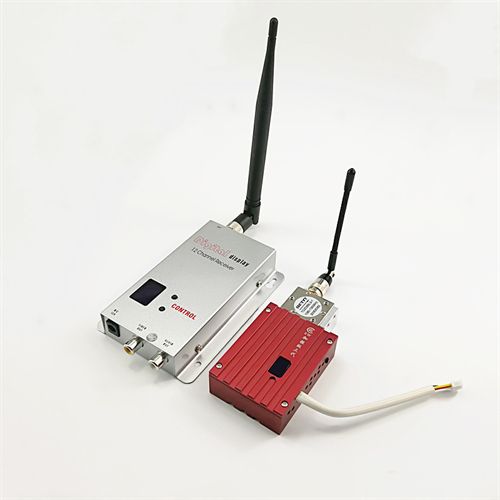

Detailed Images
