BEECORE Lite Brushed Flight Controller Board Built in Bayang protocol for Tiny Whoop or Blade Inductrix Frame RC Quadcopter Part
| Part No.: | QA566 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Designed to work with current Tiny Whoop or Blade Inductrix frames
Built in Bayang protocol native receiver, compatible with almost radio transmitter with deviation firmware or deviation compatible transmitter module
The flight controller board comes pre-flashed with Silverware firmware, and pre-soldered 55mm power cable pigtail with JST-PH 2.0 connector, AKA PowerWhoop connector.
Product Details
CPU: STM32F030
Six-Axis: MPU6050
Receiver module:XN297LBW
ESC: All FETs are rated at 12A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern
Firmware : Silverware
Receiver protocol: Bayang protocol
Power Cable: 50mm, with JST-PH 2.0 connector,

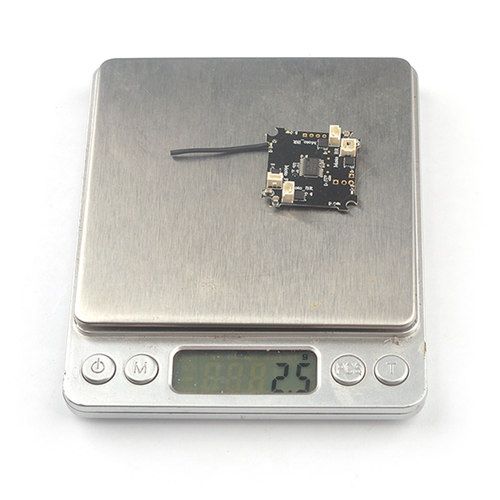

Weight: 2.7g
Compatible radio transmitter:
BETAFPV TX01 radio transmitter
Radio transmitter of toy drone like JJRC H67, Eachine E011 etc, that using the Bayang protocol
Jumper T8SG radio transmitter
MTX9D multiprotocol module (Suit for Frsky Tanaris QX7 X9D X9D Plus X12S, Flysky TH9X, Turnigy 9XR/9XR PRO)
MTXI6 multiprotocol module(Suit for Flysky i6, i6S, I6X, I10)
Other 4in1 multiprotocol module that support the Bayang protocol
Item Packing

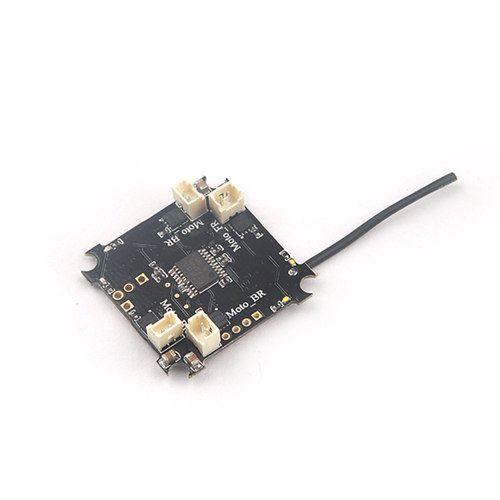

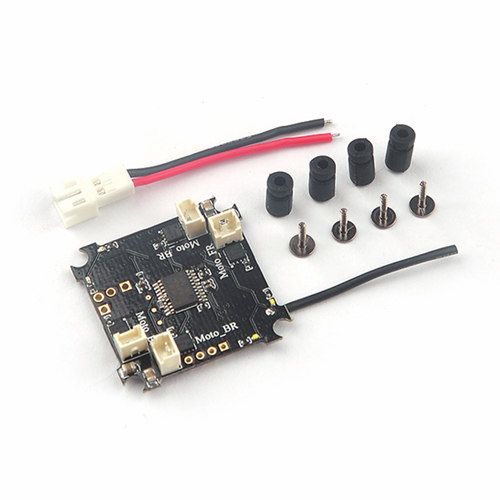

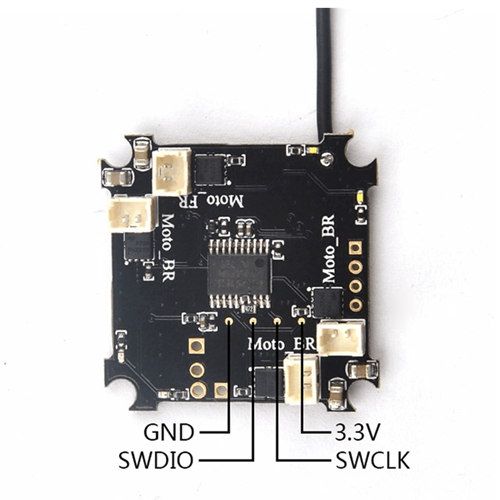

Detailed Images
