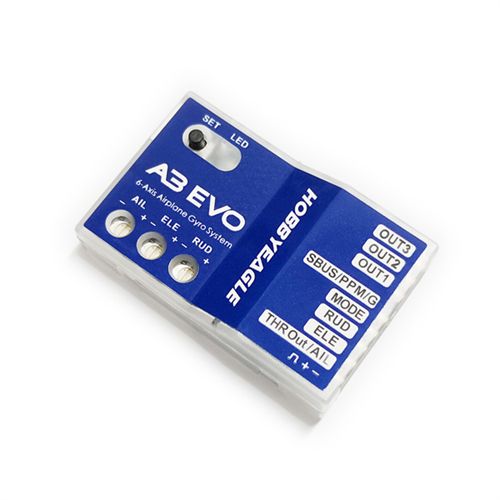

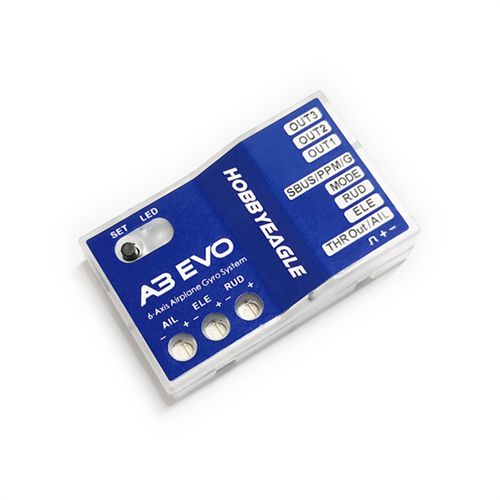

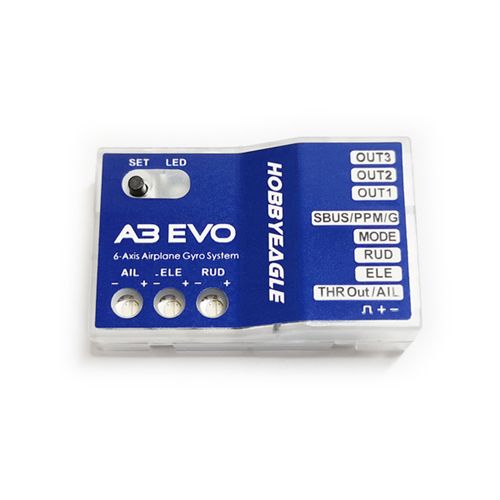

HobbyEagle A3 EVO Flight Controller Stabilizer 3-Axle Gyro For RC Airplane Fixed-wing Copter Drone
| Part No.: | HE-A3EVO |
| Manufacturer: | Feixiang |
Send to a friend
Features
A3 EVO is the latest fixed-wing dedicated 6-axis gyroscope developed on the AVR platform. The algorithm is simple, efficient, mature and stable. It continues and draws on the rich experience of previous gyroscope development and adds many new features, such as PPM receiver support, independent 3-axis basic sensitivity adjustment, and independent throttle output channel for mini receivers, A3EVO will bring you more powerful and outstanding performance.
- 4 flight modes: gyroscope off mode, normal stabilization mode, automatic balance mode, automatic hoist mode
- 3 types of airfoil: conventional airfoil, delta wing (flying wing) and v-tail
- Support standard PM receiver PPM and QFutaba.bus serial receiver
- Throttle signal output in serial mode
- Independent adjustment of basic sensitivity of aileron, lift and direction
- Remote total sensitivity adjustment
Product Details
Main controller: AVR microprocessor
Sensor: High-precision MEMS six-axis sensor
Gyro range: ±2000dps
Acceleration measurement range: ±4g
Servo stroke: limited to 970uS-2070uS, 1520uS for the central defender
Working voltage: 4.8V-8.4V (up to 2S lithium battery direct power supply)
Working temperature: -10℃-50℃
Size: 43*27*14mm
Weight: 10g
Sensor: High-precision MEMS six-axis sensor
Gyro range: ±2000dps
Acceleration measurement range: ±4g
Servo stroke: limited to 970uS-2070uS, 1520uS for the central defender
Working voltage: 4.8V-8.4V (up to 2S lithium battery direct power supply)
Working temperature: -10℃-50℃
Size: 43*27*14mm
Weight: 10g
Item Packing

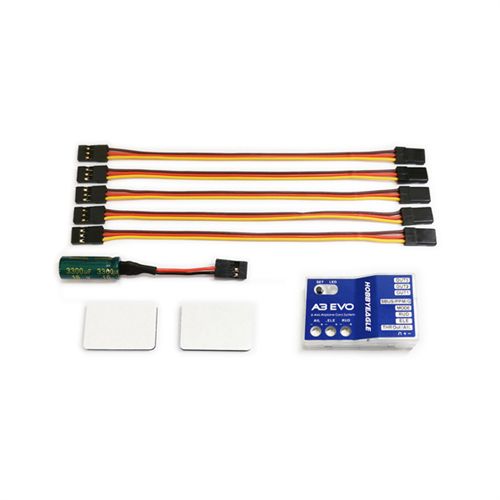

HobbyEagle A3 EVO Flight Controller x 1
