Accessories > Product details
Tarot Φ16MM Light Motor Mount / Titanium TL68B46
| Part No.: | QA571 |
| Manufacturer: | TAROT |
Send to a friend
Features
Tarot Φ16MM Light Motor Mount / Titanium TL68B46
Product Details

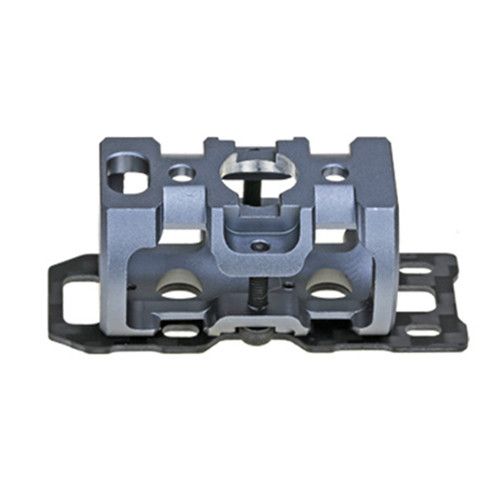

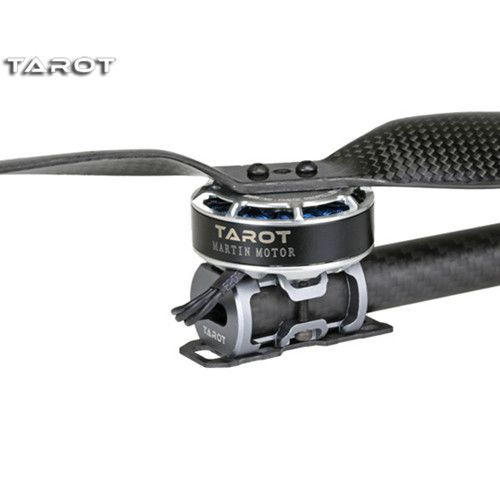

The Φ16MM light motor mount is made of 6061T6 aluminum alloy with full CNC machining and weighs only 11 grams. Applicable to the motor mounting hole distance: Φ19MM (such as: 4006/4008 Martin Motor TL2955/TL2954).

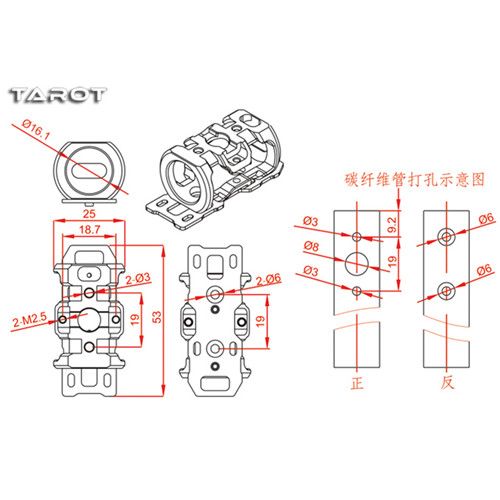

Note: To use this motor base, you need to punch the carbon fiber arm yourself.
Item Packing

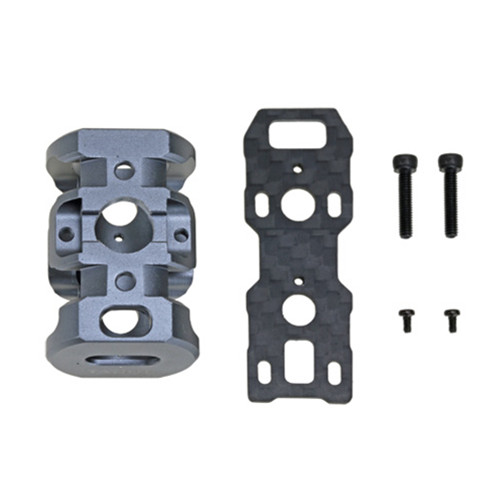

Product specifications:
Metal motor mount × 1 (Φ16 × Φ25 × 37MM) 11.1G
Carbon fiber board × 1 (53 × 12 × 1.2MM) 1.5G
M2×12MM cup head hex head screw × 2
M1.5×3MM screw × 2
Metal motor mount × 1 (Φ16 × Φ25 × 37MM) 11.1G
Carbon fiber board × 1 (53 × 12 × 1.2MM) 1.5G
M2×12MM cup head hex head screw × 2
M1.5×3MM screw × 2
Detailed Images
