Skyrc Brushless Motor Analyzer KV Voltage RPM Timing Checker Tester For RC Car motor
| Part No.: | XP642 |
| Manufacturer: | SKYRC |
Send to a friend
Features
SKYRC motor analyzer is a precision electronic device that is Specially designed for measuring the KV value, RPM, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.
Product Details
Input Voltage: 7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)
LCD Display Screen: Blue Backlight Background, White Text, 16 Characters X 2 Lines
KV Value Accuracy: +/- 3%
Motor Timing Accuracy: +/- 4%
Motor Timing Range: 0-70°
Noise Level Measurement Range: 60dB - 120dB
Supported Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)
Size: 80.6 x 136.5 x 24.5mm
Net Weight: 282g (Without Cabel)
LCD Display Screen: Blue Backlight Background, White Text, 16 Characters X 2 Lines
KV Value Accuracy: +/- 3%
Motor Timing Accuracy: +/- 4%
Motor Timing Range: 0-70°
Noise Level Measurement Range: 60dB - 120dB
Supported Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)
Size: 80.6 x 136.5 x 24.5mm
Net Weight: 282g (Without Cabel)
Item Packing
Skyrc Brushless Motor Analyzer x 1

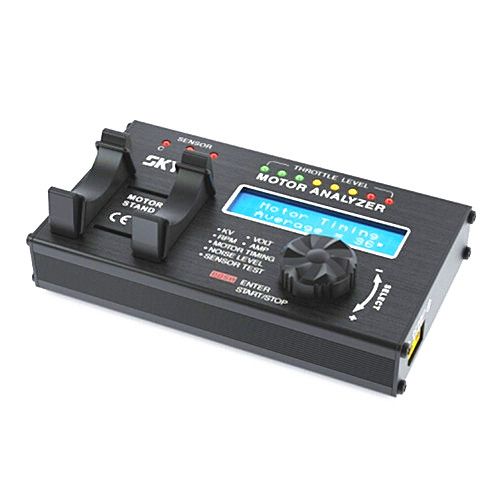

Detailed Images
