SIYI F9P RTK Module Centimeter Level Four-Satellite Mutil-Frequency Navigation and Positioning System GNSS Base Station Compatible with PX4 and Ardupilot

SIYI F9P RTK Module Centimeter Level Four-Satellite Mutil-Frequency Navigation and Positioning System GNSS Base Station Compatible with PX4 and Ardupilot
Part No.: F9P-RTK-BASE
Manufacturer: SIYI

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

F9P RTK module is a high-accuracy centimeter-level four-satellite multi-frequency navigation and positioning system developed for flight control systems. Through real-time kinematic positioning technology, the 3D positioning accuracy is improved from meter level to centimeter level. lt integrates positioning, altitude detection and dual-module direction finding functions. RTK technology makes up for the shortcomings of traditional GPS,barometer, and magnetic compass, enables UAVs to adapt to complex magnetic field environments, and provides accurate.

Product Details

Satellite Receiver：184 Channel ZED-F9P(UBLOX)
Compass：IST8310
GNSS：GPS，GLONASS，Beidou，Galileo
GNSS Bands：GPS - L1C/A,L2C；GLONASS - L10FL20F；GALILEO - E1B/CE5b；Beidou - B1l,B2I；QZSS -L1C/A,L2C
Positioning Accuracy：1cm +1 ppm
Direction(Finder Accuracy)：(0.25/R)° R = The range between the two mobilestation antennas in meters. *Two mobile stations are required fordirection
Single Point Positioning：1.5 m CEP
SBAS Auxiliary Positioning：1.0 m CEP
Surveying Time：RTK < 55 s
GPS Acquisition Time：Cold Start < 23 s，Hot Start < 1 s
Antenna Gain：Mobile: 2 dBi，Base: 5.5 dBi
Dual-Antenna Direction Finding：Supported，Yaw Accuracy: 0.35 edg (for reference)
Interfaces：2X UART，1xUSB(Type-C)
Antenna Connector：MMCX
Working Voltage：4.5~5.5V
Power Consumption：0.6 W
Working Temperature：-30~75°C
Product Dimension：47 x 33x 13 mm
Product Weight：31g

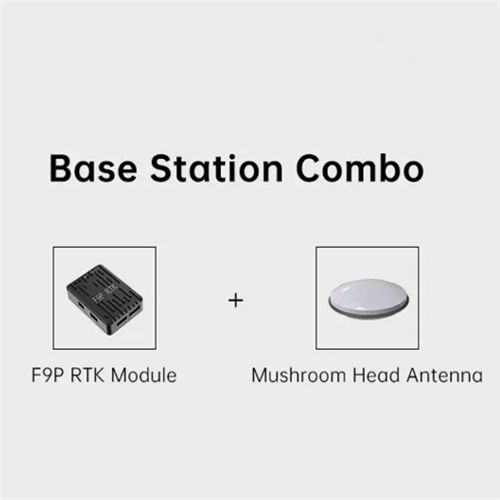

Item Packing

F9P RTK Module x1
Mushroom Head Antenna x1

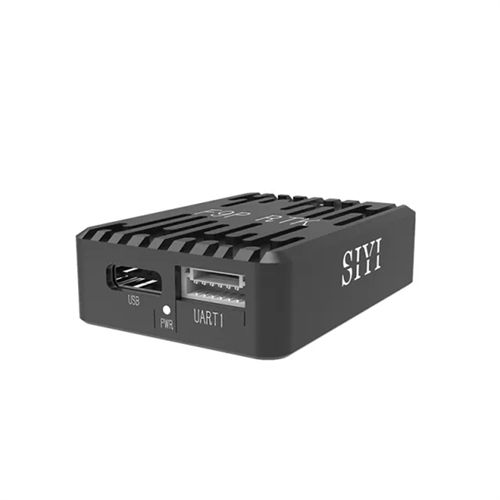

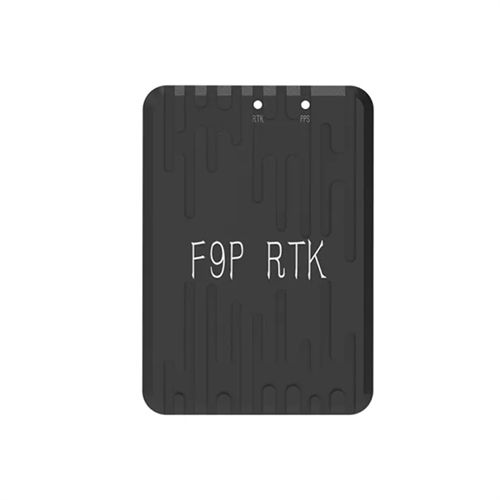

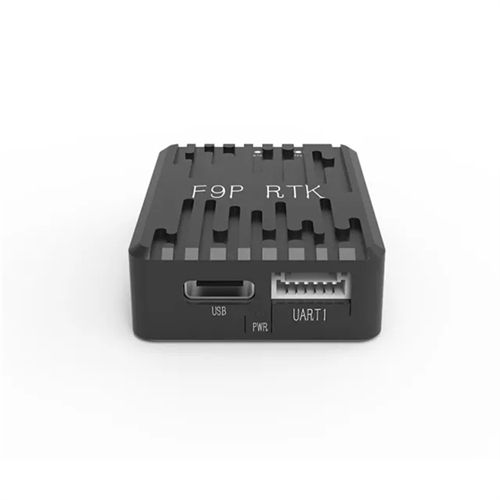

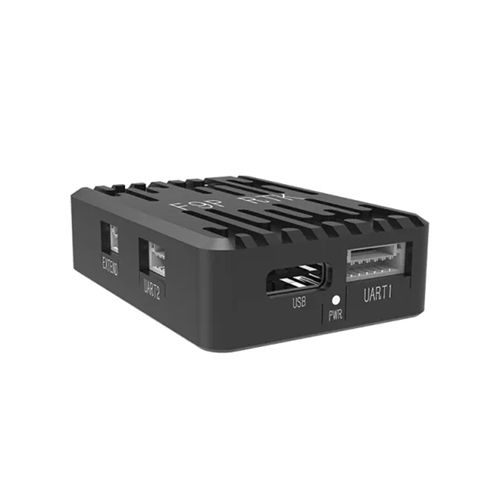

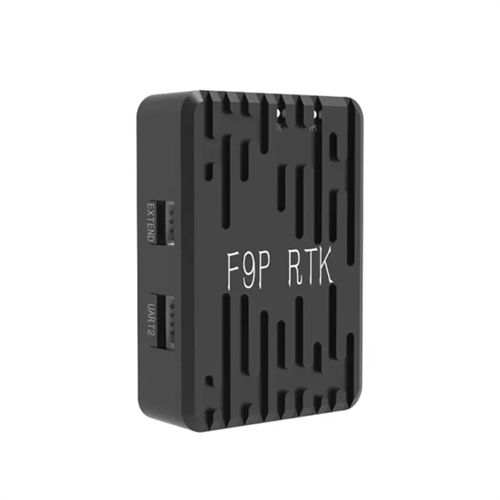

Detailed Images
