Lidar Range Finder Sensor Module TFmini Plus LiDAR Module, IP65 Waterproof Dustproof Short-range Distance Sensor
| Part No.: | TF-12UART |
| Manufacturer: | Feixiang |
Send to a friend
Features
TFmini Plus is a milestone of Benewake in the process of promoting the cost-effective -LiDAR. Apart from low-cost, small-size and low-power-consumption, TFmini Plus also improves the frame rate, introduces IP65 enclosures and optimizes various compensation algorithms. These new characters greatly expand the application fields and scenarios of TFmini Plus. The product is compatible with both the UART and IIC interface. Different interfaces can be switched by commands.
Product Details
Range: 0.1-12m
Accuracy: ±5cm@（0.1-6m），±1%@（6m-12m）
Resolution: 5mm
Frequency: 1-1000Hz, standard is 100Hz
Light Sensitivity: 70klux
Operation temperature: -20℃~60℃
Waterproof: IP65
Light and Wave length: LED 850nm
Receiving Anger: 3.6 degree
Supply Voltage: 5V±0.5V
Average current: 110mA
Average Power: 550mW
Peak Current: 300mA
Communication Level: LVTTL(3.3V)
Interface: UART
Cable length: 30cm
Accuracy: ±5cm@（0.1-6m），±1%@（6m-12m）
Resolution: 5mm
Frequency: 1-1000Hz, standard is 100Hz
Light Sensitivity: 70klux
Operation temperature: -20℃~60℃
Waterproof: IP65
Light and Wave length: LED 850nm
Receiving Anger: 3.6 degree
Supply Voltage: 5V±0.5V
Average current: 110mA
Average Power: 550mW
Peak Current: 300mA
Communication Level: LVTTL(3.3V)
Interface: UART
Cable length: 30cm
Item Packing
TFmini Plus LiDAR x 1

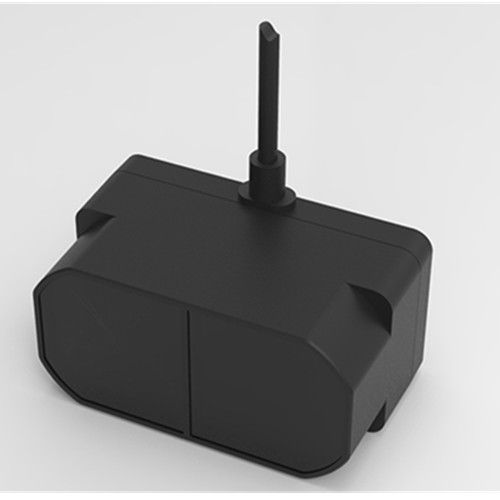

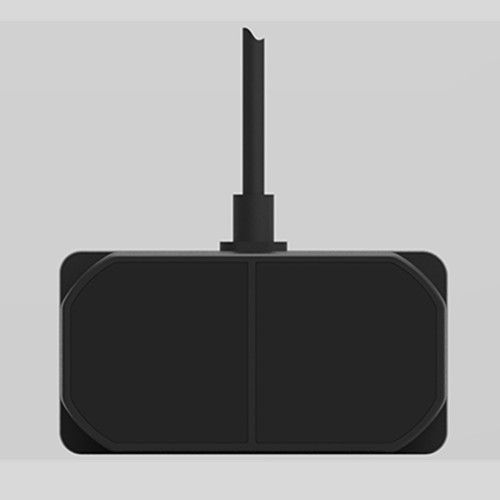

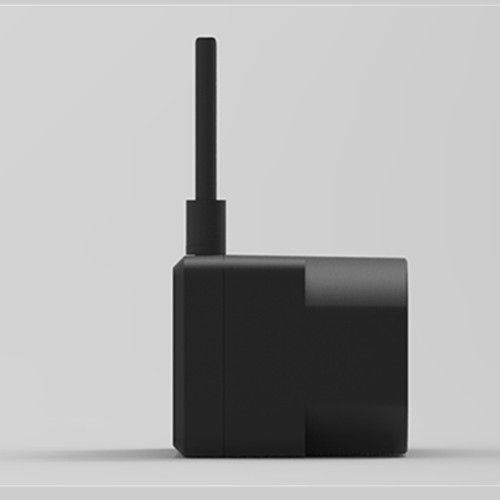

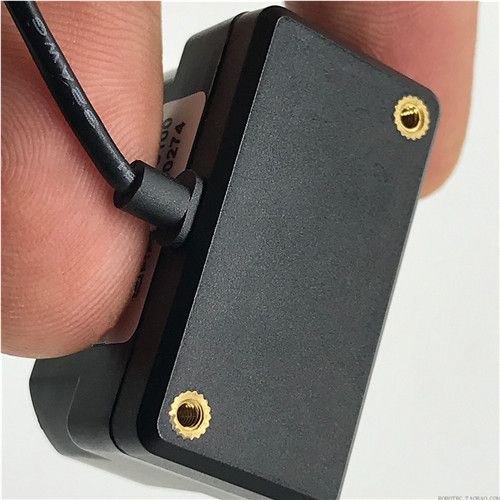

Detailed Images
