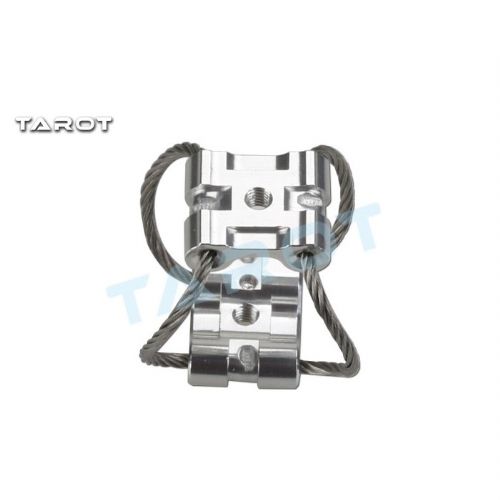

Tarot Steel Shock Absorber / Damping CR0.8B TL2974
| Part No.: | TL2974 |
| Manufacturer: | TAROT |
Send to a friend
Features
Applicable to unmanned aerial vehicles, car, shipborne photographic equipment and high-power high-definition zoom PTZ damping. Using 1570N / mm low stress and high toughness Baosteel materials, multi-strand low twist way twist into a spiral steel wire bundle, made of cage shape.
Installation board with 6061-T6 aluminum alloy super-hard aluminum alloy material, high-precision multi-axis CNC machining, the bottom of the screw hole overhead design, side hole rounded round, to avoid grinding line.
Damping wire shock absorbers use the material's viscous damping characteristics, so that the impact of instantaneous shock energy, as much as possible in the damping layer. Greatly enhance the high degree of high-definition photographic equipment effect, become a real water ripple nemesis.
Yield strength (N / mm2) ≥205
It is recommended to use the extrusion type to pull the structure to install more effectively, the installation hole is 2.5MM.
Note: It is strictly forbidden to squeeze the shock absorber, so as to avoid damage to the steel damper.
Related parts no:
Steel Shock Absorber / Damping CR0.8A TL2973
Steel Shock Absorber / Damping CR0.8B TL2974
Wire Shock Absorber / Damping CR1.2A TL2975
Wire Shock Absorber / Damping CR1.5A TL2976
Wire Shock Absorber / Damping CR2.0A TL2977
Taor damping pan / tilt ball / medium type TL10A05
Taort damping pan / tilt ball / small TL10A04
Installation board with 6061-T6 aluminum alloy super-hard aluminum alloy material, high-precision multi-axis CNC machining, the bottom of the screw hole overhead design, side hole rounded round, to avoid grinding line.
Damping wire shock absorbers use the material's viscous damping characteristics, so that the impact of instantaneous shock energy, as much as possible in the damping layer. Greatly enhance the high degree of high-definition photographic equipment effect, become a real water ripple nemesis.
Yield strength (N / mm2) ≥205
It is recommended to use the extrusion type to pull the structure to install more effectively, the installation hole is 2.5MM.
Note: It is strictly forbidden to squeeze the shock absorber, so as to avoid damage to the steel damper.
Related parts no:
Steel Shock Absorber / Damping CR0.8A TL2973
Steel Shock Absorber / Damping CR0.8B TL2974
Wire Shock Absorber / Damping CR1.2A TL2975
Wire Shock Absorber / Damping CR1.5A TL2976
Wire Shock Absorber / Damping CR2.0A TL2977
Taor damping pan / tilt ball / medium type TL10A05
Taort damping pan / tilt ball / small TL10A04
Product Details
Tarot Steel Shock Absorber / Damping CR0.8B TL2974
Item Packing
Tarot Steel Shock Absorber / Damping CR0.8B TL2974 x 1
Detailed Images
