CUAV P9 Radio Data Telemetry Module RC FPV Data Transmission Pixhack Pixhawk Long Distance 60KM
| Part No.: | CUAV-P9 |
| Manufacturer: | CUAV |
Send to a friend
Features
P9 Radio is an ultra-long data telemetry module of UAV. It adopts the communication frequency band of 902-928MHz. It has a transmission distance of 60km and a link rate of 276kbps.P9 Radio supports 3-12s wide voltage input. It supports opoint-to-multiple, and relay communication, meet communication requirements in multiple application scenarios.
Product Details
Working frequency：902-928MHz
Spreading Method：Frequency Hopping
Transport protocols：transparent transmission
Forward Error Correction：Hamming, BCH, Golay, Reed-Solomon, Viterbi
Encryption：32 bits of CRC、ARQ
Range
Optional AES encryption (custom)
60km+(high-gain fiberglass antenna + unobstructed seaside)
Reference distance: 40km(The transmission distance is different under differentenvironments/confiqurations, please refer to actual use)
Sensitivity
-110dBM@115.2kbps；
-108dBm@172.8kbps；
-107dBm@230.4kbps
Transit power：Hopping:100mw~1000mw(20~30dBm) Default: 1000mW
Antenna gain：5DBi
Serial type：3.3V CMOS TTL
Link Rate：Up to 276kbps
Baud Rate：Max 230.4kbps;57600(default)
Operating Modes：Auto Routing, Store and Forward,Self Healing, Packet RoutingModes
Input voltage：12V-60V
Power consumption：Sleep< 1mA ,ldle< 3.5mA, RX:35~80mATX(Peak) :<2A
Interface：Antenna:SMAinner needle:Serial; GHR-06V-S:USB:TYPE-C:Power:XT3OPW-M
Operation Temperature：-40°C~85°C
Humidity：5% to 95% noncondensing
Weight：P9 module; 55g antenna 31g; total 86g
Size：65mmx40mmx16.5mm
Spreading Method：Frequency Hopping
Transport protocols：transparent transmission
Forward Error Correction：Hamming, BCH, Golay, Reed-Solomon, Viterbi
Encryption：32 bits of CRC、ARQ
Range
Optional AES encryption (custom)
60km+(high-gain fiberglass antenna + unobstructed seaside)
Reference distance: 40km(The transmission distance is different under differentenvironments/confiqurations, please refer to actual use)
Sensitivity
-110dBM@115.2kbps；
-108dBm@172.8kbps；
-107dBm@230.4kbps
Transit power：Hopping:100mw~1000mw(20~30dBm) Default: 1000mW
Antenna gain：5DBi
Serial type：3.3V CMOS TTL
Link Rate：Up to 276kbps
Baud Rate：Max 230.4kbps;57600(default)
Operating Modes：Auto Routing, Store and Forward,Self Healing, Packet RoutingModes
Input voltage：12V-60V
Power consumption：Sleep< 1mA ,ldle< 3.5mA, RX:35~80mATX(Peak) :<2A
Interface：Antenna:SMAinner needle:Serial; GHR-06V-S:USB:TYPE-C:Power:XT3OPW-M
Operation Temperature：-40°C~85°C
Humidity：5% to 95% noncondensing
Weight：P9 module; 55g antenna 31g; total 86g
Size：65mmx40mmx16.5mm

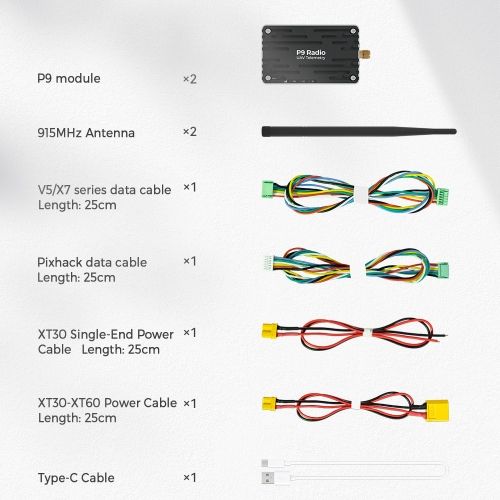

Item Packing
P9 module x2
915MHz Antenna x2
V5/X7 series data cable Length: 25cm x1
Pixhack data cable Length: 25cm x1
XT30 Single-End Power Cable Length:25cm x1
XT30-XT60 Power Cable Length: 25cm x1
Type-C Cable x1
915MHz Antenna x2
V5/X7 series data cable Length: 25cm x1
Pixhack data cable Length: 25cm x1
XT30 Single-End Power Cable Length:25cm x1
XT30-XT60 Power Cable Length: 25cm x1
Type-C Cable x1

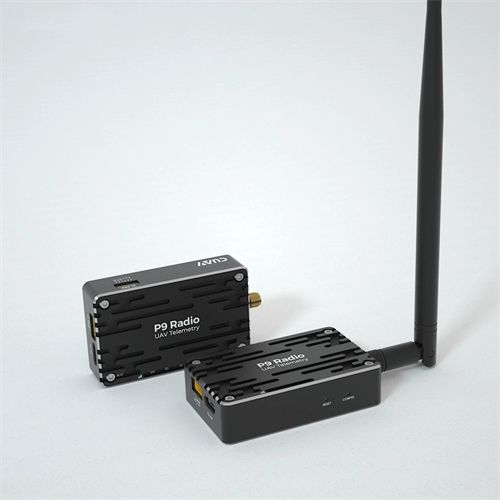

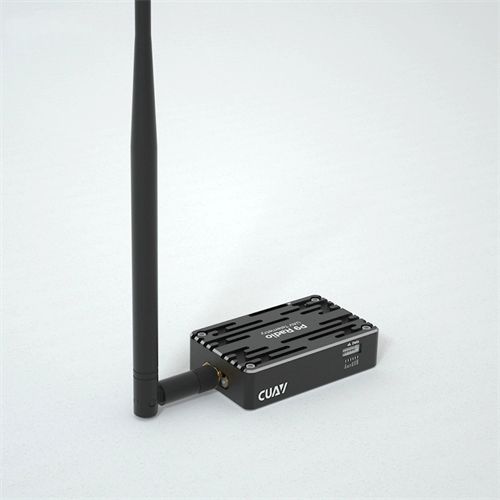

Detailed Images
