Makeflyeasy PDB CAN Divider Board DroneCAN Flight Control Divider Board ArduPilot Flight Controls
| Part No.: | PBD-CAN-FT |
| Manufacturer: | Feixiang |
Send to a friend
Features
Makeflyeasy PDB CAN Divider Board DroneCAN Flight Control Divider Board ArduPilot Flight Controls
Product Details
Model：PDB CAN Fighter
Voltage：12V-60V
Current：0-80 A
Detector Protocol：DroneCAN and ADC
Voltage/Current Accuracy：±0.1V/±0.2A
Voltage Divide Ratio：18
Current A/V ratio：24
Power1/2 Output Voltage Current：5.5V/5A
Servo Power Supply Output Voltage Current：5.3V/5A
Load Supply Output Voltage Current：12V/5A
Operating Temp.：-20°C~+100°C
Max. external dimensions：101mm*41mm
Weight(with cable)：67g
Voltage：12V-60V
Current：0-80 A
Detector Protocol：DroneCAN and ADC
Voltage/Current Accuracy：±0.1V/±0.2A
Voltage Divide Ratio：18
Current A/V ratio：24
Power1/2 Output Voltage Current：5.5V/5A
Servo Power Supply Output Voltage Current：5.3V/5A
Load Supply Output Voltage Current：12V/5A
Operating Temp.：-20°C~+100°C
Max. external dimensions：101mm*41mm
Weight(with cable)：67g
Item Packing
Power Management Module x1
14AWG Wing Power Cord x4
12AWG Battery Power Cord x2
Connection cord x1
XT90 x2
M2.5*10 Studs x4
M2.5*6 Screws x10
2.5-4 Wiring terminal x2
14AWG Wing Power Cord x4
12AWG Battery Power Cord x2
Connection cord x1
XT90 x2
M2.5*10 Studs x4
M2.5*6 Screws x10
2.5-4 Wiring terminal x2

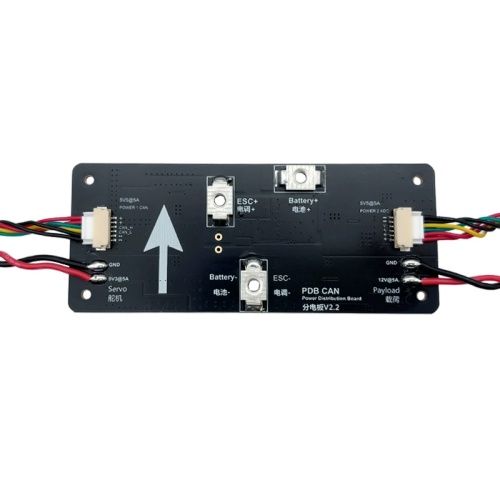

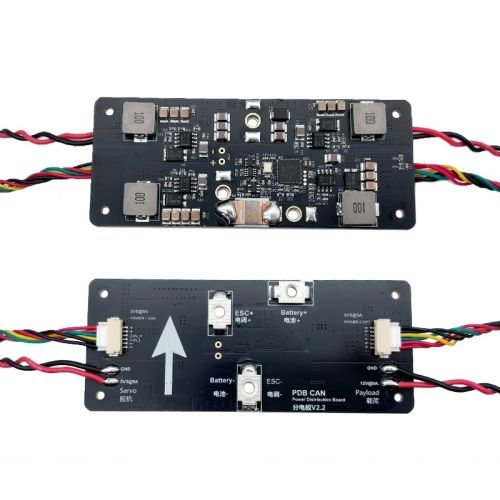

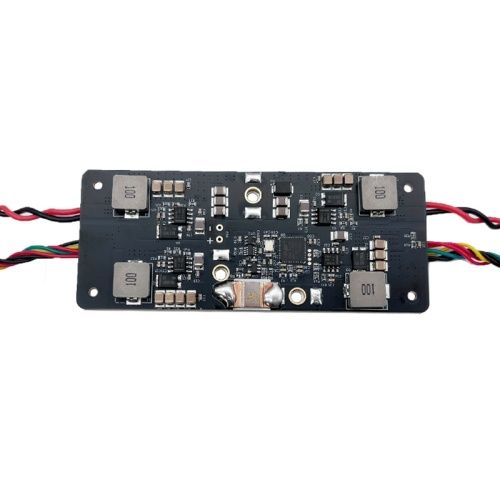

Detailed Images
