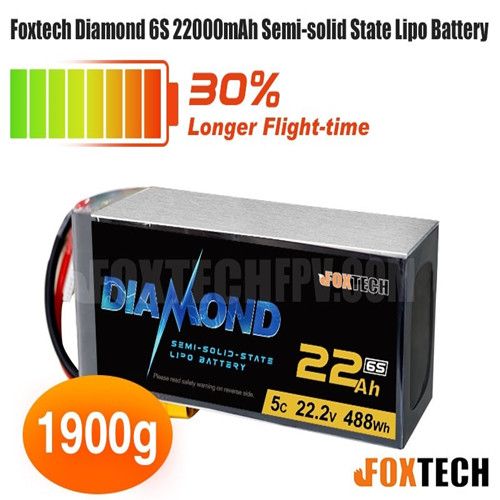

Foxtech Diamond 6S 22000mAh Semi-solid State Lipo Battery

Part No.:	FT-22000MAH
Manufacturer:	Feixiang

Send to a friend

Features

This 6S 22000mAh semi-solid lipo battery is only 1900g, with 251.7Wh/kg energy density, the continuous discharge rate is 5C, Max. discharge rate is 10C. It also has a long cycle life, over 600 times.

Compared with Li-ion battery, the semi-solid state battery has higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of Li-ion battery.

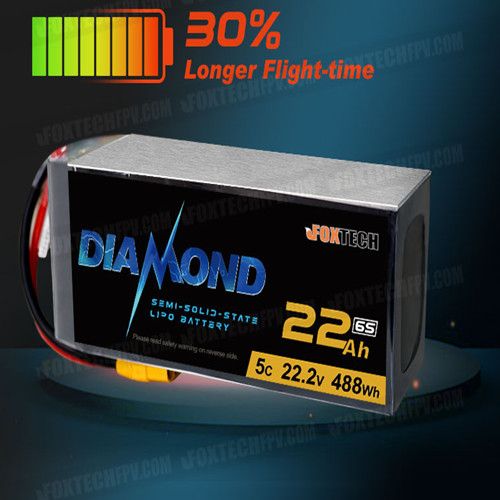

Compared with traditional lipo battery, the semi-solid state battery has light weight and higher energy density. Its energy density increased by 30%-35%, even 20% higher than that of high-voltage version lipo battery. So the drone endurance time will increased by 20%-35% by using the semi-solid state battery.

The semi-solid state battery supports Max.10C discharge and Max. 2C charge, there is no obvious heating during 7C discharge. The recommended discharge rate is 1C-5C to achieve the maximum discharge capacity, charging with 1C current to improve battery life.

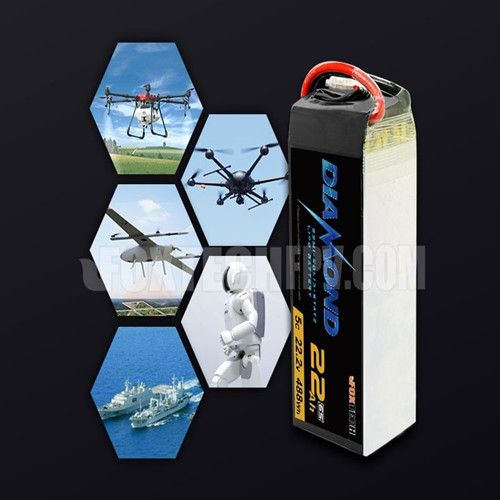

The Semi-solid State battery is suitable for most UAVs or other electrical equipment that requires long endurance time: Agriculture drone, Industrial multicopter and VTOL, Robots, Surface ship etc. Like GAIA 160 series drone, GAIA160S hexacopter, RHEA 160 hexacopter, Great Shark VTOL and Baby Shark VTOL, by using semi-solid state battery the flight time will be greatly increased!

Product Details

Voltage: 22.2V
Capacity: 22000mAh
Continuous Discharge: 5C
Max.Discharge: 10C
Charge: 1C
Energy: 448.4Wh
Energy density: 251.7Wh/kg

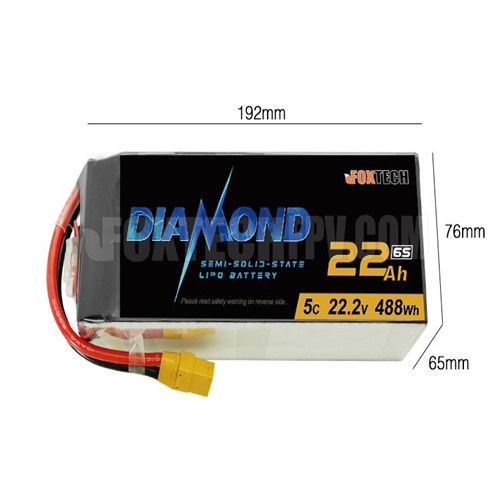

Size: 19x6.5x7.5cm
Weight: 1900g
Plug: XT90
Working Condition Temperature:
Charge: 0℃～45℃
Discharge: -10℃～55℃
