Pixhawk2.4.8 PX4 32 Bits Flight Controller 433Mhz Telemetry With Import M8N GPS PPM Buzzer OTG OSD Power Module Kit
| Part No.: | QA-PIX248-433Mhz |
| Manufacturer: | Feixiang |
Send to a friend
Features
- Advanced 32 bit ARM CortexM4 high performance processer, can operate NuttX RTOX real time operation system
- 14 PWM/ Servo Output
- Bus interface(UART,I2C,SPI,CAN)
- Intergrated back up power and lose efficacy controller, main controller lose efficacy can safely alter to back up control
- Providing automatic and manual mode
- Providing redundant power supply input and failover
- Multicolor LED light
- Providing multi sound buzzer interface
- Micro SD records flying data
Product Details
Processor:
- 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
- Main frequency: 168MHZ, 256K RAM
- 32 bit STM32F103 back up processor
built-in Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis 14 acceleration/magnetometer
- MPU6000 6 axis acceleration/magnetometer
- MS5611 high precision barometer

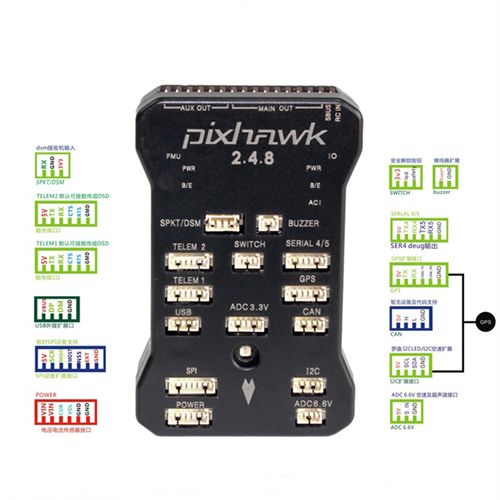

data Interface:
- 25 UART（Serial port）, one Support high power, two have hardware flow control
- Two CAN/0 Interface（One has internal 3.3 transceiver and the other is on expansion interface）
- Satellite receiver compatible input:allow use Spektrum remote control receiver
- Futaba SBUS compatible input and output
- PPM sum signal input
- RSSI(PWM or voltage) output
- I2C/SPI Serial port
- Two 3.3V and One 6.6V Voltage signal simulation input
- built-in MICRO USB interface as well external micro USB port expansion
- 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
- Main frequency: 168MHZ, 256K RAM
- 32 bit STM32F103 back up processor
built-in Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis 14 acceleration/magnetometer
- MPU6000 6 axis acceleration/magnetometer
- MS5611 high precision barometer
data Interface:
- 25 UART（Serial port）, one Support high power, two have hardware flow control
- Two CAN/0 Interface（One has internal 3.3 transceiver and the other is on expansion interface）
- Satellite receiver compatible input:allow use Spektrum remote control receiver
- Futaba SBUS compatible input and output
- PPM sum signal input
- RSSI(PWM or voltage) output
- I2C/SPI Serial port
- Two 3.3V and One 6.6V Voltage signal simulation input
- built-in MICRO USB interface as well external micro USB port expansion

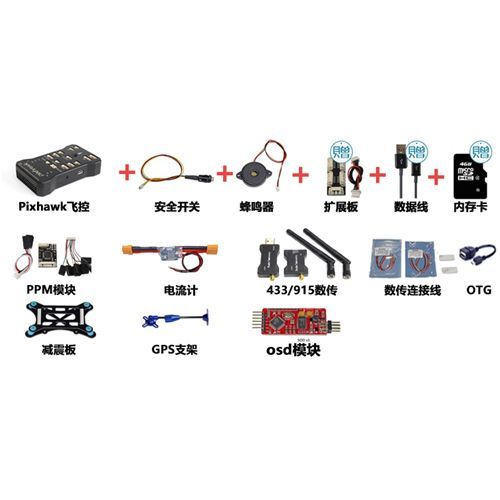

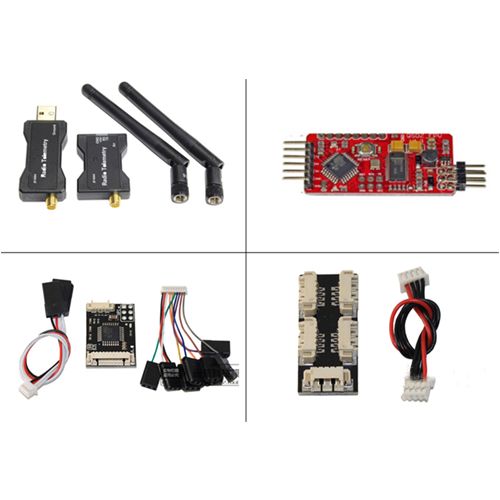

Item Packing
Pixhawk 2.4.8 32 bit Flight Controller x1
M8N GPS Module x 1
Safety button x 1
Buzzer x 1
Splitter Expand Module x 1
USB Data Cable x 1
Storage card x 1
PPM module x 1
Power Module x 1
433Mhz Data Transmission Module x 1
Data Transmission line x 1
OTG Cable x 1
Shock Absorber x 1
GPS Folding Holder x 1
Mini OSD x 1
M8N GPS Module x 1
Safety button x 1
Buzzer x 1
Splitter Expand Module x 1
USB Data Cable x 1
Storage card x 1
PPM module x 1
Power Module x 1
433Mhz Data Transmission Module x 1
Data Transmission line x 1
OTG Cable x 1
Shock Absorber x 1
GPS Folding Holder x 1
Mini OSD x 1

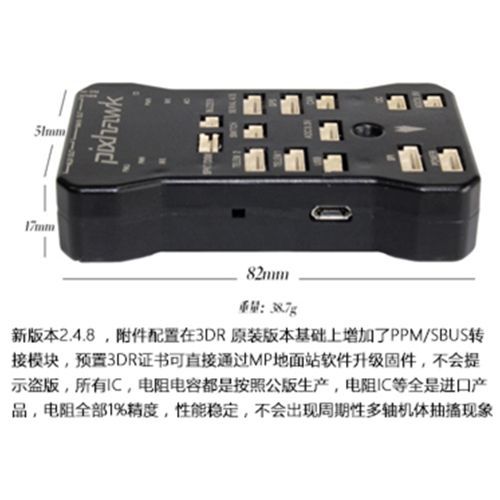

Detailed Images
