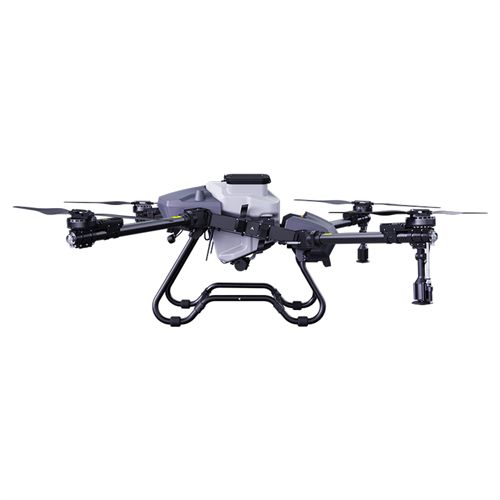

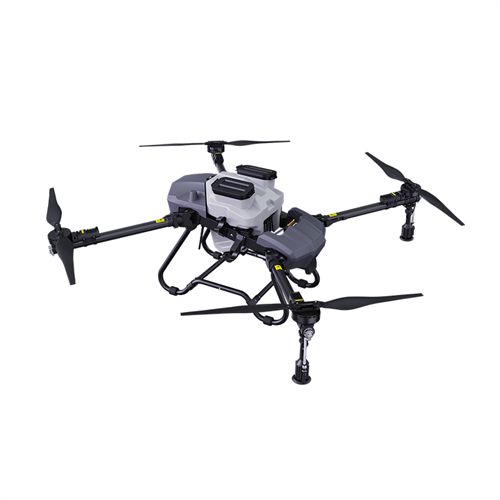

EFT Z30 4 Axis 30KG 30L Agricultural Drone With Camera and Transmitter For Spraying Fruit Trees

EFT Z30 4 Axis 30KG 30L Agricultural Drone With Camera and Transmitter For Spraying Fruit Trees
Part No.: EFT-Z30-J
Manufacturer: EFT

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

With newly upgraded high-strength truss structure, wireless integrated flight control, large-flow impeller pumps and water-cooled centrifugal nozzles. The aircraft is deep integration of software and hardwares.

Product Details

Drone System: Z30
Unloaded Spraying drone weight (without batteries): 29.8kg
Unloaded Spraying drone weight(with batteries): 40kg
Unloaded Spreading drone weight (without battery) : 30.5kg
Unloaded Spreading drone weight(without battery)：40.7kg
Max Take-off weight: 70kg
↑ ( The weight parameters vary by ±1kg according to the final product configuration.)
Wheelbase: 2025mm

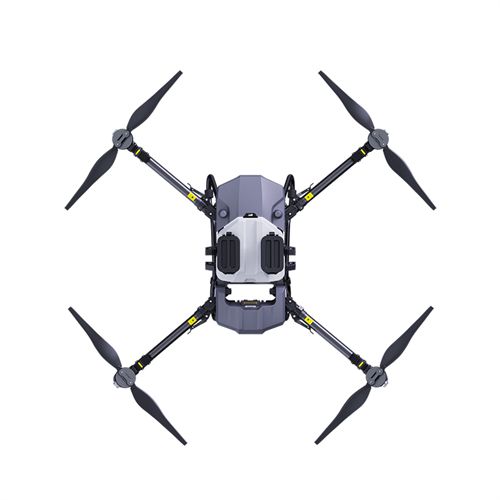

Expand Size
Spraying drone：2435*2541*752mm
Spreading drone：2435*2541*774mm

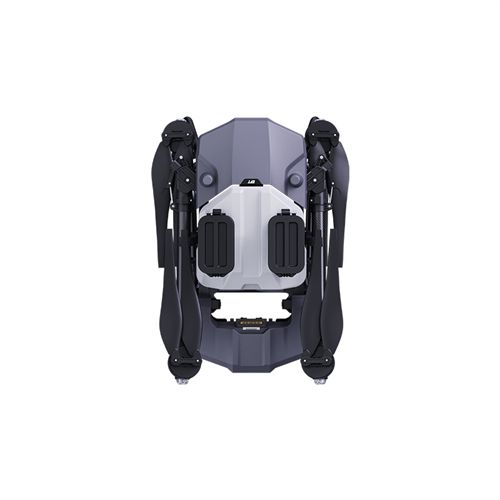

Folded size
Spraying drone：979*684*752mm
Spreading drone：979*684*774mm
No-load hovering time: 17.5min（Test by14S 30000mah）
Full load hovering time: 7.5min（Test by 14S 30000mah）
Working temperature：0-40℃

SPRAYING SYSTEM
Spaying tank：30L
Water Pump：Volt：12-18S Power：30W*2 Max flow：8L/min*2
Nozzle：Vollt：12-18S Power：500W*2 Atomized particle size：50-500μm
Spray width：4-8m

SPREADING SYSTEM
Spreading tank：50L
Max load：30kg
Applicable granule：0.5-6mm dry solids
Spread width：8-12m

MOTOR SYSTEM
Model：11115
Volt：14S
KV：95kv
Maximum power：7350W
Constant power：Constant Power
Propeller size：43inch

FLIGHT CONTROL
Operating Voltage：12-80V
Working temperature：-10~60℃
RTK：Horizontal ±0.1m，Vertical ±0.1m
GPS：Horizontal ±1.5m，Vertical ±0.5m
Wind resistance level：Sustained wind：level 4，Gust：level 5

REMOTE CONTROL
Resolution：1080*1920
display screen：5.5inch
Working time：12h
Charging time：5h（20W）
Control distance：3km(3mHeight without shelter)
Weight：850g

RECOMMENDED BATTERY
Volt: 14S
Capacity: 30000mah
Weight: 10kg

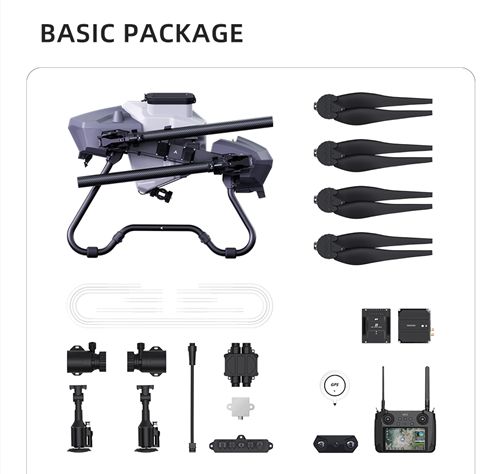

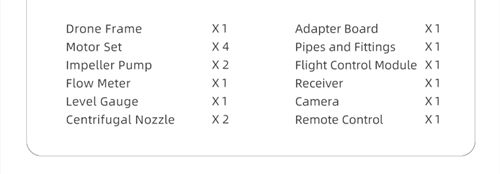

Item Packing

Drone frame x1
Motor set x4
Impeller pump x2
Flow meter x1
Level gauge x1
Centrifugal nozzle x2
Adapter board x1
Pipes and fittings x1
Flight control x1
Receiver module x1
Camera x1
Remote control x1

Detailed Images
