EFT Z50 4 Axis 50KG 50L Agricultural Drone With Camera and RTK Obstacle Avoidance Radar For Spraying Fruit Trees

EFT Z50 4 Axis 50KG 50L Agricultural Drone With Camera and RTK Obstacle Avoidance Radar For Spraying Fruit Trees
Part No.: EFT-Z50-B
Manufacturer: EFT

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

With newly upgraded high-strength truss structure, wireless integrated flight control, large-flow impeller pumps and water-cooled centrifugal nozzles. The aircraft is deep integration of software and hardwares.

Product Details

Drone System: Z50
Unloaded Spraying drone weight (without batteries): 31.5kg
Unloaded Spraying drone weight(with batteries): 45kg
Unloaded Spreading drone weight (without battery) : 32.5kg
Unloaded Spreading drone weight(without battery)：46kg
Max Take-off weight: 95kg
↑ ( The weight parameters vary by ±1kg according to the final product configuration.)
Wheelbase: 2272mm
Expand Size
Spraying drone：2845*2718*830mm
Spreading drone：2845*2718*890mm

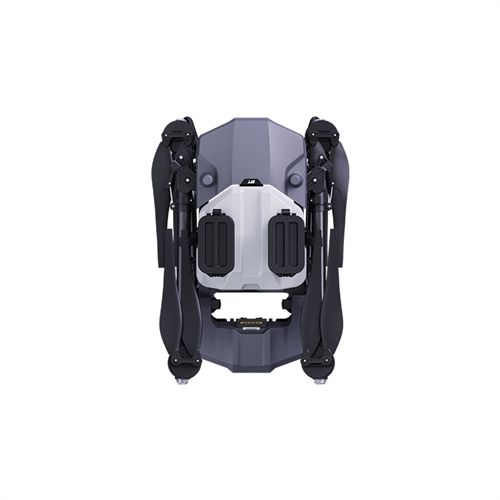

Folded size
Spraying drone：1066*677*830mm
Spreading drone:1066*677*890mm
No-load hovering time: 20min（Test by18S 30000mah）
Full load hovering time: 7min（Test by18S 30000mah）
Working temperature：0-40℃

SPRAYING SYSTEM
Spaying tank：50L（recommend 45L）
Water Pump：Volt：12-18S Power：30W*2 Max flow：8L/min*2
Nozzle：Vollt：12-18S Power：500W*2 Atomized particle size：50-500μm
Spray width：4-8m

SPREADING SYSTEM
Spreading tank：70L
Max load：50kg
Applicable granule：0.5-6mm dry solids
Spread width：8-12m

MOTOR SYSTEM
Model：11122
Volt：18S
KV：60kv
Maximum power：9730W
Constant power：3100w
Propeller size：48inch

FLIGHT CONTROL
Operating Voltage：12-80V
Working temperature：-10~60℃
RTK：Horizontal ±0.1m，Vertical ±0.1m
GPS：Horizontal ±1.5m，Vertical ±0.5m
Wind resistance level：Sustained wind：level 4，Gust：level 5

REMOTE CONTROL
Resolution：1080*1920
display screen：5.5inch
Working time：12h
Charging time：5h（20W）
Control distance：3km(3mHeight without shelter)
Weight：850g

RECOMMENDED BATTERY
Volt: 18S
Capacity: 30000mah
Weight: 13.5kg

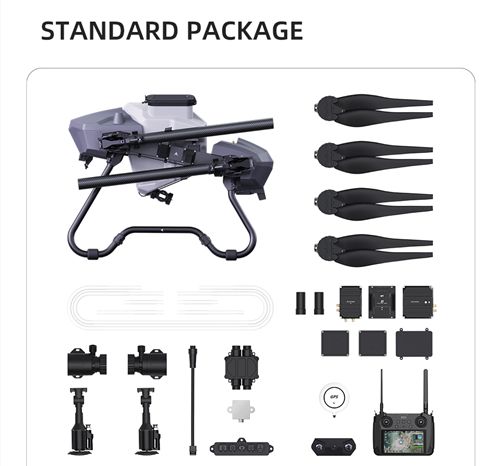

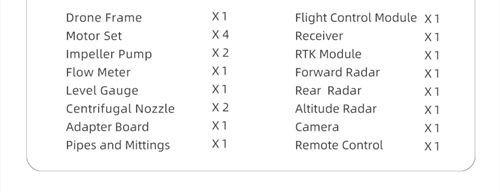

Item Packing

Drone frame x1
Motor set x4
Impeller pump x2
Flow meter x1
Level gauge x1
Centrifugal nozzle x2
Adapter board x1
Pipes and fittings x1
Flight control x1
Receiver module x1
RTK module x1
Forward radar x1
Front radar x1
Altitude radar x1
Camera x1
Remote control x1

Detailed Images
