Foxeer Arrow Micro Pro 600TVL FPV CCD Camera with OSD 1.8mm Lens NTSC For FPV Racing Drone Black

Foxeer Arrow Micro Pro 600TVL FPV CCD Camera with OSD 1.8mm Lens NTSC For FPV Racing Drone Black
Part No.: FO-HS1209-BK
Manufacturer: Foxeer

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

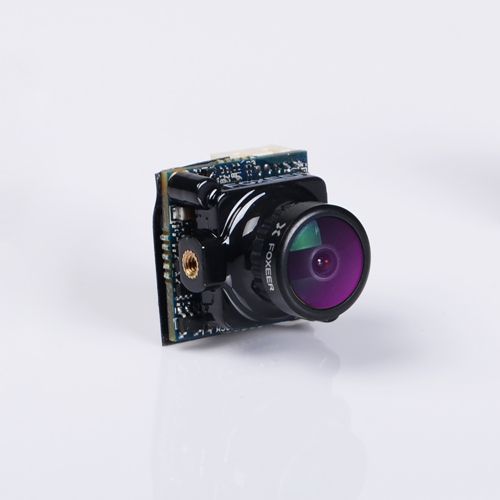

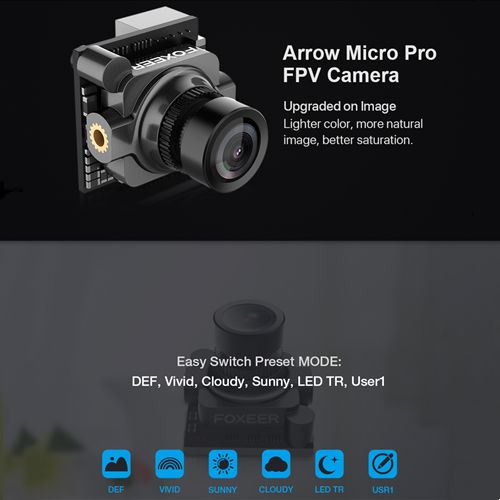

Foxeer Arrow Pro Micro Camera, Tremendously small and light, yet extremely capable and at a better price point!

Coming in at only 5.3 grams makes it even lighter than the Runcam Swift Micro Camera and has been upgraded with lighter color, more natural image, and better saturation as opposed to the previous version of the Foxeer Arrow Micro.

This camera is a great option for any one wanting the best performance out their micro build.

Product Details

Solution：Sony 1/3" CCD Sensor + Nextchip 2040 DSP
Camera Color：Black
Pixel：NTSC: 768*494
Tv System：NTSC
Resolution：600YVL(Color)
Synchronization：Internal
Video Output：CVBS Analog Signal
FOV：1.8mm FOV: 160°
Shutter Speed：Auto
Minimum Illumination：0.01Lux
WDR：DWDR 90dB
DNR：2D DNR

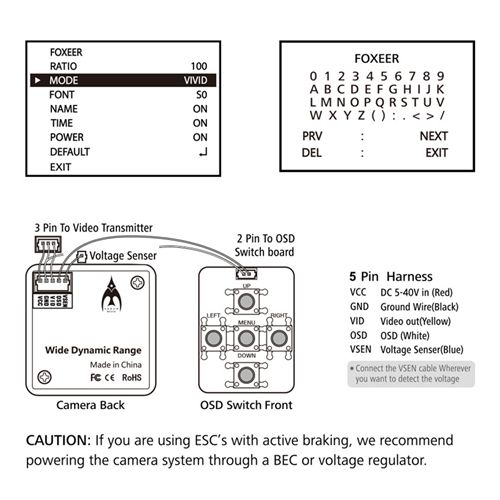

OSD Programming Board：Support
DAY/NIGHT：EXT/Auto/Color/B&W
Flight OSD：Name Voltage Time
Input Voltage：5V~40V
Power Consumption：75mA/12V 166mA/5V
Working Temperature：-10°~50°C RH90% MAX
Working Humidity：20~80%
Storage Temperature：-20°~70°C
Dimension：19*19mm
Weight：5.3g(Exclude cable)

Item Packing

1 X Camera
1 x Manual
1 x OSD board
1 x servo cable

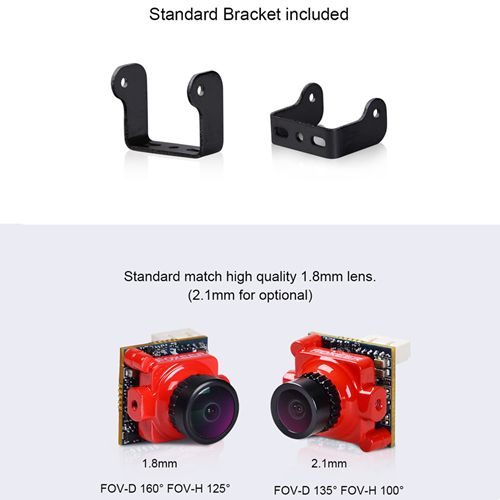

1 x bracket

Detailed Images
