RunCam Swift2 600TVL PAL FPV Camera Integrated OSD 2.3mm Lens DC 5-36V Support Audio
Part No.: | XP136-P |
Manufacturer: | Runcam |
Send to a friend
Features
RunCam Swift2 600TVL PAL FPV Camera Integrated OSD 2.3mm Lens DC 5-36V Support Audio
Product Details
Model RunCam Swift 2
Image Sensor 1/3" SONY Super HAD II CCD
Horizontal Resolution 600TVL
Lens 2.3mm 150°
Signal System PAL
Integrated OSD YES
Integrated MIC YES
S/N Ration >60dB(AGC OFF)
Electronic Shutter Speed PAL:1/50~100,000; NTSC:1/60~100,000
AutoGain Control(AGC) YES
Back light compensation(BLC) YES
Min.illumination 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR
Day/Night Color / Auto / B&W
Power DC 5 to 36V
Net weight 14g
Dimensions 28.5mm * 26mm * 26mm
Image Sensor 1/3" SONY Super HAD II CCD
Horizontal Resolution 600TVL
Lens 2.3mm 150°
Signal System PAL
Integrated OSD YES
Integrated MIC YES
S/N Ration >60dB(AGC OFF)
Electronic Shutter Speed PAL:1/50~100,000; NTSC:1/60~100,000
AutoGain Control(AGC) YES
Back light compensation(BLC) YES
Min.illumination 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR
Day/Night Color / Auto / B&W
Power DC 5 to 36V
Net weight 14g
Dimensions 28.5mm * 26mm * 26mm

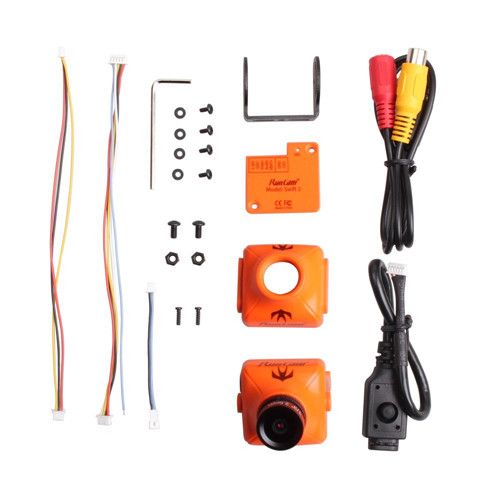

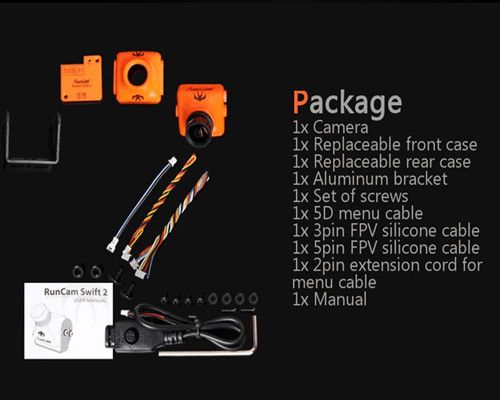

Item Packing
1x Camera
1x Replaceable front case
1x Replaceable rear case
1x Aluminum bracket
1x Set of screws
1x 5D menu cable
1x 3pin FPV silicone cable
1x 5pin FPV silicone cable
1x 2pin extension cord for menu cable
1x Manual
1x Replaceable front case
1x Replaceable rear case
1x Aluminum bracket
1x Set of screws
1x 5D menu cable
1x 3pin FPV silicone cable
1x 5pin FPV silicone cable
1x 2pin extension cord for menu cable
1x Manual

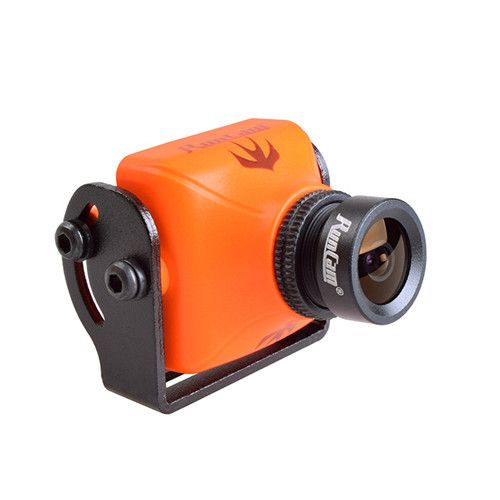

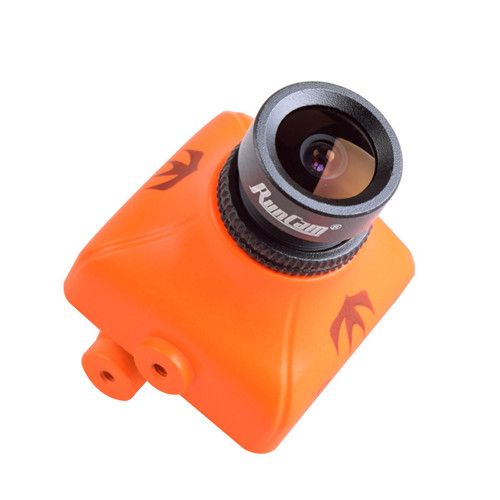

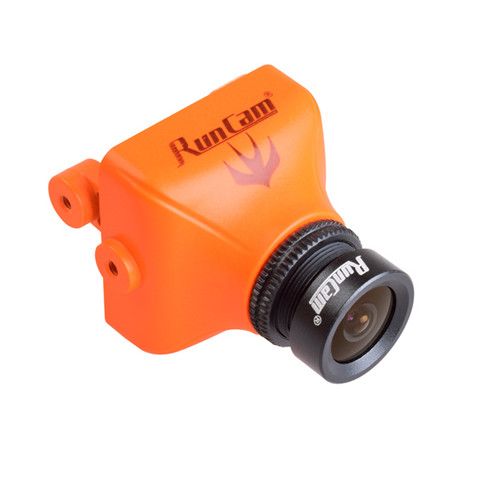

Detailed Images
