Foxeer Standard/Mini Predator V4 1.8mm Super WDR 4ms latency FPV Racing Camera
| Part No.: | HS1226-1.8MM |
| Manufacturer: | Foxeer |
Send to a friend
Features
Super WDR function
Harness separate video and OSD ports
Seven Languages
Multi-functional bracket
Low latency
No Jello
1000TVL
4:3 / 16:9 (Switchable)
NTC / PAL (Switchable)
PAL 50ftps / NTSC 60fps
Supports 5V to 40V DC input
Harness separate video and OSD ports
Seven Languages
Multi-functional bracket
Low latency
No Jello
1000TVL
4:3 / 16:9 (Switchable)
NTC / PAL (Switchable)
PAL 50ftps / NTSC 60fps
Supports 5V to 40V DC input
Product Details
Sensor Type: CMOS ⅓
Scale: 4:3 / 16:9 Switchable
TV System: PAL / NTSC Switchable
Resolution: 1000TVL
Shutter Speed (CCD IRIS): PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
Video Out: CVBS
Min. Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR
WDR: 100dB
Day / Night Shift: Auto / External / Color / Black and White
Flight OSD: Voltage / Cam Title / Time
Power Requirement: 5 - 40V DC
Languages: English / Pyccknn / Espanol / Italiano / Francais / Polskzm / Portugues
Working Temperature: -10deg C~+50deg C RH90% Max
Working Humidity: 20~80%
Storage Temperature: -20degC~+70degC
Storage Humidity: 20~95%
Dimensions: 28.0mm Wide / 21.8mm Tall
Weight: 8.7g
Scale: 4:3 / 16:9 Switchable
TV System: PAL / NTSC Switchable
Resolution: 1000TVL
Shutter Speed (CCD IRIS): PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
Video Out: CVBS
Min. Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR
WDR: 100dB
Day / Night Shift: Auto / External / Color / Black and White
Flight OSD: Voltage / Cam Title / Time
Power Requirement: 5 - 40V DC
Languages: English / Pyccknn / Espanol / Italiano / Francais / Polskzm / Portugues
Working Temperature: -10deg C~+50deg C RH90% Max
Working Humidity: 20~80%
Storage Temperature: -20degC~+70degC
Storage Humidity: 20~95%
Dimensions: 28.0mm Wide / 21.8mm Tall
Weight: 8.7g
Item Packing
1x Predator Mini V4 FPV Camera
2x Mounting Brackets
1x Servo Cable for Foxeer ClearTX VTX
1x Servo cable for TBS Unify VTX
1x 2pin OSD Cable
1x OSD Board
1x Mounting Screw Set
1x User Manual
2x Mounting Brackets
1x Servo Cable for Foxeer ClearTX VTX
1x Servo cable for TBS Unify VTX
1x 2pin OSD Cable
1x OSD Board
1x Mounting Screw Set
1x User Manual

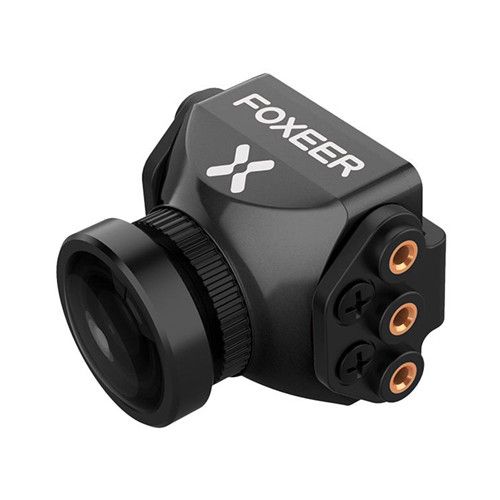

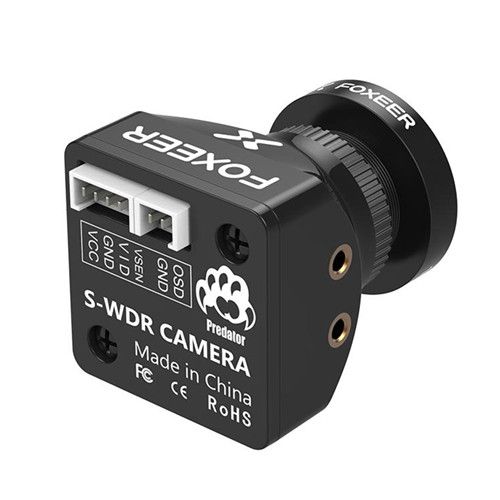

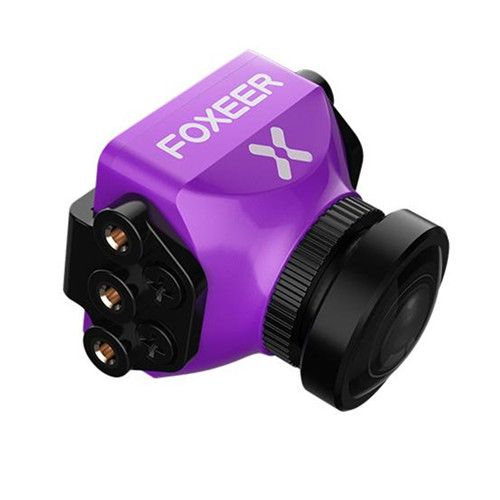

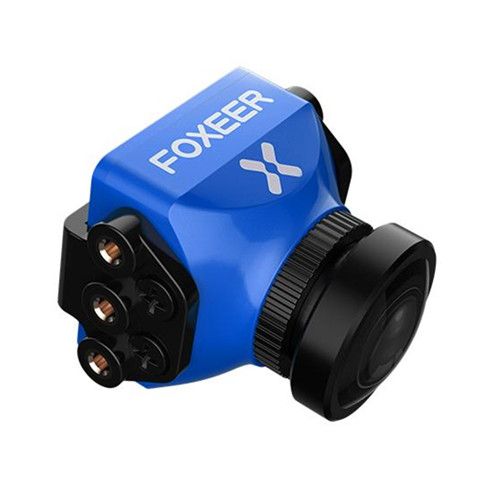

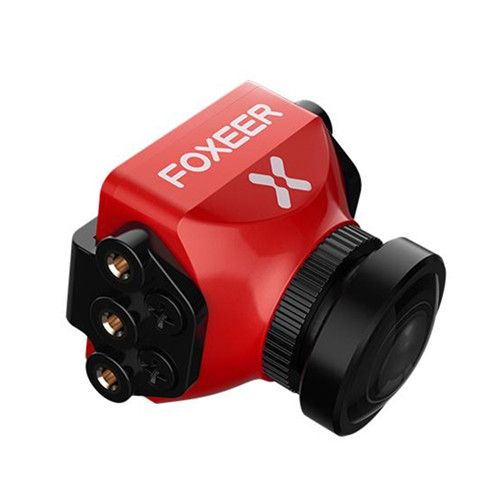

Detailed Images
