RunCam Micro Sparrow 2 Pro 700TVL 4:3 Micro CMOS FPV camera Super WDR OSD 2.1mm Lens for Racing Drone
| Part No.: | Sparrow-2Pro |
| Manufacturer: | Runcam |
Send to a friend
Features
RunCam Micro Sparrow 2 Pro 700TVL 4:3 Micro CMOS FPV camera Super WDR OSD 2.1mm Lens for Racing Drone
Product Details
Model: RunCam Micro Sparrow 2 Pro
Image Sensor: Super WDR CMOS Sensor
Horizontal Resolution: 700TVL
Lens: 2.1mm FOV150°
Screen Format: 4:3
Signal System: NTSC / PAL
Mirror/Flip: Available
Integrated OSD: Yes
One Touch Scene Setting: Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Min. Illumination: 0.01Lux@1.2F
WDR: Super WDR
Day/Night: Auto
Power: DC 5-36V
Current: 40mA@12V / 110mA@5V
Housing Material: ABS
Net Weight: 2.1mm 9.9g
Dimensions: L19mm*W19mm*H23mm L19mm*W19mm*H25mm
Image Sensor: Super WDR CMOS Sensor
Horizontal Resolution: 700TVL
Lens: 2.1mm FOV150°
Screen Format: 4:3
Signal System: NTSC / PAL
Mirror/Flip: Available
Integrated OSD: Yes
One Touch Scene Setting: Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Min. Illumination: 0.01Lux@1.2F
WDR: Super WDR
Day/Night: Auto
Power: DC 5-36V
Current: 40mA@12V / 110mA@5V
Housing Material: ABS
Net Weight: 2.1mm 9.9g
Dimensions: L19mm*W19mm*H23mm L19mm*W19mm*H25mm
Item Packing
FPV Camera x 1
Aluminum bracket x 1
6pin FPV silicone cable x 1
OSD Key-press Board x 1
Set of screws x 1
Manual x 1
Aluminum bracket x 1
6pin FPV silicone cable x 1
OSD Key-press Board x 1
Set of screws x 1
Manual x 1

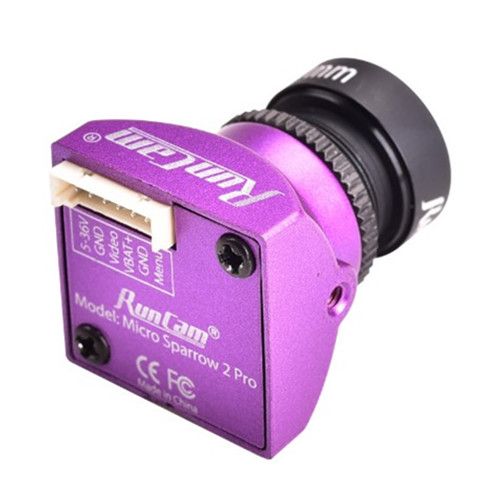

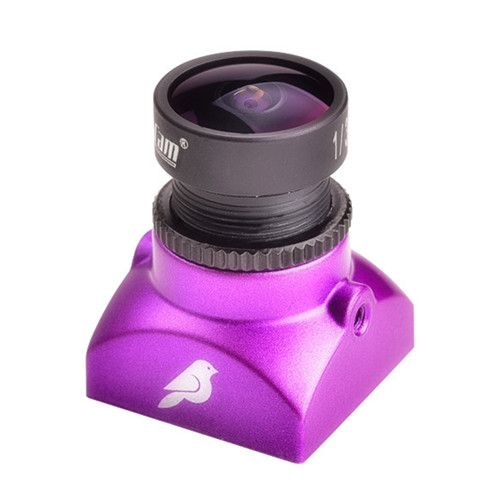

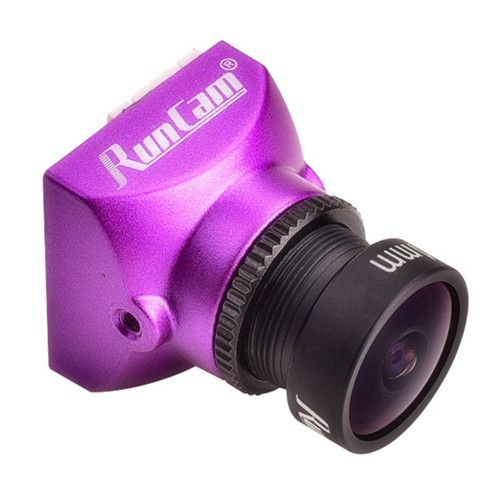

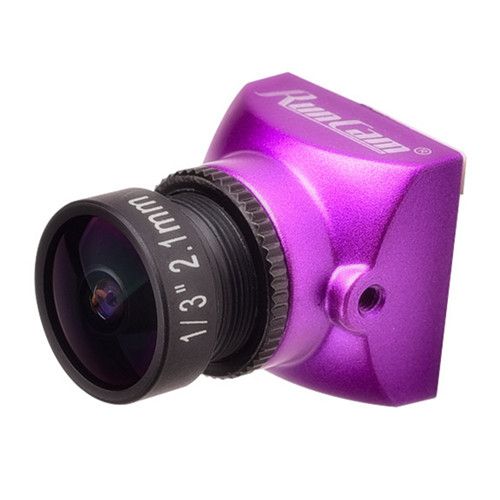

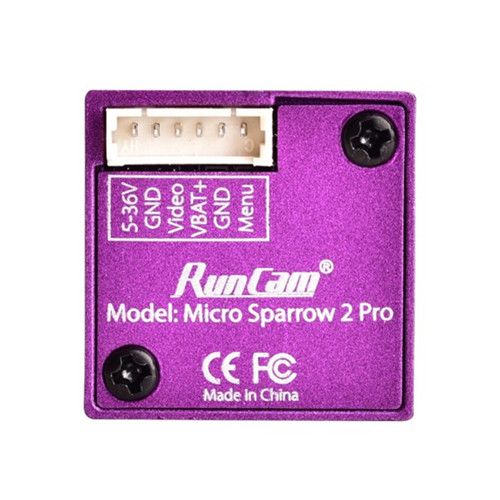

Detailed Images
