FPV 480 Line Super Light 4.8g CMOS Camera MC91 PAL
| Part No.: | FPV-MC91 |
| Manufacturer: | Feixiang |
Send to a friend
Features
1. Small Size: easy to install into narrow room and slim tube, etc.;
2. Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;
3. Camera stand can rotate 360 degrees, all-round monitoring
4. High resolution, high sensitivity, high SNR;
5. Day & night dual mode auto switch;
6. Low Illumination, Low Current and power consumption;
7. CMOS sensor generation IV+DSP chip offer true color & HD video.
2. Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;
3. Camera stand can rotate 360 degrees, all-round monitoring
4. High resolution, high sensitivity, high SNR;
5. Day & night dual mode auto switch;
6. Low Illumination, Low Current and power consumption;
7. CMOS sensor generation IV+DSP chip offer true color & HD video.
Product Details
|
PICK UP ELEMENT |
Single chip 1/4CMOS | |
|
SYSTEM |
PAL |
|
|
NUMBER OF PIXEL |
PAL：720（H）×576（V） |
|
|
SENSOR DIMENSION |
3.584mm（H）×2.688mm（V） | |
|
HORIZONTAL RESOLUTION |
Approximately 480TV Lines | |
|
SENSITIVITY |
0.05Lux/F1.2 | |
|
LENS & VIEW ANGLE |
F1.2 / 90° | |
|
S/N RATIO |
48dB | |
|
AUTO GAIN CONTROL |
OUT | |
|
WHITE BALANCE CONTROL |
OUT | |
|
BACK LIGHT COMPENSATION |
OUT | |
|
VIDEO OUT |
1.0V p-p/75ohm | |
|
AUDIO OUT |
1.0V p-p/1Kohm | |
|
WEIGHT |
4.8g | |
|
SIZE（LXWXH） |
15.5X15.5X20mm; | |
|
WORK CURRENT |
DC12V: 45mA DC5V: 95mA | |
|
POWER REQUIREMENT |
DC:3.6V-24V | |
|
OPERATING TEMPERATURE |
- 10° C ~ +50°C ，less than 90% RH | |
|
Connection |
PIN1-> Red DC5V /12V PIN2-> Black GND PIN3-> Yellow VIDEO OUT PIN4-> White AUDIO OUT | |
Item Packing
camera with Futaba connector X1

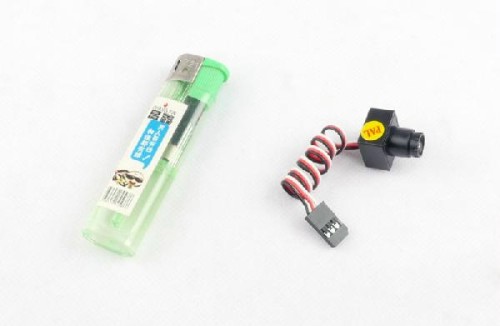

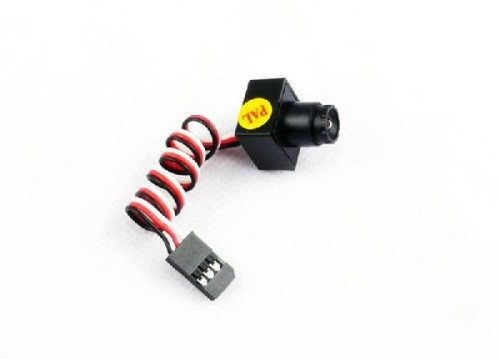

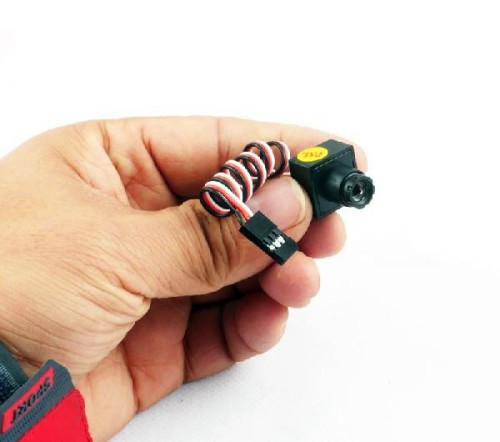

Detailed Images
