TL300M FPV Camera Lens for RC Multicopters Photograhy
| Part No.: | FPV-TL300M |
| Manufacturer: | TAROT |
Send to a friend
Features
600TVL mini HD color camera (FPV aerial camera) using 2.8MM 120 degree wide-angle lens focal length of a full glass for mini200 / 250/300 through a small machine, FPV aerial aeromodelling field, monitoring. Products are small, built-in step-down module, can be directly connected 3S11.1V use lithium polymer battery.
Wiring instructions:
- Red DC12V power input connection
- Black ground wire connected to the negative power supply and video
- White connected AV video signal output
Product Details
- Definition: 600TV Lines (HD)
- Effective pixels: PAL = 720 (H) × 576 (V) / NTSC = 720 (H) × 487 (V)
- Video system: NTSC / PAL
- Sensitive chip: 1/3 inch HD Color CMOS
- Video Output: 1.0Vp-p / 75Ω
- Minimum illumination 0.008Lux (ultra low-light)
- Power consumption: 40MA ± 10%
- Operating voltage: DC5-15V ± 10%
- Synchronization System: Internal Synchronization
- SNR: greater than 50dB
- An electronic shutter (N) 1 / 60-1 / 10000s, (P) 1 / 50-1 / 10000s
- Working temperature: 0 ℃ ~ 45 ℃
- Product Specifications:
- 600TVL mini HD color camera x1 (21 x 26 x 30mm ± 3mm) 15g
- Effective pixels: PAL = 720 (H) × 576 (V) / NTSC = 720 (H) × 487 (V)
- Video system: NTSC / PAL
- Sensitive chip: 1/3 inch HD Color CMOS
- Video Output: 1.0Vp-p / 75Ω
- Minimum illumination 0.008Lux (ultra low-light)
- Power consumption: 40MA ± 10%
- Operating voltage: DC5-15V ± 10%
- Synchronization System: Internal Synchronization
- SNR: greater than 50dB
- An electronic shutter (N) 1 / 60-1 / 10000s, (P) 1 / 50-1 / 10000s
- Working temperature: 0 ℃ ~ 45 ℃
- Product Specifications:
- 600TVL mini HD color camera x1 (21 x 26 x 30mm ± 3mm) 15g
Item Packing
-TL300M FPV Camera X 1

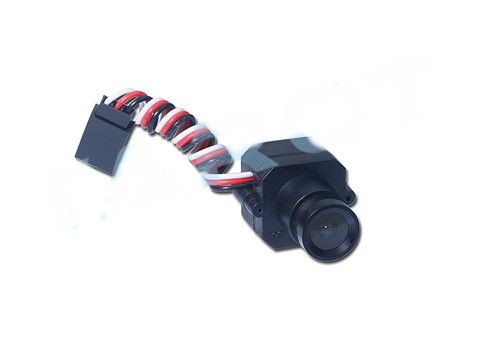

Detailed Images
