Caddx ANT 1200TVL Global WDR OSD 1.8mm Ultra Light FPV Nano Camera 4:3 for RC FPV Tinywhoop Cinewhoop Toothpick Mobula6
| Part No.: | CADDX-ANT4.3 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Caddx ANT 1200TVL Global WDR OSD 1.8mm Ultra Light FPV Nano Camera 4:3 for RC FPV Tinywhoop Cinewhoop Toothpick Mobula6
Product Details
Model：Caddx Ant
Image Sensor：1/3" CMOS Sensor
Horizontal Resolution：1200 TVL
TV System：NTSC or PAL
MENU：Support
IMAGE：4:3
Synchronization：Internal
Electronic Shutter：PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio ：>52dB (AGC OFF)
Video Output：CVBS
Lens：1.8mm
Min. Illumination：0.001Lux@F1.2
Auto Gain Control：YES
BLC：YES
WDR：Global WDR

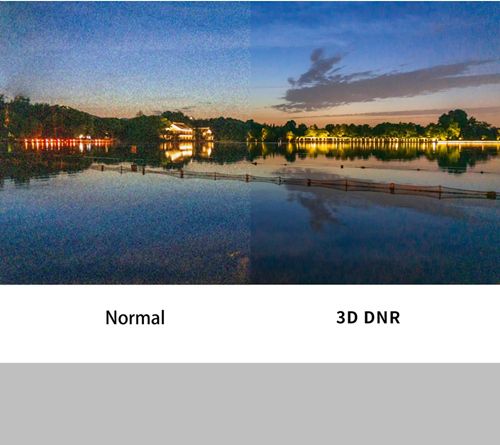

DNR：3D DNR

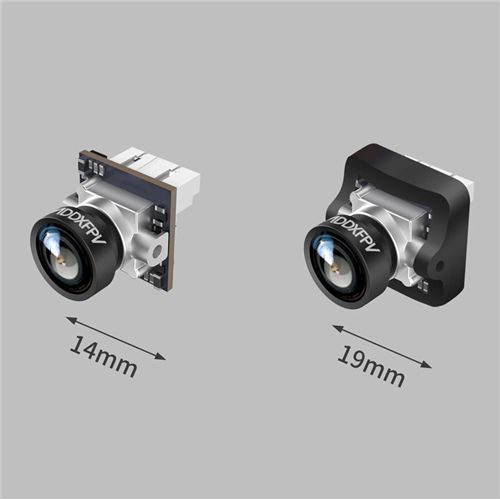

Dimensions：14*14mm(with bracket to 19*19mm)
Wide Power Input：DC 3.7-18V
Work Temperature：-20℃~+60℃
Work Humidity：20%~80%
Weight：2g (N.W.)
Image Sensor：1/3" CMOS Sensor
Horizontal Resolution：1200 TVL
TV System：NTSC or PAL
MENU：Support
IMAGE：4:3
Synchronization：Internal
Electronic Shutter：PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio ：>52dB (AGC OFF)
Video Output：CVBS
Lens：1.8mm
Min. Illumination：0.001Lux@F1.2
Auto Gain Control：YES
BLC：YES
WDR：Global WDR
DNR：3D DNR
Dimensions：14*14mm(with bracket to 19*19mm)
Wide Power Input：DC 3.7-18V
Work Temperature：-20℃~+60℃
Work Humidity：20%~80%
Weight：2g (N.W.)

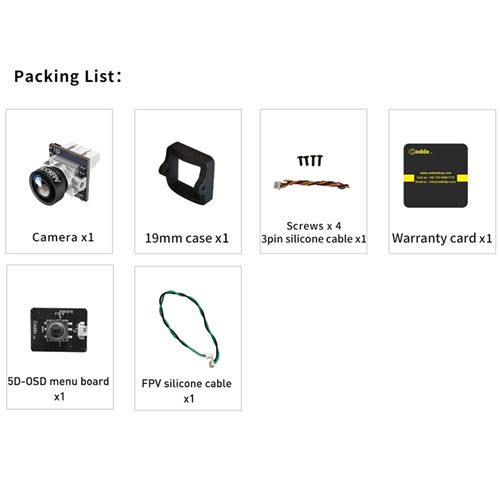

Item Packing
Camera x1
3pin FPV silicone cable x1
Warranty card x1
Expend bracket x1
Screws x 4
3pin FPV silicone cable x1
Warranty card x1
Expend bracket x1
Screws x 4
Detailed Images
