Smart Robot Car > Product details

YB micro:bit smart robot car with IR and Bluetooth App (without microbit）

Part No.:	YB-MB-001
Manufacturer:

Send to a friend

Features

YB micro:bit smart robot is developed with the most popular Micro:bit board as the core controller. Using Micro:bit dot matrix screen as body, the entire vehicle adopts elaborate metal motor, high quality battery and firm bracket to create a compact and beautiful appearance. And it is controlled by Android mobile App remote controller connecting with Micro:bit on-board Bluetooth. We also offer three kinds of comprehensive courses: simple development board experiments, more complex expansion board experiments, and interesting smart robot experiments.It is the best choice for all makers, educators and amateurs.

The car is a collection of Micro:bit board, learning kits, and expansion boards, allowing you to learn Micro:bit from simplest to more complex.

The vehicle model is small and cute. Most of the parts are connected with screw and a few parts are designed with anti reverse socket, which makes installation simple and safe.

Multi-function expansion board with vertical slot structure as chassis of the vehicle, it is equipped with RGB lights, sensors, buzzers, various module interfaces and so on, Besides, it can drive 2 DC motors and 3 servos simultaneously.

It supports multiple functions: tracking, ultrasonic obstacle avoidance, following, light discoloration, singing, playing music, etc.

It can be controlled by IR remote control, and Bluetooth APP remote control by Android mobile.

It supports JavaScript graphical programming, Python and other micro:bit programming methods

More than 30 kinds of experiment courses are provided.

Product Details

Main controller	Micro:bit	Programming software	JavaScript,Python, Mobile phone
Input	Infrared obstacle avoidance sensor, Ultrasonic module, Infrared tracking sensor, Infrared receiving probe	Output	Motor, Buzzer, LED light, Servo, RGB light, RGB programming light
Battery	3.7V, 500mAh	Working time	30mins
Distance measuring module	Vertical ultrasonic module	Motor	1:10 DC geared motor
Remote control	IR/Bluetooth remote control	Assembly method	Non-weldable installation
Robot size	96120110mm	Robot Weight	157g
Suitable age	over 10 years old

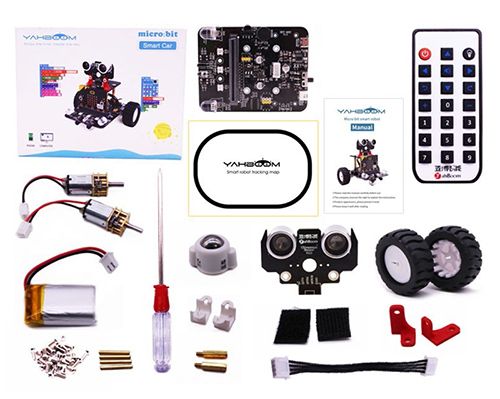

Item Packing

1 x breakout

1 x vertical ultrasonic sensor(Include cable)

2 x motor

1 x acrylic board for ultrasonic sensor

2 x tyre

1 x micro usb cable

1 x Infrared remote control

1 x screwdriver

4 x M3*40 copper pillar

2 x bracket

1 x lithium battery

2 x magic sticker

1 x instruction manual

1 x universal wheel

2 x motor bracket

n x screw & nut

1 x map

1 x top-grade packing box
