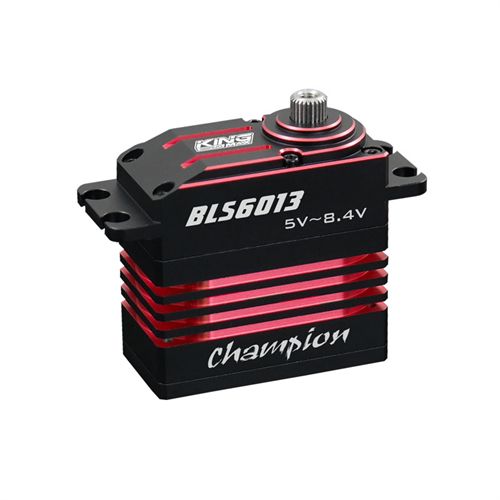

Kingmax BLS6013 Waterproof 85g 60kg.cm Digital Steel Gear Standard Servos For 1/10 RC Crawler Car
| Part No.: | KM-BLS6013 |
| Manufacturer: | KINGMAX |
Send to a friend
Features

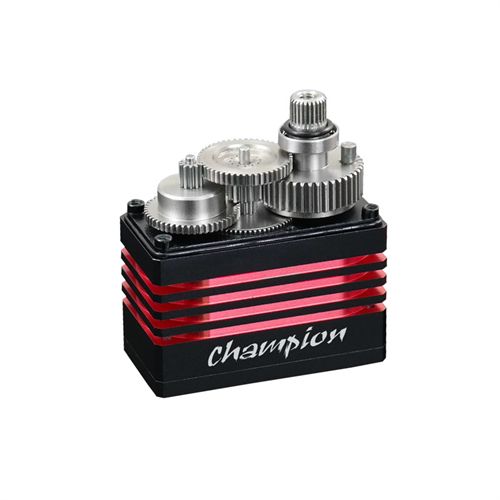

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Dual ball bearings
-- Waterproof
Product Details
Item：BLS6013
Gear：Steel gear
Spline：25T
Motor：Brushless motor
Bearing：2BB
Dead band：2μs default
Waterproof：Yes
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequence：1520μs/330hz
Working angle：±90°@500us-2500us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃
SPECIFICATIONS:
Operating Speed (5.0V): 0.20sec/60 degrees
Operating Speed (6.0V): 0.17sec/60 degrees
Operating Speed (7.4V): 0.13sec/60 degrees
Operating Speed (8.4V): 0.12sec/60 degrees
Stall torque(7.4V):60.0kg.cm(833.40oz/in)
Rated working torque(5.0V):18.0kg.cm(250.02oz/in)
Rated working torque(6.0V):21.0kg.cm(291.69oz/in)
Rated working torque(7.4V):26.0kg.cm(361.14oz/in)
Rated working torque(8.4V):31.0kg.cm(430.59oz/in)
Dimensions(L*W*H): 40X20X39.1mm /1.57X0.79X1.52 in
Weight: 85g (2.99oz)
Connector Wire Length: JR310 mm (12.09in)
Item Packing

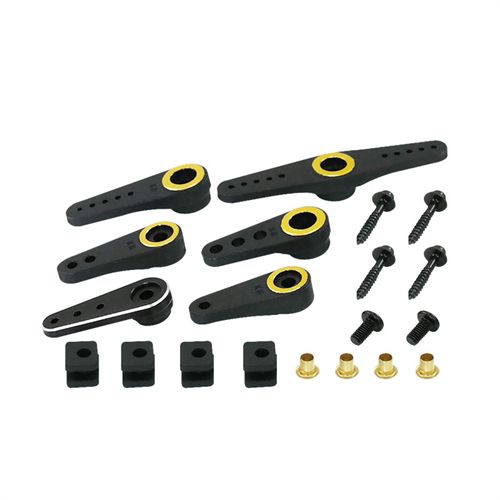

Accessories x 1
Detailed Images
