Power HD R12 12KG High Torgue Brushless Matel Gear Servo for Rc 1/10 Electric Car
| Part No.: | LX-HDR12 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Power HD R12 12KG High Torgue Brushless Matel Gear Servo for Rc 1/10 Electric Car
Product Details
Torque(6.0V): 9.0 kg-cm (125.0 oz/in)
Torque(7.4V): 12.0 kg-cm (166.6 oz/in)
Speed: 0.07 sec (6.0V) │ 0.06 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 41.0 g (1.45 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Titanium & Alu
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：41.0 x 20.0 x 26.4 mm ( 1.61 x 0.79 x 1.04 in)
Torque(7.4V): 12.0 kg-cm (166.6 oz/in)
Speed: 0.07 sec (6.0V) │ 0.06 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 41.0 g (1.45 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Titanium & Alu
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：41.0 x 20.0 x 26.4 mm ( 1.61 x 0.79 x 1.04 in)
Item Packing
Power HD R12 12KG High Torgue Brushless Matel Gear Servo X 1

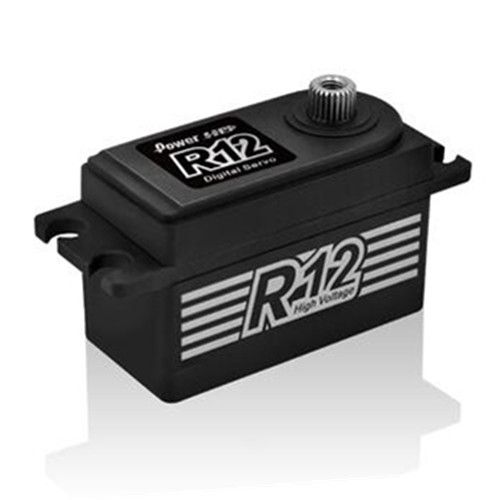

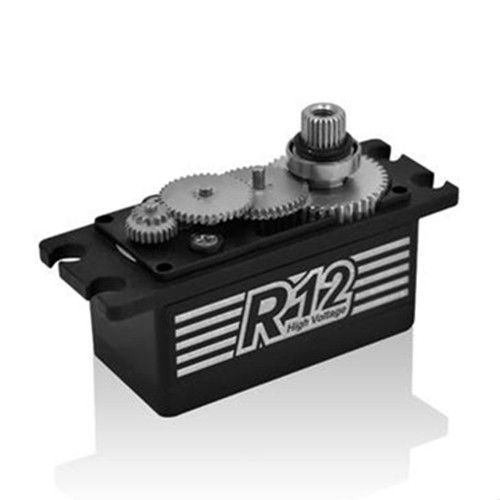

Detailed Images
