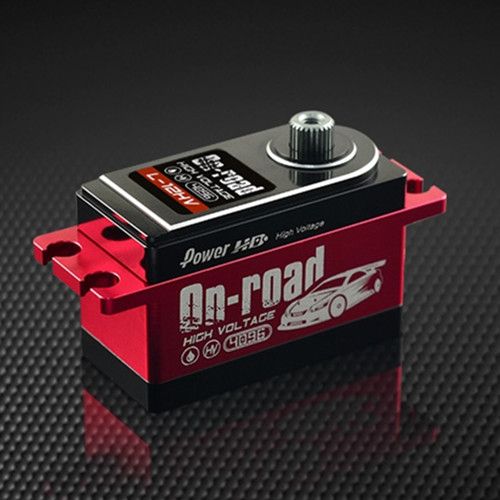

PowerHD Digital High Voltage RC servo L-12HV 12KG 1:10 Buggy Drift Touring RC Car On Road
| Part No.: | L-12HV |
| Manufacturer: | Feixiang |
Send to a friend
Features
L-12HV is our latest low-profile high voltage servo of 2015. 8cm cable is specific to 1/10 EP.

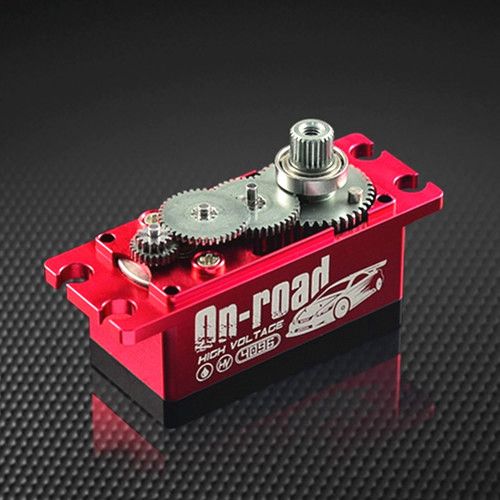

CNC case looks good and allows for cooler temperature but only weights 52g.The gears are compactly placed
on a straight line leading to 30% higher efficient than traditional design.
All PowerHD's drivers around the world are satisfied with its 12kg.cm power and 0.06sec response time at 7.4V.
CNC case looks good and allows for cooler temperature but only weights 52g.The gears are compactly placed
on a straight line leading to 30% higher efficient than traditional design.
All PowerHD's drivers around the world are satisfied with its 12kg.cm power and 0.06sec response time at 7.4V.
Product Details
Torque(6.0V): 9.0 kg-cm (125.0 oz/in)
Torque(7.4V): 12.0 kg-cm (166.6 oz/in)
Speed: 0.07 sec (6.0V) │ 0.06 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 52.0 g (1.83 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Titanium & Alu
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：40.0 x 20.0 x 26.4 mm ( 1.57 x 0.79 x 1.04 in)
Torque(7.4V): 12.0 kg-cm (166.6 oz/in)
Speed: 0.07 sec (6.0V) │ 0.06 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 52.0 g (1.83 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Titanium & Alu
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：40.0 x 20.0 x 26.4 mm ( 1.57 x 0.79 x 1.04 in)

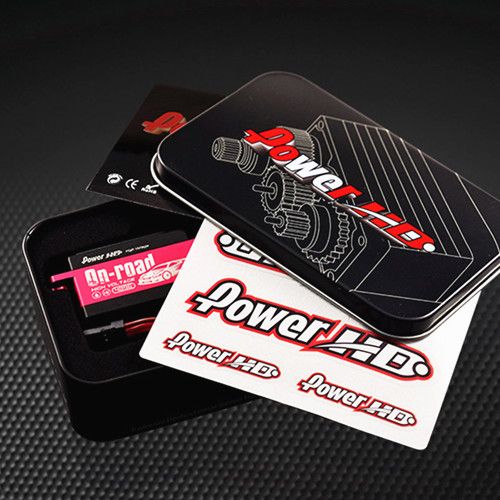

Item Packing
Power HD 12KG High Voltage Servo (1 pc)

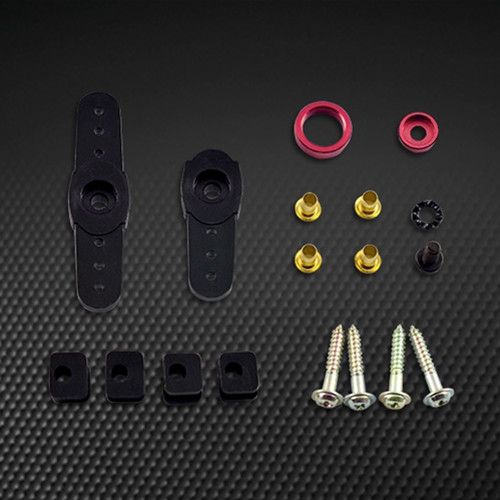

Accessories (1 Set)
Accessories (1 Set)
