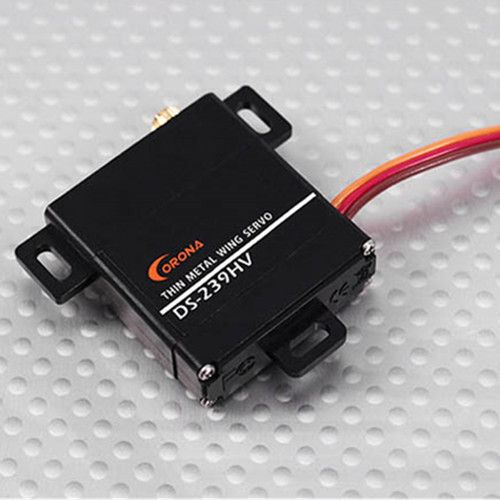

Corona DS239HV Digital Slim Wing Servo (Metal Gear) 4.6kg / 0.13sec / 22g
Part No.: | DS239HV |
Manufacturer: | CORONA |
Send to a friend
Features
Corona DS239HV Digital Slim Wing Servo (Metal Gear) 4.6kg / 0.13sec / 22g
Product Details
Model: DS-239HV
Operating Voltage: 6.0V/7.4V
Operating Current: 300mA / 400mA
Operating Speed: 0.14sec.60°/ 0.13sec.60°
Stall Torque: 4.0kg.cm / 4.6kg.cm
Size: 30x10x34mm
Weight: 22g
Dead Band: ≤3uSec
Operating Travel: 40°/one side pulse traveling 400us
Potentiometer: 3 slider/Direct Drive
Ball bearing: MR85x2
Gear: Metal
Gear Type: Digital
Motor: Brushless
Connector wire: 215mm
Operating Temperature Range: -20°c ~ + 60°c
Spline count: 21
Operating Voltage: 6.0V/7.4V
Operating Current: 300mA / 400mA
Operating Speed: 0.14sec.60°/ 0.13sec.60°
Stall Torque: 4.0kg.cm / 4.6kg.cm
Size: 30x10x34mm
Weight: 22g
Dead Band: ≤3uSec
Operating Travel: 40°/one side pulse traveling 400us
Potentiometer: 3 slider/Direct Drive
Ball bearing: MR85x2
Gear: Metal
Gear Type: Digital
Motor: Brushless
Connector wire: 215mm
Operating Temperature Range: -20°c ~ + 60°c
Spline count: 21
Item Packing

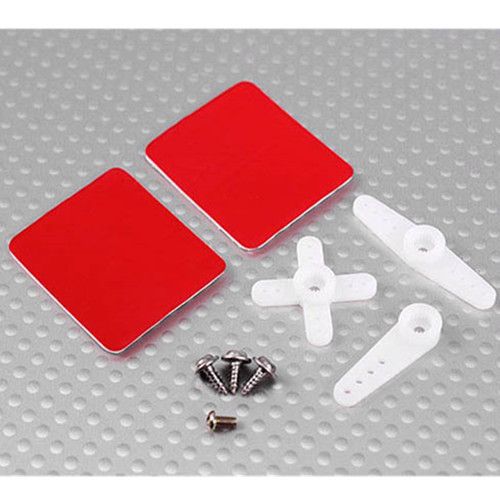

servo with servo horns x 1
Detailed Images
