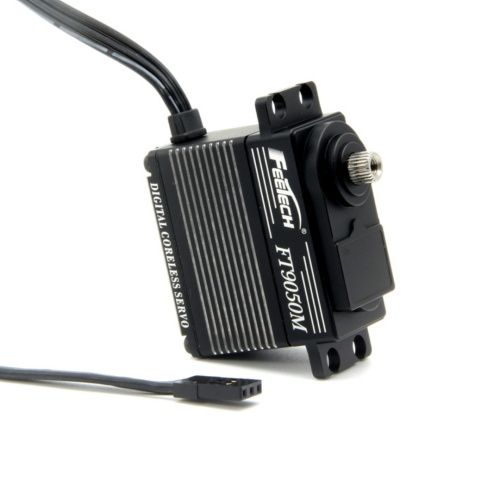

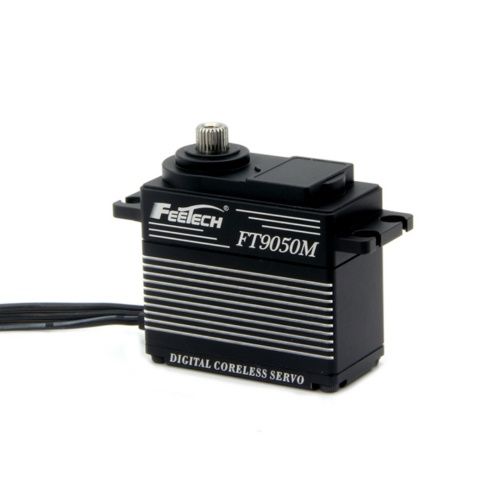

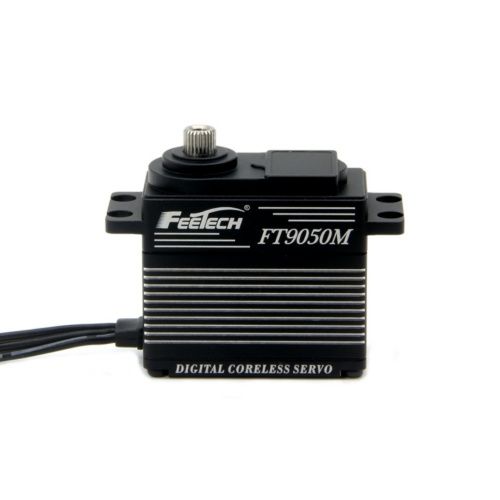

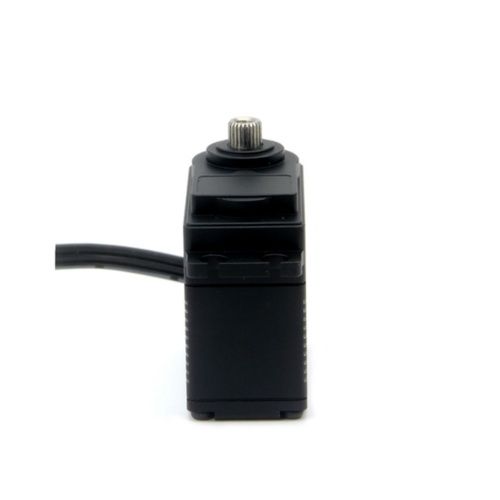

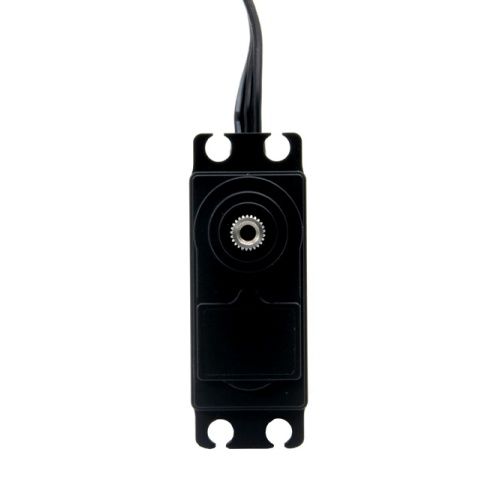

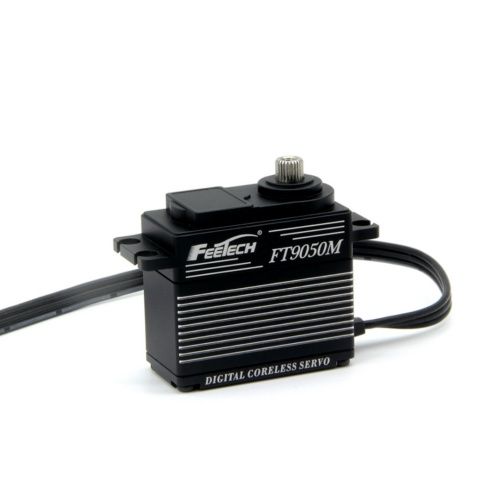

Feetech FT9050M 7.4V 50kg Standard Size 180 Degree Servo Coreless Motor Titanium Gear for RC Off-Road Car Robot Models
| Part No.: | FT-9050-C001 |
| Manufacturer: | Feetech |
Send to a friend
Features
Product Details
Model: FT-9050-C001
Product Name: 7.4V 50KG 180 Degree Servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: A：40mm B：20mm C: 37.6mm
Weight: 75.7g±2g
Gear type: Titanium
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio：1/275
Case: Aluminum
Connector wire: 30±0.5CM
Motor: Coreless Motor
Operating Voltage Range: 6-9V
Idle current (atstopped): 10mA@7.4V
No load speed: 0.078sec/60°(128RPM)@7.4V
Running current(at no load): 500mA@7.4V
Peak stall torque: 50kg.cm@7.4V
Rated torque: 16.5kg.cm@7.4V
Command signal: Pulse width modulation
Control System Type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180±5°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwise(at 500→2500 μsec)
Electronic Protection: Stall 4sec

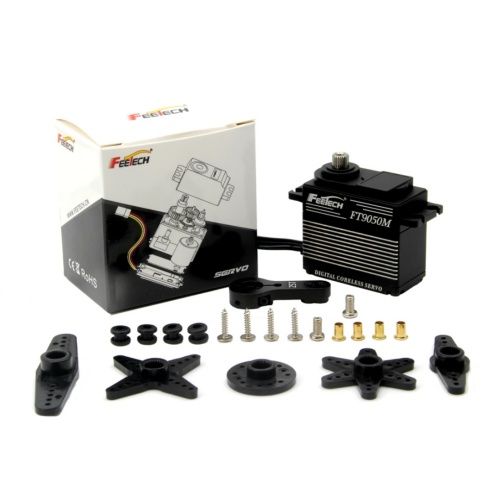

Item Packing
Detailed Images
