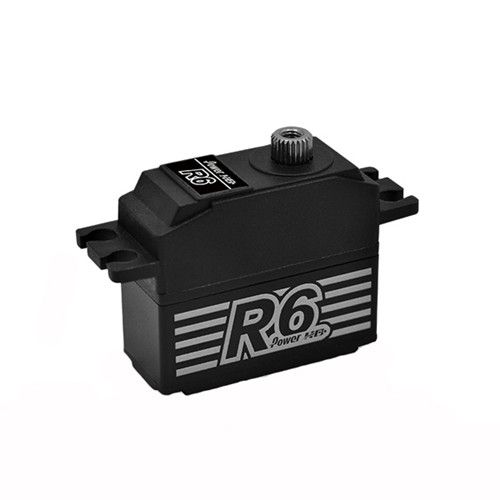

PowerHD R6 1/12 Pancar Servo (compatible with 500 helicopter, Mono 1 boat)
| Part No.: | PHD-R6 |
| Manufacturer: | Feixiang |
Send to a friend
Features
PowerHD newly launched R-series model: R6, 4.8V-8.4V compatible, 7.5KG-CM servo torque, 0.08s speed, only 28.5g weight, fully support the popular 1/12 Pancar, 500 Helicopter and Mono1 model boats.
Product Details
Torque(6.0V): 6.5 kg-cm (90.26 oz/in)
Torque(7.4V): 7.5 kg-cm (104.0 oz/in)
Speed: 0.09 sec (6.0V) │ 0.08 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 28.5 g (1.01 oz)
Bearing Type: Ball Bearing x 2
Motor Type：Coreless Motor

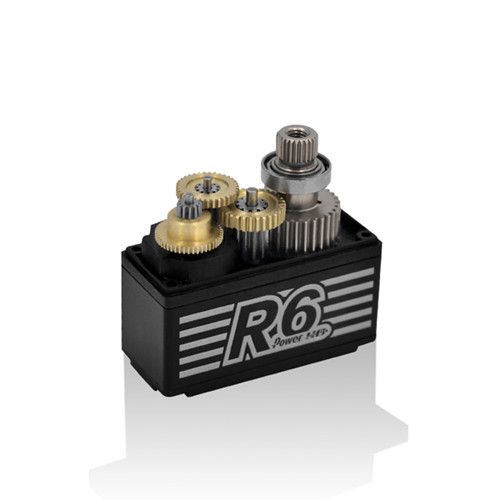

Gear Type：Copper & Aluminum
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)
Torque(7.4V): 7.5 kg-cm (104.0 oz/in)
Speed: 0.09 sec (6.0V) │ 0.08 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 28.5 g (1.01 oz)
Bearing Type: Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Copper & Aluminum
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)
Item Packing
R6 servo X 1

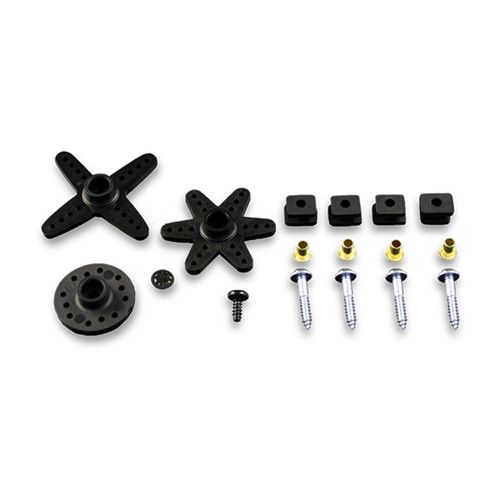

Accessory bag X 1
Accessory bag X 1
