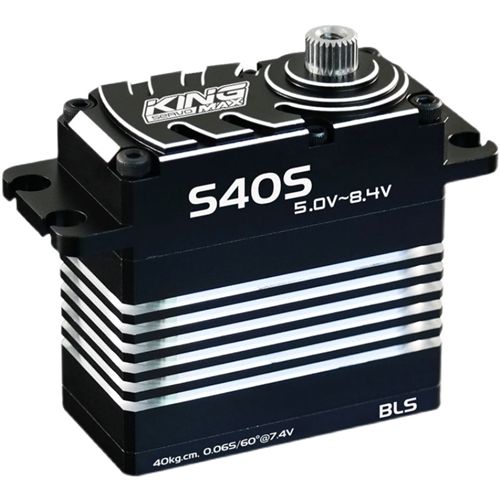

KINGMAX S40S 40kg.cm digital steel gear standard Waterproof high pressure servo for RC Car Fixed Wing
| Part No.: | KM-S40S |
| Manufacturer: | KINGMAX |
Send to a friend
Features

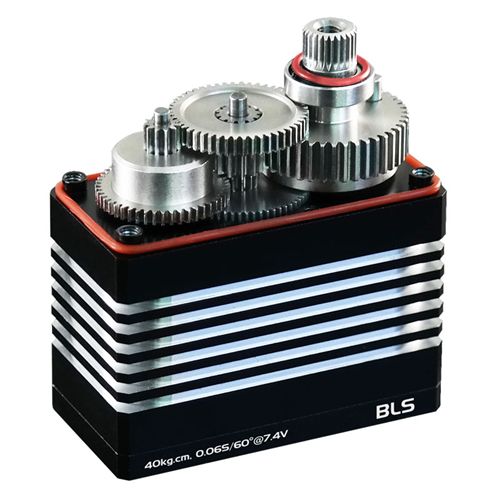

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Dual ball bearings
-- Super long life
-- Waterproof
Product Details
Item：S40S
Gear：Steel gear
Spline：25T
Motor：Brushless motor
Bearing：2BB
Dead band：2μs default
Waterproof：Yes
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequence：1520μs/330hz
Working angle：±63°@800us-2200us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃
Speed(5.0V):0.10sec/60degrees
Speed(6.0V):0.08sec/60degrees
Speed(7.4V):0.06sec/60degrees
Speed(8.4V):0.05sec/60degrees
Stall torque(7.4V):40kg.cm(555.60oz/in)
Maximum working torque(7.4V):30kg.cm(416.70oz/in)
Rated torque(5.0V):16.5kg.cm(229.18oz/in)
Rated torque(6.0V):20.5kg.cm(284.74oz/in)
Rated torque(7.4V):22.0kg.cm(305.58oz/in)
Rated torque(8.4V):25.0kg.cm(347.25oz/in

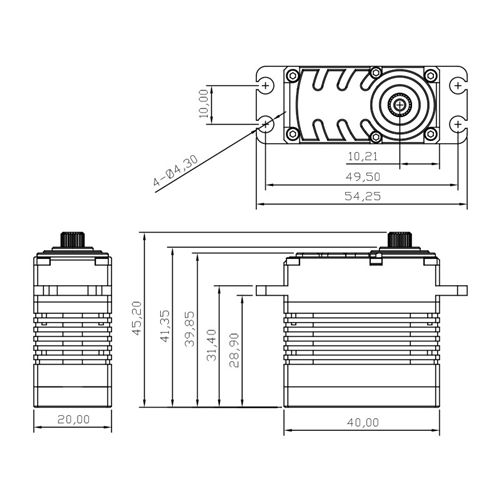

Dimensions:40*20*39.8mm/1.56X0.78X1.55in
Weight:89g(3.13oz)
Connector Wire Length:JR300mm(11.7in)
Transparency plastic box size: 83.5mmx63.5mmx37.5mm weight: 141g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Cross weight:14.55kg
Item Packing
S40S digital standard Waterproof servo x 1

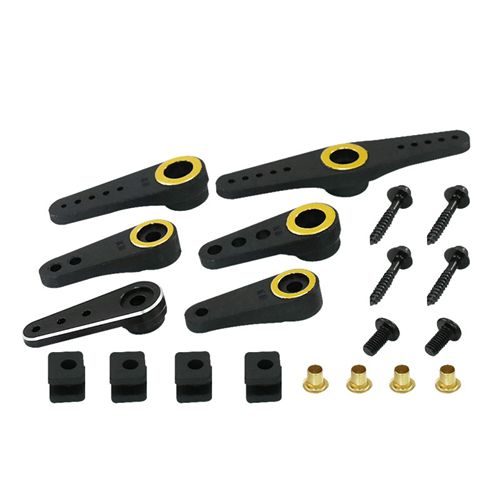

Accessories x 1
Detailed Images
