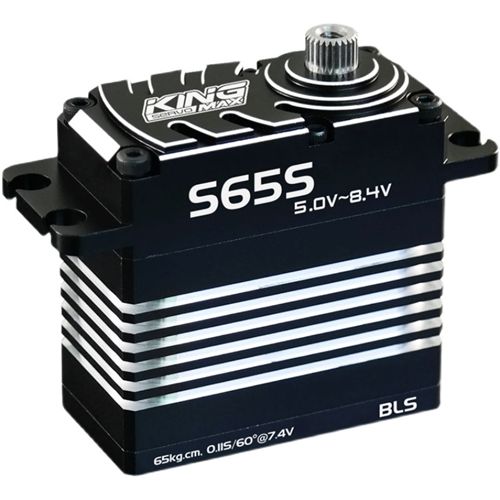

KINGMAX S65S 65kg.cm High pressure servo digital steel gear Industry standard waterproof servo for RC Fixed Wing Climbing Car

KINGMAX S65S 65kg.cm High pressure servo digital steel gear Industry standard waterproof servo for RC Fixed Wing Climbing Car
Part No.: KM-S65S
Manufacturer: KINGMAX

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

-- High performance, digital standard servo

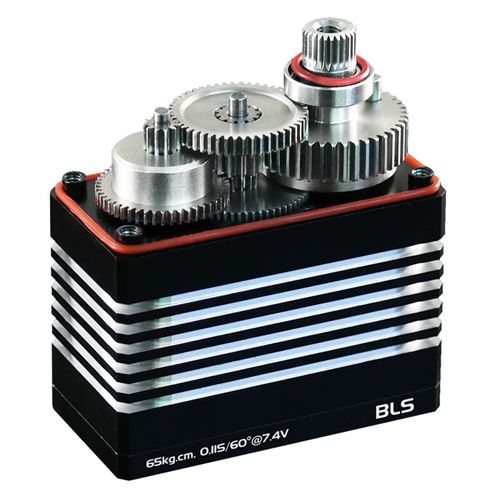

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Dual ball bearings
-- Super long life
-- Waterproof

Product Details

Item：S65S
Gear：Steel gear
Spline：25T
Motor：Brushless motor
Bearing：2BB
Dead band：2μs default
Waterproof：Yes
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequence：1520μs/330hz
Working angle：±63°@800us-2200us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃

Speed(5.0V):0.16sec/60degrees
Speed(6.0V):0.14sec/60degrees
Speed(7.4V):0.11sec/60degrees
Speed(8.4V):0.10sec/60degrees
Stall torque(7.4V):65kg.cm(902.85oz/in)
Maximum working torque(7.4V):43kg.cm(597.27oz/in)
Rated torque(5.0V):22.0kg.cm(305.58oz/in)
Rated torque(6.0V):26.0kg.cm(361.14oz/in)
Rated torque(7.4V):32.0kg.cm(444.48oz/in)
Rated torque(8.4V):35.0kg.cm(486.15oz/in

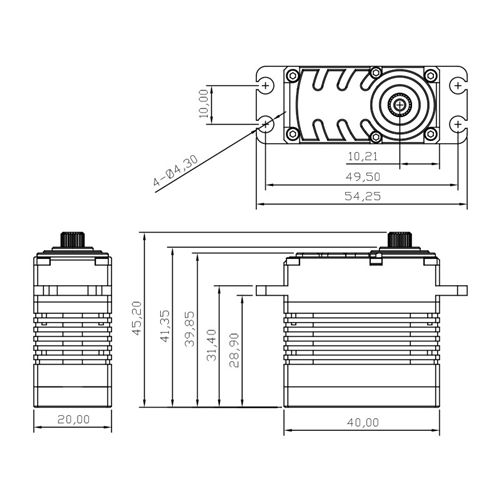

Dimensions(L*W*H):40*20*39.8mm/1.56X0.78X1.55in
Weight:89g(3.13oz)
Connector Wire Length:JR300mm(11.7in)

Transparency plastic box size: 83.5mmx63.5mmx37.5mm   weight: 141g
Carton box   size: 43x26.5x20.5cm   100sets/1CTN   Cross weight:14.55kg

Item Packing

S65S 65kg.cm standard waterproof servo x 1

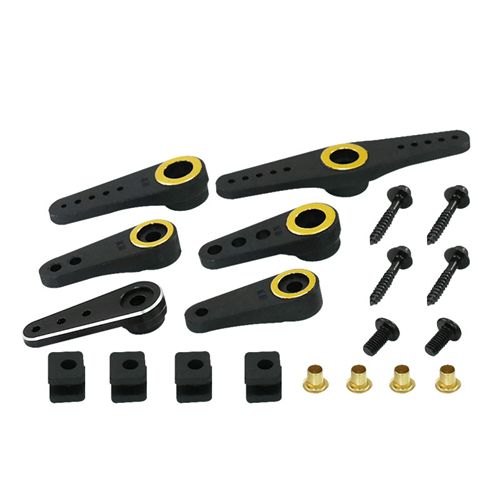

Accessories x 1

Detailed Images
