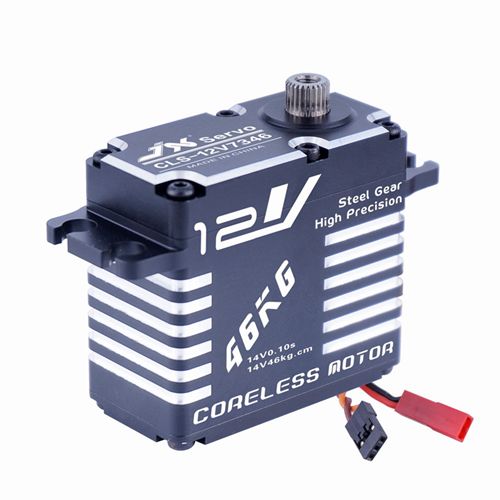

CLS-12V7346 JX Servo 46KG 12V 180 Degrees HV High Precision Steel Gear Digital Coreless Servo CNC Aluminium Shell servo
| Part No.: | CLS-12V7346 |
| Manufacturer: | JX |
Send to a friend
Features
-- 12V High voltage
-- High performance programmable digital coreless standard servo
-- High-precision Taiwan-made steel gears with hard anodizing
-- Full CNC aluminium Shell structure
-- Dual ball bearings
-- High performance programmable digital coreless standard servo
-- High-precision Taiwan-made steel gears with hard anodizing
-- Full CNC aluminium Shell structure
-- Dual ball bearings
Product Details
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (11.1V): 0.12 sec/60°
Operating Speed (14V): 0.10sec/60°
Stall Torque (11.1V): 38 kg.cm
Stall Torque (14V): 47 kg.cm
Dimensions: 40X20X37mm
Weight: 73 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Item Packing
1 x Servo
1 x Set Accessories
1 x Set Accessories
Detailed Images
