Happymodel Super200 plus upgraded industrial Servo high performance robot Servo
| Part No.: | SUPER200 |
| Manufacturer: | happymodel |
Send to a friend
Features
Product Details
Brand: Happymodel
Voltage: 12V-24V (recommended battery power, can be customized if high voltage is required)
Speed (no load): 24v about 0.46s/60°
Maximum torque: 200kg.cm
Rated torque: 70kg.cm
No-load current: <0.15A
Stall current: 24v: <11A
Input signal: PWM: 800us ~ 2200us, 50-400Hz
Operating angle range: adjustable: minimum ± about 60 °, up to about ± 300 °
Weight: 759g
Application: Industrial robot arm
Voltage: 12V-24V (recommended battery power, can be customized if high voltage is required)
Speed (no load): 24v about 0.46s/60°
Maximum torque: 200kg.cm
Rated torque: 70kg.cm
No-load current: <0.15A
Stall current: 24v: <11A
Input signal: PWM: 800us ~ 2200us, 50-400Hz
Operating angle range: adjustable: minimum ± about 60 °, up to about ± 300 °
Weight: 759g
Application: Industrial robot arm
Item Packing
200kg high torque metal servo x 1
Accessories Kit x 1
Accessories Kit x 1

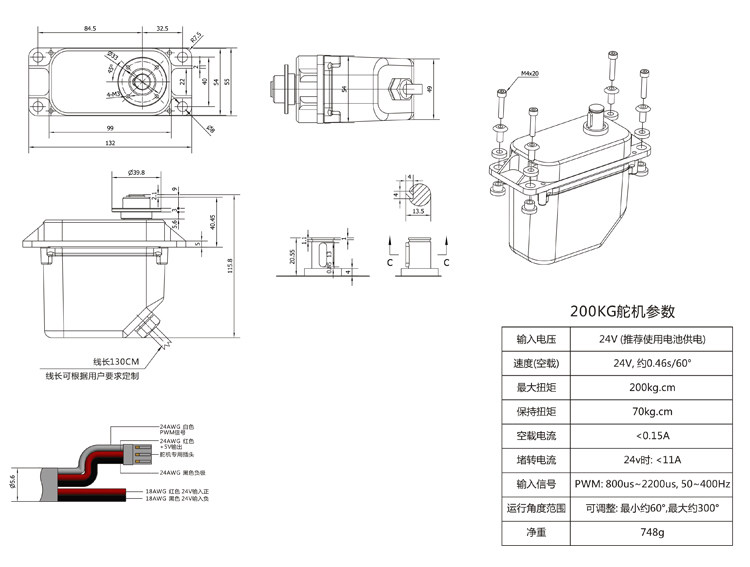

Detailed Images
