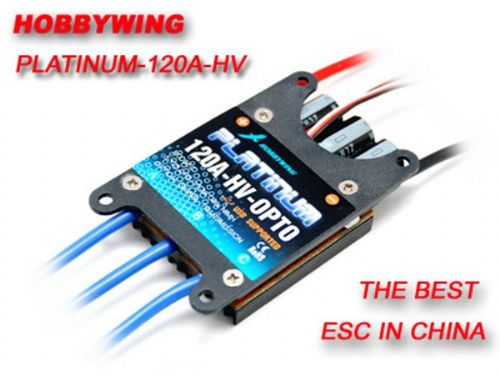

Hobbywing Platinum 120A HV PRO ESC

Hobbywing Platinum 120A HV PRO ESC
Part No.: ESC-Platinum-120A-HV-PRO
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:


Platinum-120A-HV-PRO ESC belongs to Hobbywing's "Platinum" series products line, it is the most significant top-class product for aircraft and helicopter.

1  Typical Applications

1.1 Super powerful  for 600 class helicopter (Working with 8 or 10 cells Lipo battery)

1.2 Very powerful for 700 class helicopter (Working with 10 or 12 cells Lipo battery)

1.3 Super powerful for large scale aircraft such as F3A


3.1 High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.

3.2 Wide-open heat-sink design to get the best heat dissipation effect.

3.3 With 3 types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.

3.4 Smooth, linear, quick and precise throttle response.

3.5 Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.

3.6 The throttle signal is transfered through optically coupled system to avoid the electromagnetic interference.

3.7 Perfect governor mode for helicopter.

3.8 The firmware of the ESC can be updated through the USB adapter on the Professional LCD Program Box.

3.9 User programmable. Several kinds of program methods are supported: transmitter, digital LED program card, advanced professional LCD program box, PC software. Very easy to program the ESC at home or at the flying field.


Product Details

2.1 Output:  Continuous 120A, burst 180A up to 10 seconds.

2.2 Input Voltage:  5-12 cells lithium battery or 15-36 cells NIMH battery.

2.3 BEC:  None.

2.4 Control Signal Transmission: Optically coupled system.

2.5 Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.

                               (BLM: BrushLess Motor)

2.6 Size:  88mm (L) * 55mm (W) * 15mm (H).

2.7 Weight:  125g

Item Packing

-Hobbywing Platinum 120A HV PRO ESC X 1

Detailed Images
