Red leopard LBP4282-2000KV Class Inrunner Brushless Motor for car

Red leopard LBP4282-2000KV  Class Inrunner Brushless Motor for car
Part No.: LBP4282/3D
Manufacturer: Red leopard Motor

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

-Red leopard LBP4282-2000KV Class Inrunner Brushless Motor for 1/8,1/5,truck,truggy,and muggy applications
-new design,four-pole rotor,the overall efficiency of more than 90%;
-extremely low temperature without additional heat sink can meet the vast majority of applications;
-compared to competitive products,lighter weight,higher torque;
-use of high-quality materials:aluminum alloy shell fine,high-quality magnetic steel,high temperature wire,imported high-quality bearings;
-rotor using special materials reinforced,high-speed operation under the non-burst phenomenon;
-good heat dissipation ,high overload capacity;
Low electromagnetic interference;
-minimum required electrical maintenance;
-long life

Product Details

-Model:LBP4282/3D
-Max Amps:140A
-Max Voltage:25v
-Max Power:3500W
-KV(RPM/Volt):2000KV
-Resistance:0.006
-No-load Current(7.4V)4.5A
-Diameter×Length (mm):Φ42x82
-Mounting hole depth:7mm
-Length of extend Shaft :20mm
-Shaft Diameter (mm):Φ5
-Weight:490G

Item Packing

-Red leopard LBP4282-2000KV  Class Inrunner Brushless Motor for car x 1

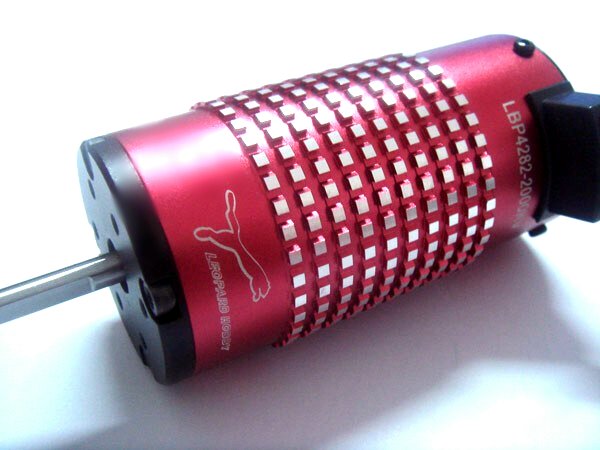

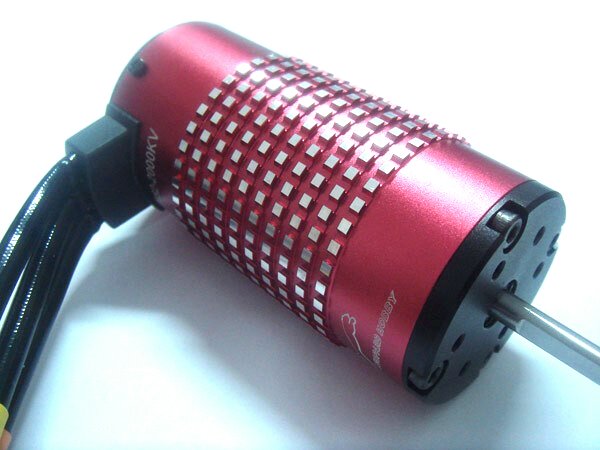

Detailed Images
