Tarot XS690 TL69A01 Sport Quadcopter Drone Controller for FPV

Tarot XS690 TL69A01 Sport Quadcopter Drone Controller for FPV
Part No.: TL69A01
Manufacturer: TAROT

Send to a friend

Your name:
Your e-mail:
Recipient's email:


 TAROT 690 SPORT Quadcopter Rack 680 series racks replacement, TAROT innovation designed by the company, with a number of patented technologies. XS690 comes standard with new electric folding tripod, electric retractable tripod controller TL8X002, its center of gravity lower and more stable large installation space optimized design, exterior design has a strong impact perspective.
    Equipped with high-strength body panels made of pure carbon fiber board processing, re-design space to provide adequate space for the installation of the flight control system. Simple motor designed for long empty seat lightweight better basis. Overall design perspective with a strong impact, provide a good visual direction for the body in the air.
    TAROT XS690 axis aircraft rack for portable users requiring high design, particularly suitable for applications monitoring, remote sensing, mapping, airborne reconnaissance, observation of fire, life exploration, cable transmission line, farm monitoring, and other mobile high performance requirements, Loading equipment is not required and a longer flight time of application fields blank.

Product Details

Not Include:

Configuration specifications:
Wheelbase Diameter: 690MM
Empty Weight: 562G
Rotor Size: 14-17 inches T series carbon fiber propeller TL2840
Brushless motor: 4006 Martin brushless motor TL2954 / 4008 Martin brushless motor TL2955
Battery Specifications: 10-15C, 14.8V -22.2V, 4000-5000MHA TL2943
Brushless ESC: 30A-40A TL2953
Accessories Reference Number:
500 special field bag / black - Enhanced TL2647
680PRO carbon fiber hood pattern TL2851
680PRO Symphony paragraph hoods TL2853
680PRO flags paragraph hoods TL2852

Item Packing

Tarot XS690 frame x 1

Canapy x 1

Skidlanding x 1

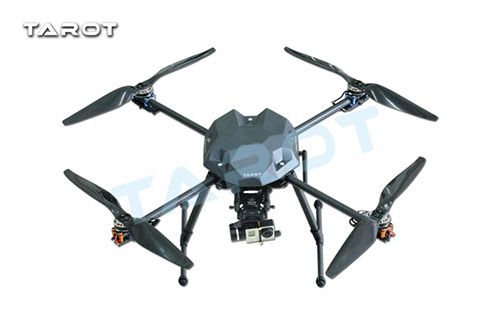

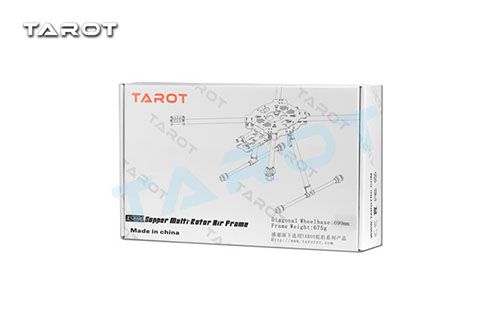

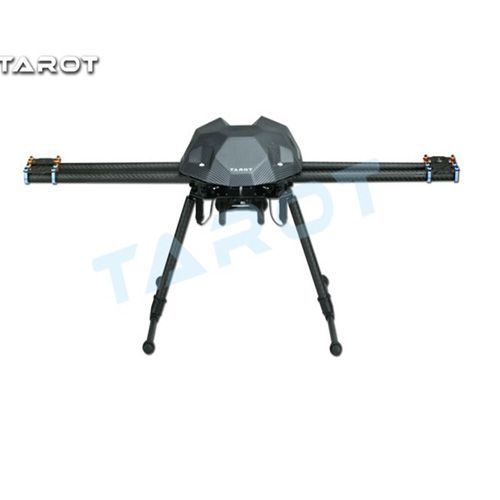

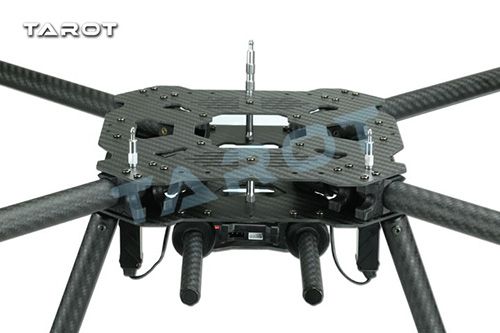

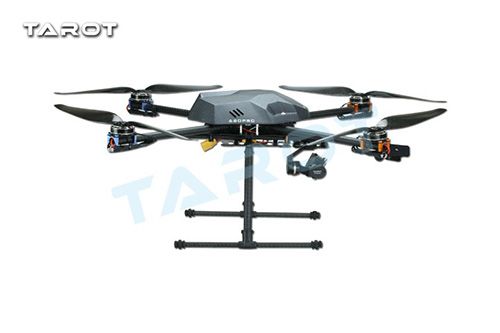

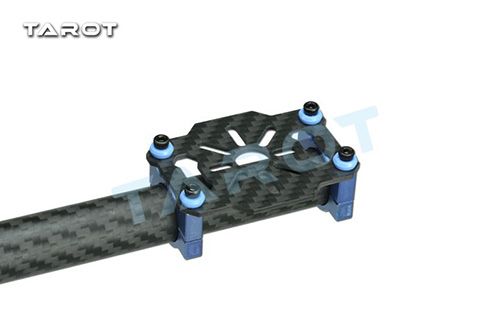

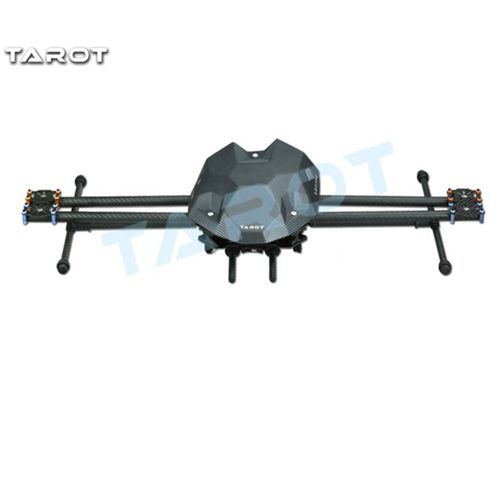

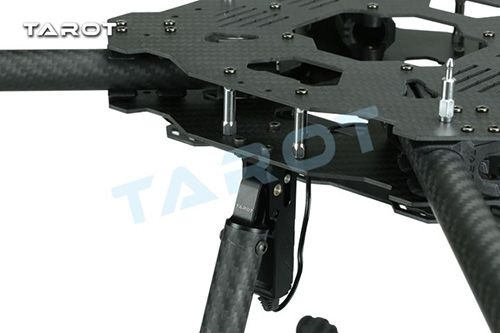

Detailed Images
