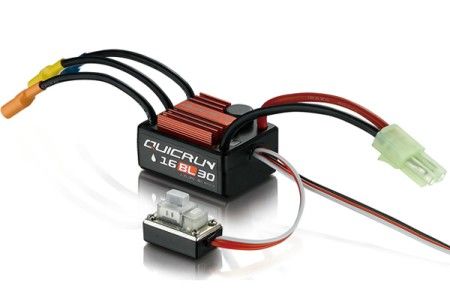

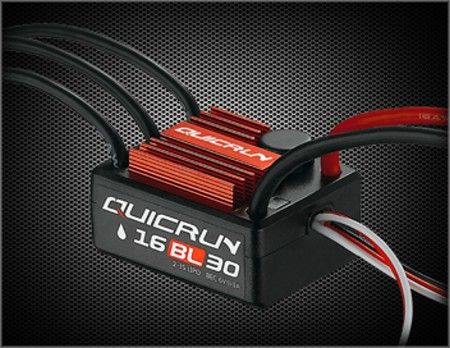

Hobbywing New Quicrun Water-proof 30A ESC

Hobbywing New Quicrun Water-proof 30A ESC
Part No.: QUICRUN-WP-16BL30
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

1.1 Water-proof and dust-proof for all-weather races.
(Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
1.2 Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
1.3 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
1.4 Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
1.5 One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
1.6 Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

Product Details

Model
QUICRUN-WP-16BL30
QUICRUN-WP-10BL60
QUICRUN-WP-8BL150
Cont./Peak Current/ Resistance
 30A/180A/0.002Ω 60A/360A/0.001Ω 150A/950A/0.00035Ω
Motor Type Supported Sensorless Brushless Motor
Car Applicable 1:18 & 1:16 On-road/Off-road/Buggy/Monster 1:10 On-road/Off-road/Buggy/Monster 1:8 Buggy/Monster
Motor Limit

For 2S Lipo or 6 cells NiMH:
1. On-road: 2435-size or smaller motor with the KV<8000
2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000

For 3S Lipo or 9 cells NiMH:
1. On-road: 2435-size or smaller motor with the KV<5500
2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500

For 2S Lipo or 6 cells NiMH:
1. On-road: 3656-size or smaller motor with the KV<6000
2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:
1. On-road: 3656-size or smaller motor with the KV<4000
2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<300

For 4S Lipo or 12 cells NiMH:
4274-size or smaller motor with the KV<3000

For 6S Lipo or 18 cells NiMH:
4274-size or smaller motor with the KV<2400

　

Battery
4-9 Cells NiMH
2-3S Lipo
4-9 Cells NiMH
2-3S Lipo
9-18 Cells NiMH
3-6S Lipo
BEC Output 6V/1A (Linear Mode) 6V/2A (Linear Mode) 6V/3A (Switch Mode)
Size/ Weight 36(L)*28(W)*16(H) / 38g 48.5(L)*38(W)*32(H) / 90g 59.5(L)*48(W)*42(H) / 178g
External Program Port Not Available Available Available
Working voltage of Fan No cooling fan From battery directly without regulating From BEC (6V)



Item Packing

-Hobbywing New Quicrun Water-proof 30A ESC X 1
