Hobbywing XRotor Micro 60A 4in1 BLHeli-32 DShot1200 ESC

Hobbywing XRotor Micro 60A 4in1 BLHeli-32 DShot1200 ESC
Part No.: XT-60A4IN1
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Highly Integrated
With a similar size of a FC, the 4IN1 ESC includes 4 high performance 60A BLHeli_32 DShot1200 ESCs,
 a 5V BEC which can provide power for devices (i.e. FC), and a voltmeter which allows FC to monitor the
 amp & volt in real time. Two ways for connecting the ESC to a FC: 1) connecting via soft cables, 2)
 soldering via solder tabs are provided for selection. And the shock-absorbing design of mounting holes
 effectively reduces the external vibration’s impact on high-sensitivity components and provides great
 shock-absorbing protection to upper devices (i.e. FC). This ESC is designed for FPV racing.

Product Details

Product Name:XRotor Micro 60A 4in1 BLHeli_32 DShot1200
Product Number:30902063
Cont./Peak Current:60Ax4/ 80Ax4
Input Voltage:3-6S Lipo
BEC output:5V & 0.6A
Wires & Connectors
Input Wires:Red-12AWG-130mm/ Black-12AWG-130mm
Output Wires:No wires but solder tabs
Input Connectors:XT60(w/ Wires Soldered on)
Output Connectors:No
Firmware:Hobbywing_XRotor_BLHeli-32 Firmware
ESC Programming:BLHeliSuite32
Stick Programming:Supported
DEO:Supported
Throttle Range Calibration:Supported
Oneshot125 Mode:Supported
Oneshot42 Mode:Supported
MultiShot Mode:Supported
DShot150/300/600/1200:Supported
Timing:Supported
Motor Rotation:Supported
Size:52x42x6.6mm
Weight:15g
Applications:130-300mm FPVs

(Note: All the wire length above is the original length not the length you see from the outside.)

Item Packing

Hobbywing XRotor Micro 60A 4in1 BLHeli-32 DShot1200 ESC x 1

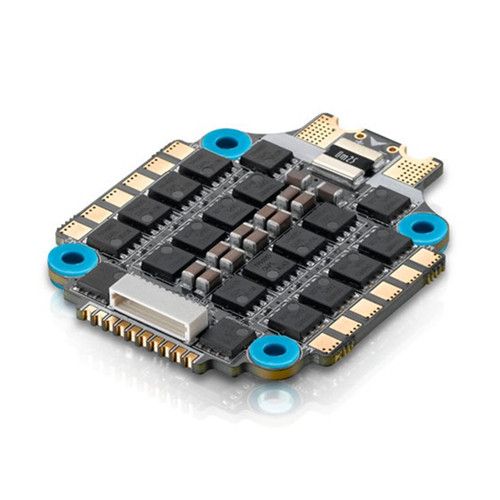

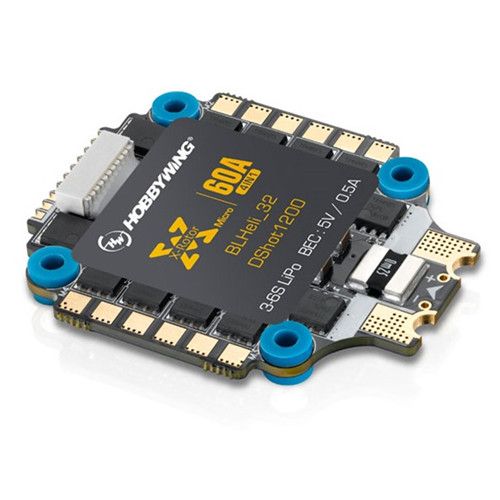

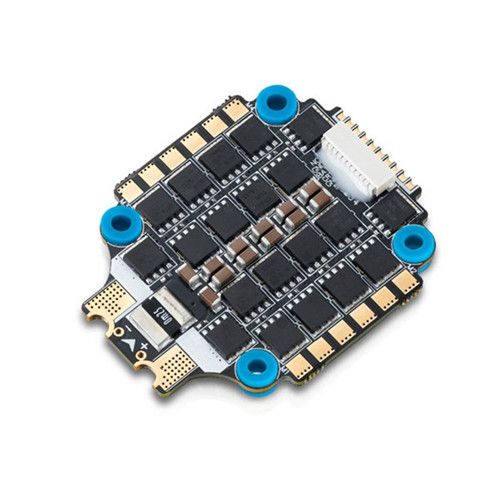

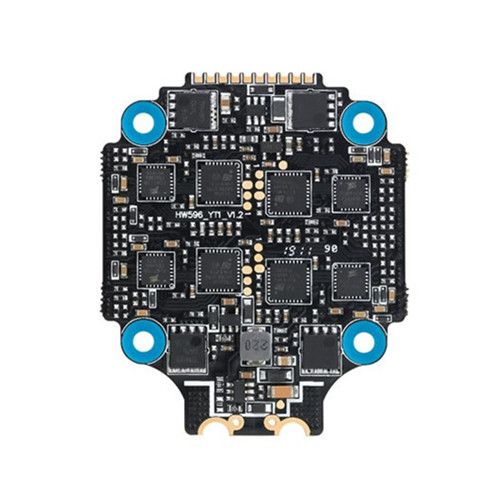

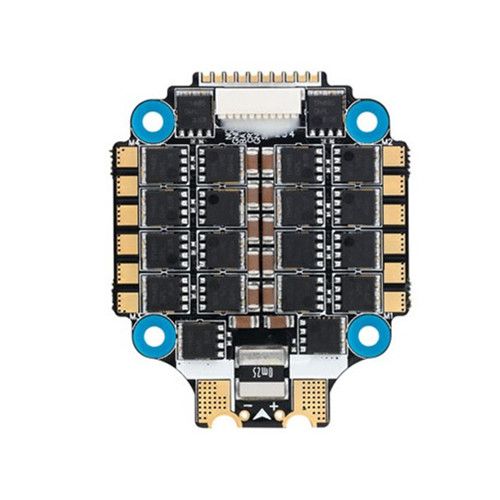

Detailed Images
