CUAV 4G LTE-LINK SE Data Telemetry Video Transmission Data Link Support Mavlink Protocol Flight Controller

CUAV 4G LTE-LINK SE Data Telemetry Video Transmission Data Link Support Mavlink Protocol Flight Controller
Part No.: LTE-LINK-SE
Manufacturer: CUAV

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

The LTE 4G network data transmission and image transmission integrated link developed by CUAV can be connected to the CUAVCloud system and supports CUAV GS Android ground station and FeiGongTransmission. Through FeiGongTransmission, MissionPlanner and QGroundControl can also be used. 1080P HD image transmission, the ideal environment can be as low as 250ms, and the data transmission delay is 60ms.

Unlimited interconnection
Relying on the advanced 4G communication network, the anti-interference ability is strong, the data security level is high, and the area covered by the 4G signal can communicate. The client operates the drone without the limitation of distance and area, realizing the real drone networking.

HD 1080P image transmission, 250ms low latency

Flight video auto save
Built-in memory card, the aircraft will automatically record after the flight takes off and save the original video in the memory card for you to view at any time.

Product Details

Product Performance
* Network Frequency
  LTE (FDD): B1、B3、B8
  LTE (TDD): B38、B39、B40、B41
  DC-HSPA+/HSPA+/HSPA/UMTS : B1、B5、B8、B9
  TD-SCDMA: B34、B39
  EDGE/GPRS/GSM : 900/1800 MHz
* Network Rate
  DC-HSPA+: Download:42 Mbps uploda: 5.76 Mbps
  LTE TDD: Downlaod:112Mbps uploda: 10Mbps
  LTE FDD: Downlaod:150 Mbps uploda: 50 Mbps
* Autopilot: CUAV Autopilot,Pixhawk etc
* Data protocol: Mavlink1、Mavlink2
* Video input: 1080P、720P
* Video output: 1080P、720P、480P、320P
* Video codec: H265
Interface
* Video input: HDMI

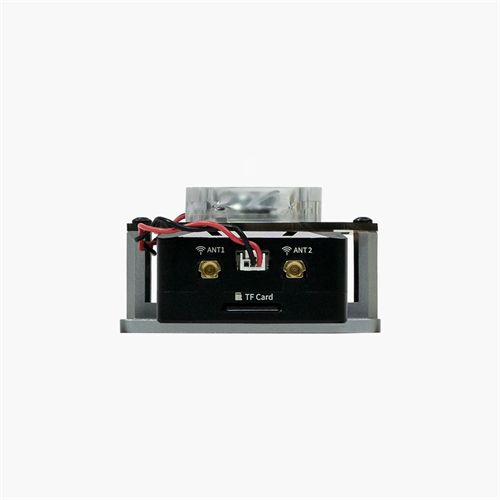

* Antenna interface: MMCX
* Device screen: OLED 128*64DPI
Work Environment
* Voltage input: 12 - 55V
* Temperature: -10 - +60°C
Appearance Size
* Size: 75.3mmX39.2mmX19mm
* Weight: 78g

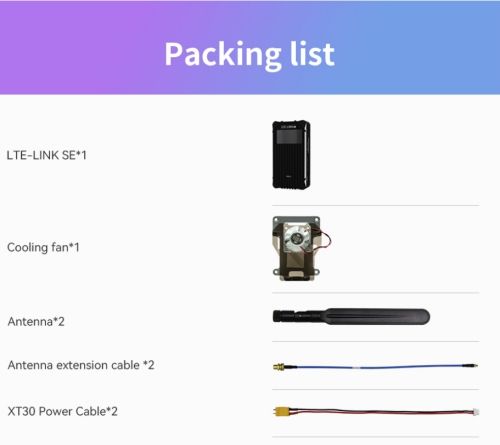

Item Packing

LTE-LINK SE * 1

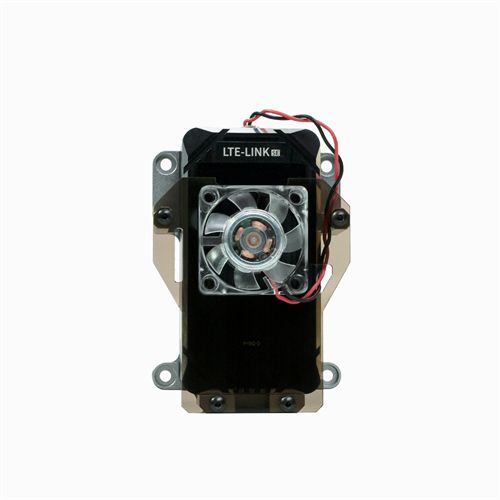

Cooling fan * 1
Antenna * 2
Antenna extension cable * 2
XT30 Power Cable * 2

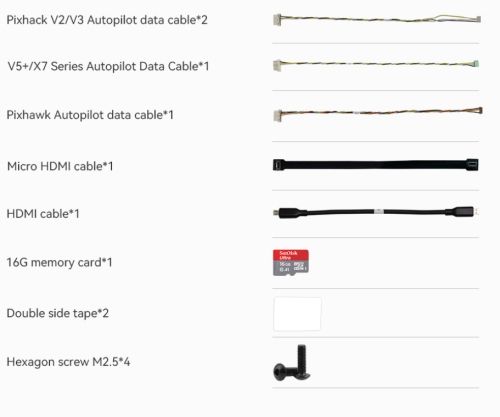

Pixhack V2 / V3 Autopilot data cable * 2
V5 + / X7 Series Autopilot Data Cable * 1
Pixhawk Autopilot data cable * 1
Micro HDMI cable * 1
HDMI cable * 1
16G memory card * 1
Double side tape * 2
Hexagon screw M2.5 * 4

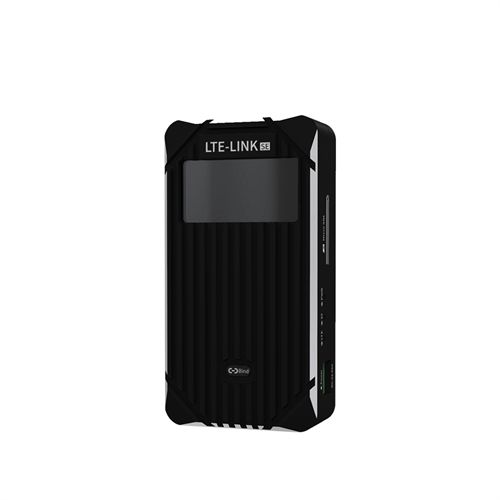

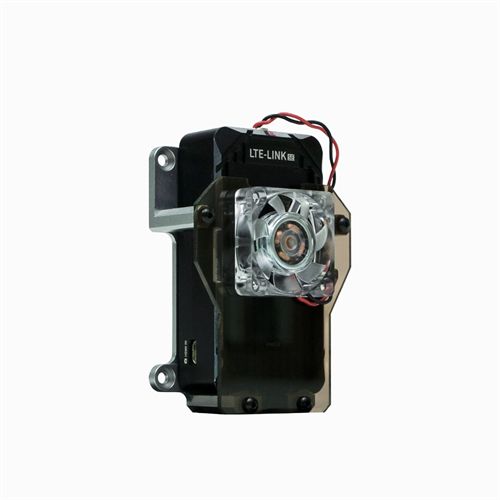

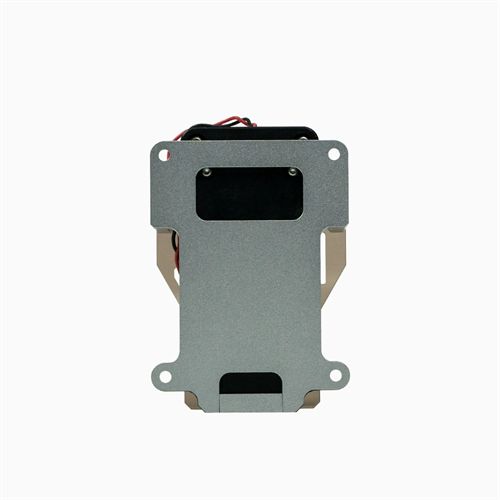

Detailed Images
