Pixhawk PX4 Flight Controller Power Module (PM07)
| Part No.: | QA584 |
| Manufacturer: | Feixiang |
Send to a friend
Features
The Power Management Board (PM Board) serves the purpose of a Power Module as well as a Power Distribution Board. In addition to providing regulated power to Pixhawk 4 and the ESCs, it sends information to the autopilot about battery’s voltage and current supplied to the flight controller and the motors.
Product Details
Pixhawk PX4 Flight Controller Power Module (PM07)
PCB Current: total 120A outputs (MAX)
UBEC 5v output current :3A
UBEC input voltage : 7~51v (2~12s LiPo)
Dimensions:68*50*8 mm
Mounting Holes:45*45mm
Weight: 36g

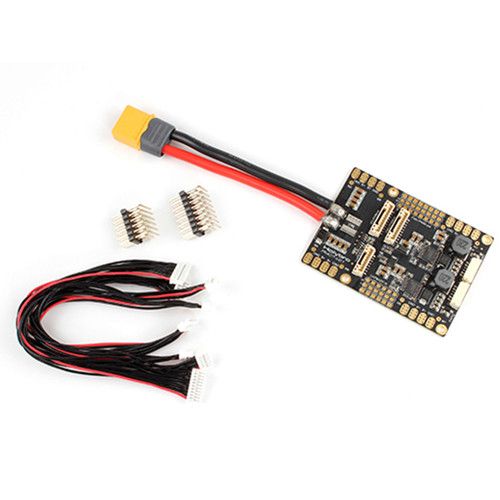

Item Packing
PM07 board x 1
80mm XT60 connector wire x 1
80mm XT60 connector wire x 1

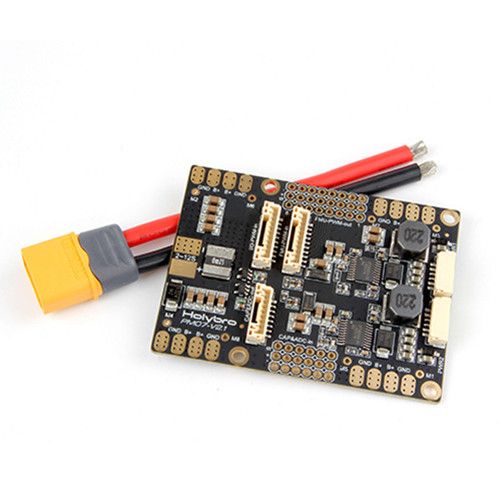

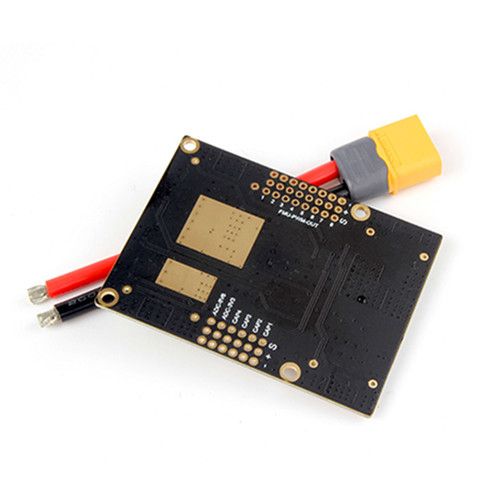

Detailed Images
